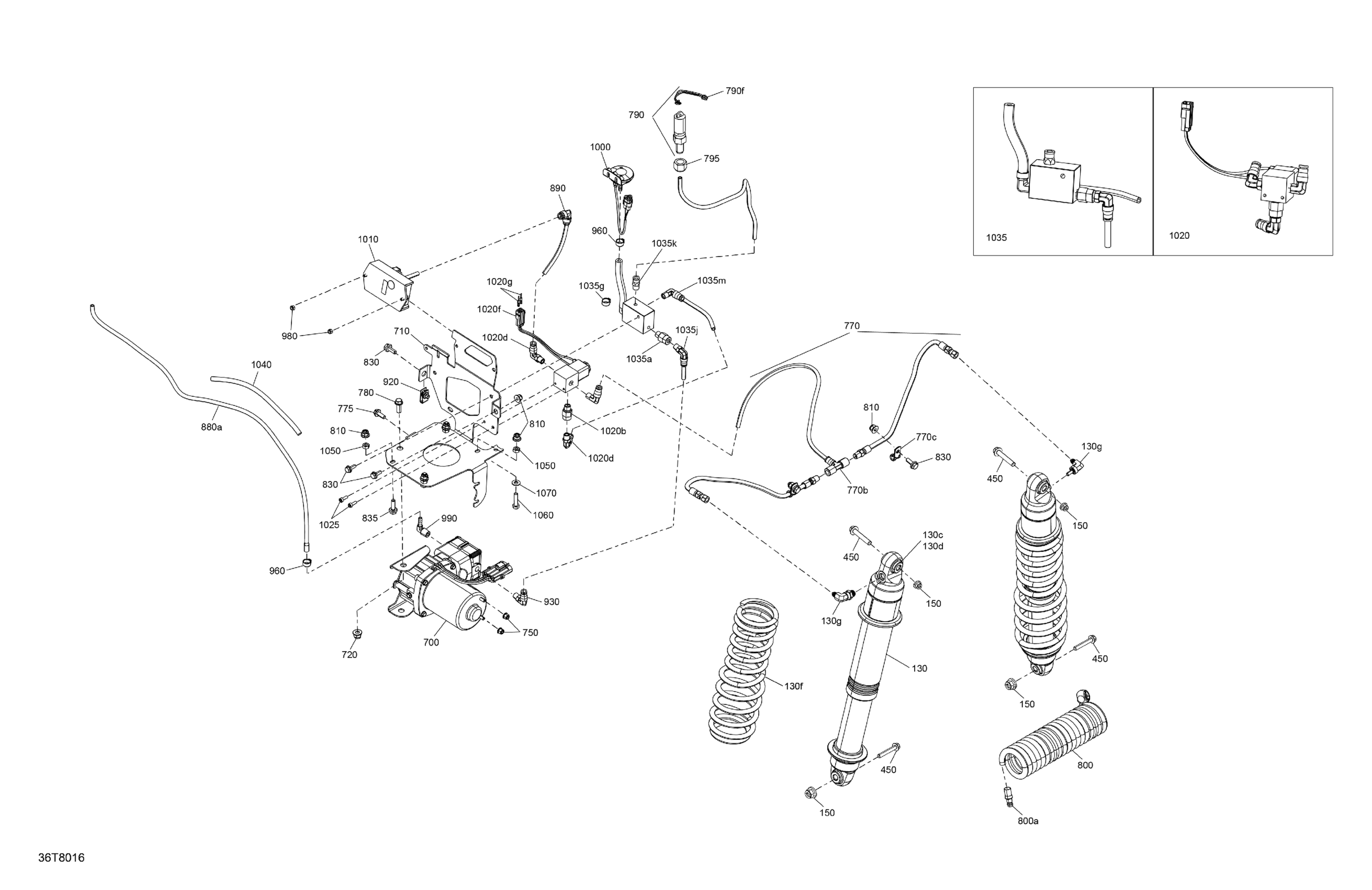

Can-Am OUTLANDER MAX - 4X4 - LTD - 1000R - 5WJA - Midnight Blue, 2018 Suspension - Rear Shocks Diagram

Description

Price

130

Rear Shock | LTD

706000930

$418.43

130c

Interior Bushing | XTP

715900210

$14.75

130d

O-Ring Bushing

715900209

$13.52

130f

Black Rear Spring

706002785

Unavailable

130g

Elbow 90° | XMR

706001200

$46.12

150

Hex. Flange Elastic Nut M10

233201436

$1.74

450

Hex. Flange Screw M10 X 6

207606046

$3.38

700

Compressor Ass'y

706000964

$858.43

710

Bracket | Package LTD

706002114

$73.82

720

Hex. Flange Elastic Nut M10

233201414

$1.26

750

Hex. Flange Elastic Nut M5

233251414

$1.66

770

Rear Shock Distributor

706002020

$207.66

770b

T Fitting

706000946

$36.89

770c

Clamp

705601636

$6.92

775

Hex. Flange Screw M6 X 16

210261650

$1.22

780

Hex. Flange Screw M10 X 25

250001054

$12.48

790

Inflater Ass'y | Package LTD

706001827

$87.66

790f

O-Ring

414811400

$6.34

795

Hex. Nut With Nylon 1/2" X 20

250100124

$7.28

800

Auxiliary Hose

706000808

$101.51

800a

Adapter

706000810

Unavailable

810

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

830

Hex. Flange Screw M6 X 16

207661644

$0.61

835

Hex. Flange Screw M6 X 20

207662044

$1.66

880a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

890

Hose Ass'y

706002015

$36.89

920

Panel Nut M6 X 1.0

250100198

$1.73

930

Elbow 90°

706000928

$26.12

960

Clamp Oetiker

293650207

$11.66

980

Elastic Stop Nut M4

232541414

$0.48

990

Elbow 90°

706001405

$17.66

1000

Air Suspension Sensor

710001825

$179.97

1010

Calibrated Module | LTD

710004405

$384.99

1020

Pressure Collector Ass'y

706002014

$364.58

1020b

Connector

706000869

$33.05

1020d

Elbow 90°

706000928

$26.12

1020f

Male Terminal

515175232

$1.49

1020g

Male Terminal Housing, 2 Circuits

515175654

$7.48

1025

Socket Head Screw M4 X 12

205041254

$2.02

1035

Hose Ass'y

706002012

$152.28

1035a

Check Valve

706000860

$39.97

1035g

Clamp Oetiker

293650207

$11.66

1035j

Elbow 90°

706000928

$26.12

1035k

Connector

706000869

$33.05

1035m

Elbow 90°

706000872

$26.89

1040

Protector Tube

504153074

$15.35

1050

Hex. Nut M6

232061414

$0.44

1060

Hex. Screw M6 X 25

207162544

$1.05

1070

Flat Washer

224061121

$0.44
