Partiron

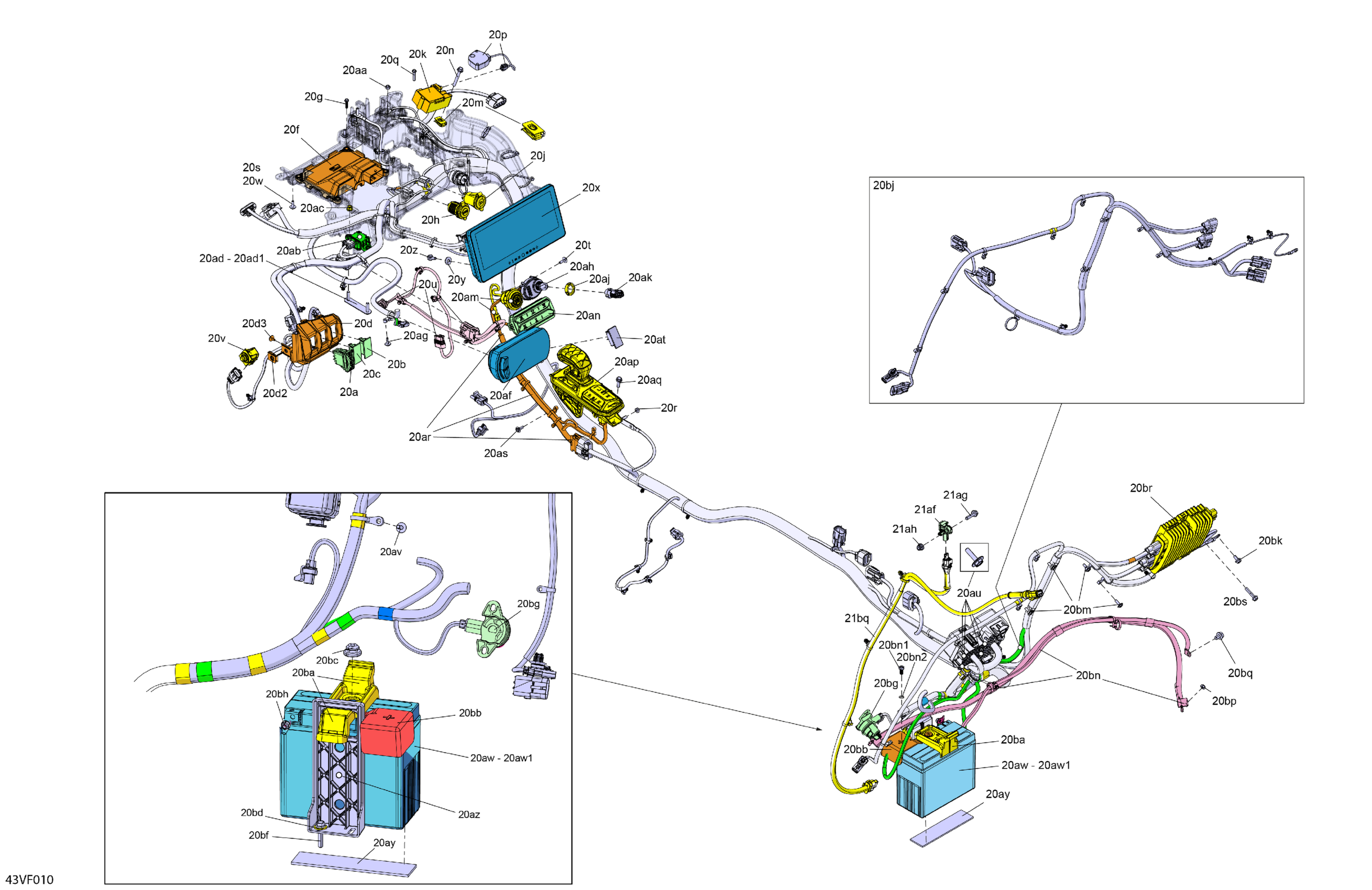

Can-Am International - Maverick R Max - 996NT2 - XRS SAS - 7DTL - Dusty Navy Satin - 77" Width, 2026 Electric - Central Electric Diagram

#

Description
Price

20a

Light Switch

710007663

$44.00

20b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

20c

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

20d

Switch Support Ass'y | Includes 20d to 20d3

710009476

$15.64

20d2

Panel Nut M6 X 1.0

250100208

$1.07

20d3

Plastite Screw M4 X 10

250000805

$1.74

20f

BCM Moldule OPT #1

710010598

$939.99

20g

Hex. Flange PT Screw K50 X 20

241152040

$1.74

20h

USB Outlet

219400510

$40.92

20j

12V Power Outlet

710005374

$27.27

20k

Radio Frequency Module

515179191

$358.18

20m

Panel Nut M6 X 1.0

250100208

$1.07

20n

Hex. Flange Screw

207664554

$1.73

20p

Radio Frequency Antenna

515179821

$114.15

20q

Hex. Flange Screw K50 X 25

250000680

$1.67

20r

Elastic Stop Nut M6, Brass

232561200

$3.51

20s

Screw PT Type K-50 X 16

250000959

$1.74

20t

Screw PT Type K-50 X 16

250000959

$1.74

20u

Accelerator Pedal Wiring Harness

710008927

$205.94

20v

Door Switch

710010023

$68.63

20w

Screw PT Type K-50 X 16

250000959

$1.74

20x

Multifunction Gauge 10

710010375

$2,012.66

20y

Stainless Steel Flat Washer

234062670

$1.74

20z

Hex. Flange Screw M6 X 16

207661644

$0.61

20aa

Elastic Stop Nut M6, Brass

232561200

$3.51

20ab

Inertial Sensor

710010113

$370.87

20ac

Hex. Flange Elastic Nut M6

233261494

$1.26

20ad

Sensor Support | Includes 1825 to 1825a

710009676

$14.49

20ad1

Sensor Support ED

710009651

$14.49

21af

Sensor

710009009

$62.66

21ag

Hex. Flange Screw M6 X 25

207662554

$1.43

21ah

Hex. Flange Elastic Nut M6

233261494

$1.26

20af

Multifunction Compact Gauge

710008298

$347.73

20ag

Screw M4 X 16

250000725

$2.87

20ah

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

20aj

Specialized Nut

278004274

$2.72

20ak

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

20am

Start-Stop Button | Not Shown

710005213

$55.94

20an

Multifunction Switch

710010054

$117.88

20ap

Electronic Gear Shift Lever

710007338

$290.27

20aq

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

20ar

Console Wiring Harness

710010955

$85.04

20as

Screw PT Type K-50 X 16

250000959

$1.74

20at

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

20au

Screw M4 X 16

250000725

$2.87

20av

Screw PT Type K-50 X 16

250000959

$1.74

20aw

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

20aw1

Battery Bolt Kit

250000282

$2.95

20bn1

Screw | Not Shown

710009084

$1.48

20bn2

Washer | Not Shown

710009082

$0.99

20ay

Rubber Pad

293830126

$11.01

20az

Fixation Plate

710004788

$9.48

20ba

Battery Support

710009128

$6.72

20bb

Battery Cable Cap

710006471

$2.59

20bc

Stopper Rubber

705014429

$6.09

20bd

Flat Washer 6 mm

234062410

$0.64

20bf

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

20bg

Starter Relay

278003012

$35.07

20bh

Elastic Stop Nut M6, Brass

232561200

$3.51

20bj

Junction Wiring Harness

710010719

$801.46

20bk

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

20bm

Screw PT Type K-50 X 16

250000959

$1.74

21bq

Junction Wiring Harness

710008618

$391.76

20bn

Starter Wiring Harness

710010036

$64.15

20bp

Elastic Stop Nut M6, Brass

232561200

$3.51

20bq

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

20br

Voltage Regulator

710007558

$335.04

20bs

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74
