Mechanic - Steering

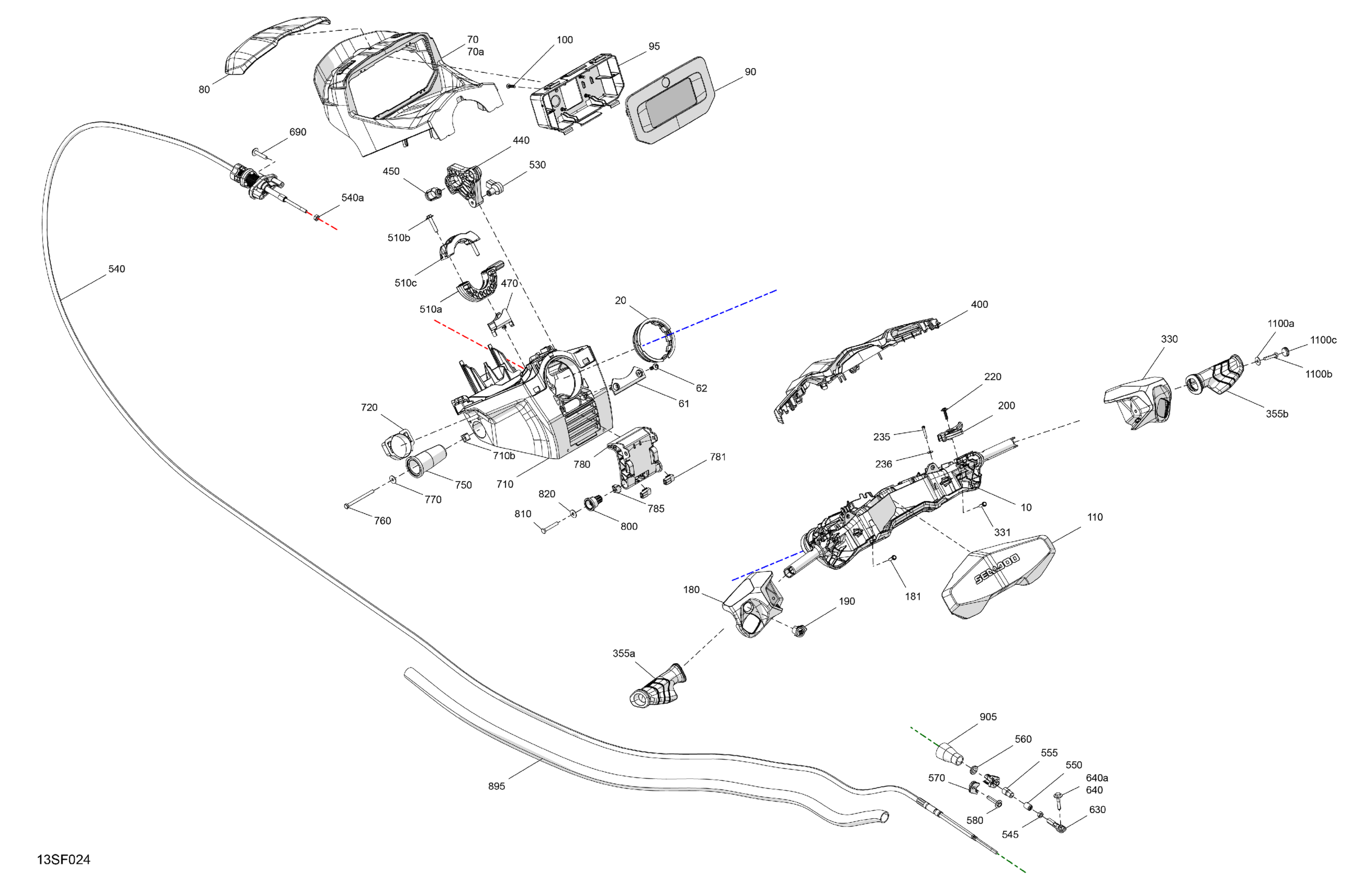

Sea-doo International - GTX PRO - 130 - (Rental) - 25TB - Bright White, 2026 Mechanic - Steering Diagram
#
10
Steering Column
277002134
Unavailable
20
Wear Ring
277001874
Unavailable
61
Damper Cover Support
277002426
Unavailable
62
Plastite Torx Screw Cone HD.M6.81X2
250001171
Unavailable
70
Gauge Support | Includes 70 to 70a
277002417
Unavailable
70a
Gauge Support
277002198
Unavailable
80
Cluster Cover
277002160
Unavailable
90
Speed Gauge Trim
705015356
Unavailable
95
Gauge Housing
705015357
Unavailable
100
Hex. Flange PT Screw K50 X 20
241152040
Unavailable
110
Deep Black, Handlebar Trim
277002239
Unavailable
180
LH Cover
277002233
Unavailable
181
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
190
Red Button Switch
277002327
Unavailable
200
Hand Lever Accelerator
277002138
Unavailable
220
Flange Screw Plastite #10, 14 X 7/8"
250001087
Unavailable
235
Hex. Flange Screw K40 X 25
241142560
Unavailable
236
Flat Washer 4 mm, Stainless
234042600
Unavailable
330
RH Cover
277002236
Unavailable
331
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
355a
LH Handlebar Grip
277002102
Unavailable
355b
RH Handlebar Grip
277002101
Unavailable
400
Steering Cover - No IBR
277002066
Unavailable
440
Steering Arm Kit
295501183
Unavailable
450
Steering Arm Kit
295501183
Unavailable
470
Spacer
277001654
Unavailable
510a
Arm
277001987
Unavailable
510b
Hexagonal Cap Screw M6 X35
250000399
Unavailable
510c
C Clamp
277002085
Unavailable
530
End Fitting Cable
277002119
Unavailable
540
Steering Cable | Includes 540 to 540b
277002448
Unavailable
540a
Hex. Nut 1/4"-28
211100056
Unavailable
540b
Wiper Rod
277001582
Unavailable
545
Hex. Nut 1/4"-28
211100056
Unavailable
550
Wiper Rod
277001582
Unavailable
555
End Piece
277001583
Unavailable
560
Rubber Washer
293830063
Unavailable
570
Ring Halves
277001856
Unavailable
580
Hexagonal Cap Screw M6 X35
250000399
Unavailable
630
Ball Joint
277000775
Unavailable
640
Hex Sems Screw M6X35
250000970
Unavailable
640a
Hex Screw SEMS M6X35, SS
250000969
Unavailable
690
Hexagonal Cap Screw M6 X35
250000399
Unavailable
710
Steering Column Support Ass'y | Includes 710 to 710b
277002307
Unavailable
710b
Nut Housing M6 | Includes 555 to 555b
269502544
Unavailable
720
Wear Ring
277002318
Unavailable
750
Steering Support Pivot
277001605
Unavailable
760
Hex Screw M6 X 80
207168060
Unavailable
770
Flat Washer M6, Stainless
234062600
Unavailable
780
Adjustment Handle
277001996
Unavailable
781
Stopper
293830208
Unavailable
785
Nut Housing M6 | Includes 555 to 555b
269502544
Unavailable
800
Pivot
277001652
Unavailable
810
Hex. Screw M6 X 40
207064060
Unavailable
820
Flat Washer M6, Stainless
234062600
Unavailable
895
Corrugated Sheath 22MM - 1250MM
276000520
Unavailable
905
Rope Guide
277002150
Unavailable
1100a
Flat Washer M6, Stainless
234062600
Unavailable
1100b
Hex. Screw M6 x 45, Scotch Grip
207364560
Unavailable
1100c
Black, Cap
277000203
Unavailable
