Description

Price

10

Steering Column

277002356

$203.05

20

Wear Ring

277001874

$9.74

60

Damper | Includes 60 to 60r

506153410

$263.05

60n

Socket Head Screw M4 X 16

250001237

$9.94

60q

Sealing Washer

250200114

$3.61

60r

Flat Washer 4 mm, Stainless

234042600

$0.92

61

Damper Cover Support

277002426

$5.52

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

65

Torx Truss Screw M6 X 16

250000922

$1.56

70

Gauge Support

277002299

$35.72

110

Deep Black, Handlebar Trim | Includes 110 to 110a

277002247

$40.92

110a

Deep Black, Handlebar Trim

277002239

$12.47

180

LH Front Lever Trim Ass'y | Includes 180 to 180a

277002390

$383.05

180a

LH Front Trim Lever - Trim

277002353

$96.89

181

Hex. Screw 10-14 X 7/8”

211000023

$2.91

190

Red, Switch Button

277002368

$11.06

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

330

RH Front Lever Trim Ass'y | Includes 330 to 330a

277002394

$383.05

330a

RH Front Trim Lever - Trim

277002354

$96.89

331

Hex. Screw 10-14 X 7/8”

211000023

$2.91

355a

Deep Black, LH Handle Grip

277001958

$15.57

355b

Deep Black, RH Handle Grip

277001946

$15.57

400

Upper Handlebar Trim

277002357

$64.58

440

Steering Arm Kit

295501183

$7.01

450

Steering Arm Kit

295501183

$7.01

470

Spacer

277001654

$11.40

510a

Arm

277001987

$7.01

510b

Hexagonal Cap Screw M6 X35

250000399

$3.61

510c

C Clamp

277002085

$7.19

530

End Fitting Cable

277002119

$16.87

540

Steering Cable | Includes 540 to 540b

277002448

$223.57

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

640a

Hex Screw SEMS M6X35, SS

250000969

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$90.32

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.55

770

Flat Washer M6, Stainless

234062600

$0.64

780

Adjustment Handle

277001996

$7.05

781

Rubber Bumper

293830005

$5.33

785

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

790

Lock

277002010

$5.04

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

905

Rope Guide

277002150

$0.75

1100a

Flat Washer M6, Stainless

234062600

$0.64

1100b

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

1100c

Black, Cap

277000203

$7.48

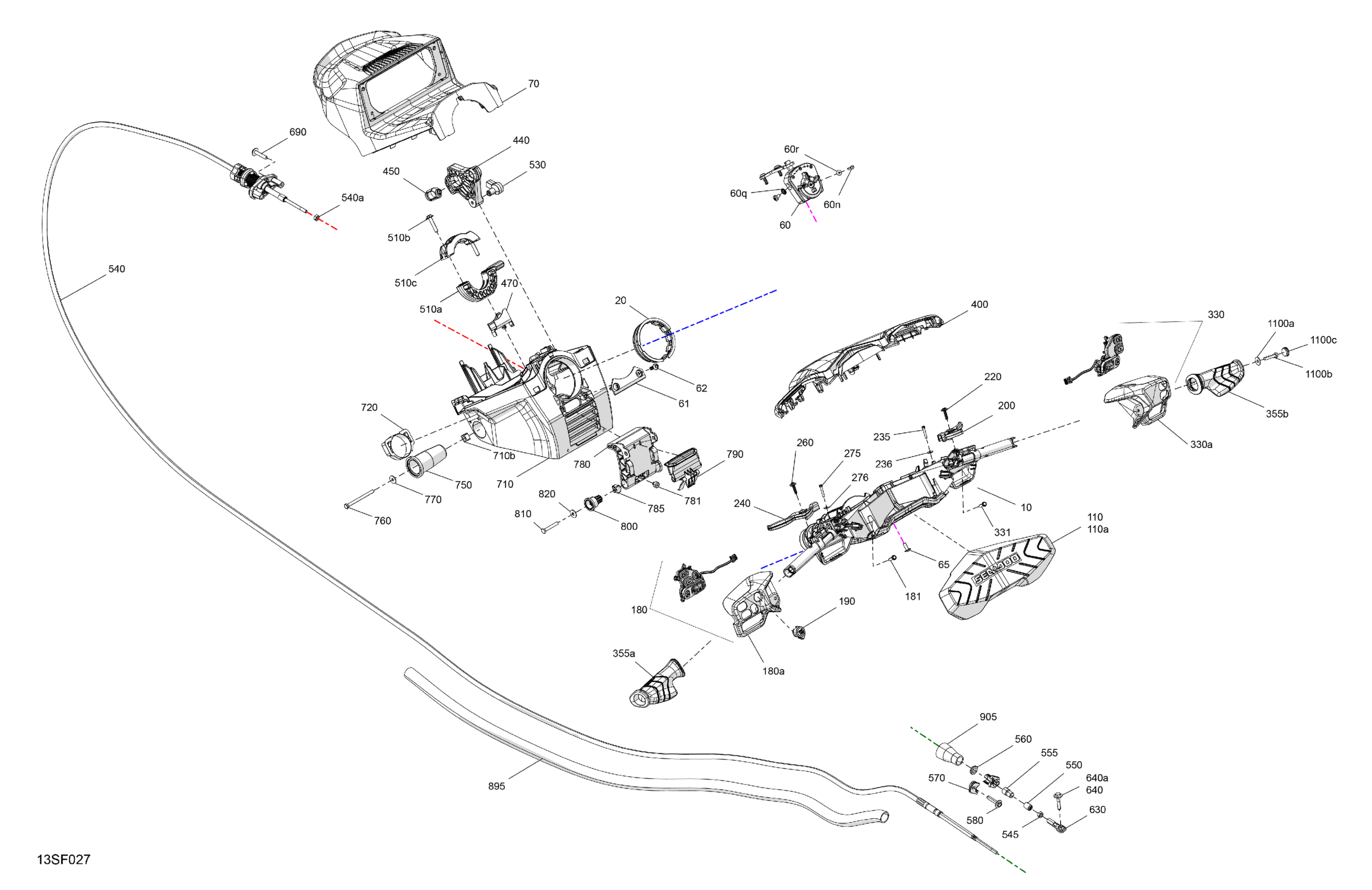

Sea-doo International - GTX - 325 - LIMITED - 26TA - Hybrid White Peal - Audio, 2026 Mechanic - Steering Diagram
