Description

Price

10

Outer Skin

269502394

$182.06

11

Hexagonal Cap Screw M6 X35

250000399

$4.15

15

Inner Skin

269502555

$151.46

30

LH Latch

269502267

$27.58

31

Pin

269502536

$14.90

32

Latch Spring

269502268

$23.85

33

Rubber Bumper

293830005

$6.12

35

RH Latch

269502299

$27.58

36

Pin

269502536

$14.90

37

Latch Spring

269502268

$23.85

38

Rubber Bumper

293830005

$6.12

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$90.27

150b

Shock Absorber End Fitting

269501984

$10.19

200

RH Mirror Glass

269502276

$82.81

210

Deep Black, RH Mirror Cover

269502428

$49.97

215

Hex. Screw 10-14 X 7/8”

211000023

$3.34

220

LH Mirror Glass

269502274

$82.81

230

Deep Black, LH Mirror Cover

269502427

$49.97

300

Rubber Bumper

293830005

$6.12

310

Rubber Bumper

293830005

$6.12

400

LH Latch Base

269502385

$15.64

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

420

RH Latch Base

269502386

$15.64

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

500

Deep Black, Upper Hood

269502446

$108.93

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

700

Shock Base

269502282

$23.10

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1000

Bin Compartment

264000144

$109.67

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

1020

Gasket

293250478

$11.87

1050

Adjustment Hook

269502325

$8.21

1130

Strap

269502493

$13.24

1500

Glove Box Door

264000132

$58.93

1510

Glove Box Latch

264000133

$17.88

1517

Screw K40 X 10

250001119

$1.88

1520

Cover Gasket

293250717

$26.84

1550a

Glove Box Trim

269502538

$17.13

1550b

Tuflok Plastic Rivet

293150230

$1.39

1600

Box Cover

264000158

$11.72

1610

Clip

269501718

$14.90

1620

Gasket

293250591

$14.46

1640

USB Plug

269502324

$2.75

1650

Sealed Compartment Foam

264000135

$10.58

1675

Vent Membrane

264000137

$10.37

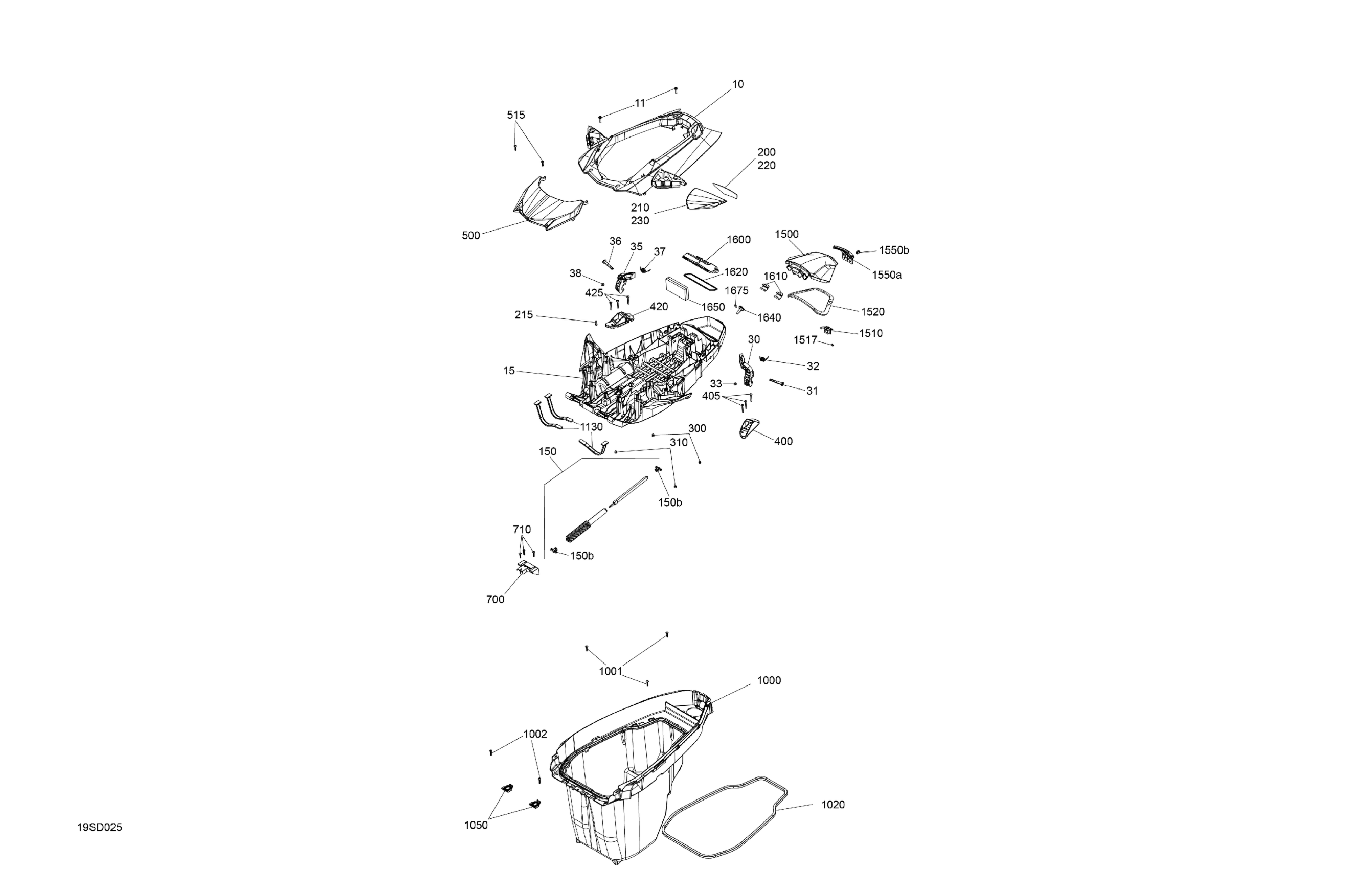

Sea-doo International - GTX 170 - 11RB - STD package - Blue Abyss,2024 Body - Front Cover Diagram

Outer Skin

Hexagonal Cap Screw M6 X35

Inner Skin

LH Latch

Pin

Latch Spring

Rubber Bumper

RH Latch

Pin

Latch Spring

Rubber Bumper

Shock Absorber Assembly | Includes 150 to 150b

Shock Absorber End Fitting

RH Mirror Glass

Deep Black, RH Mirror Cover

Hex. Screw 10-14 X 7/8”

LH Mirror Glass

Deep Black, LH Mirror Cover

Rubber Bumper

Rubber Bumper

LH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

RH Latch Base

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

Deep Black, Upper Hood

Plastite Screw Torx Cone HD.M6.81X3

Shock Base

Plastite Torx Screw M6.81X30 | Not Shown

Bin Compartment

Plastite Screw Torx Cone HD.M6.81X3

Plastite Torx Screw M6.81X30 | Not Shown

Gasket

Adjustment Hook

Strap

Glove Box Door

Glove Box Latch

Screw K40 X 10

Cover Gasket

Glove Box Trim

Tuflok Plastic Rivet

Box Cover

Clip

Gasket

USB Plug

Sealed Compartment Foam

Vent Membrane
