Description

Price

10

Steering Column

277002134

$163.12

20

Wear Ring

277001874

$9.74

61

Damper Cover Support

277002426

$5.52

62

Plastite Torx Screw Cone HD.M6.81X2

250001171

$4.39

70

Gauge Support | Includes 70 to 70a

277002417

$41.51

70a

Gauge Support

277002198

$35.72

80

Cluster Cover

277002160

$20.77

90

Speed Gauge Trim

705015356

$6.72

95

Gauge Housing

705015357

$22.07

100

Hex. Flange Screw K50 X 20

241152060

$1.57

110

Deep Black, Handlebar Trim

277002239

$12.47

180

LH Cover

277002233

$13.62

181

Hex. Screw 10-14 X 7/8”

211000023

$2.91

190

Red Button Switch

277002327

$7.46

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

330

RH Cover

277002236

$13.62

331

Hex. Screw 10-14 X 7/8”

211000023

$2.91

355a

LH Handlebar Grip

277002102

$15.57

355b

RH Handlebar Grip

277002101

$15.57

400

Steering Cover

277001985

$53.27

440

Steering Arm Kit

295501183

$7.01

450

Steering Arm Kit

295501183

$7.01

470

Spacer

277001654

$11.40

510a

Arm

277001987

$7.01

510b

Hexagonal Cap Screw M6 X35

250000399

$3.61

510c

C Clamp

277002085

$7.19

530

End Fitting Cable

277002119

$16.87

540

Steering Cable | Includes 540 to 540b

277002448

$223.57

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

640a

Hex Screw SEMS M6X35, SS

250000969

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support Ass'y | Includes 710 to 710b

277002307

$90.32

710b

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.55

770

Flat Washer M6, Stainless

234062600

$0.64

780

Adjustment Handle

277001996

$7.05

781

Stopper

293830208

$7.37

785

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

905

Rope Guide

277002150

$0.75

3920

Flat Washer M6, Stainless

234062600

$0.64

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

3940

Black, Cap

277000203

$7.48

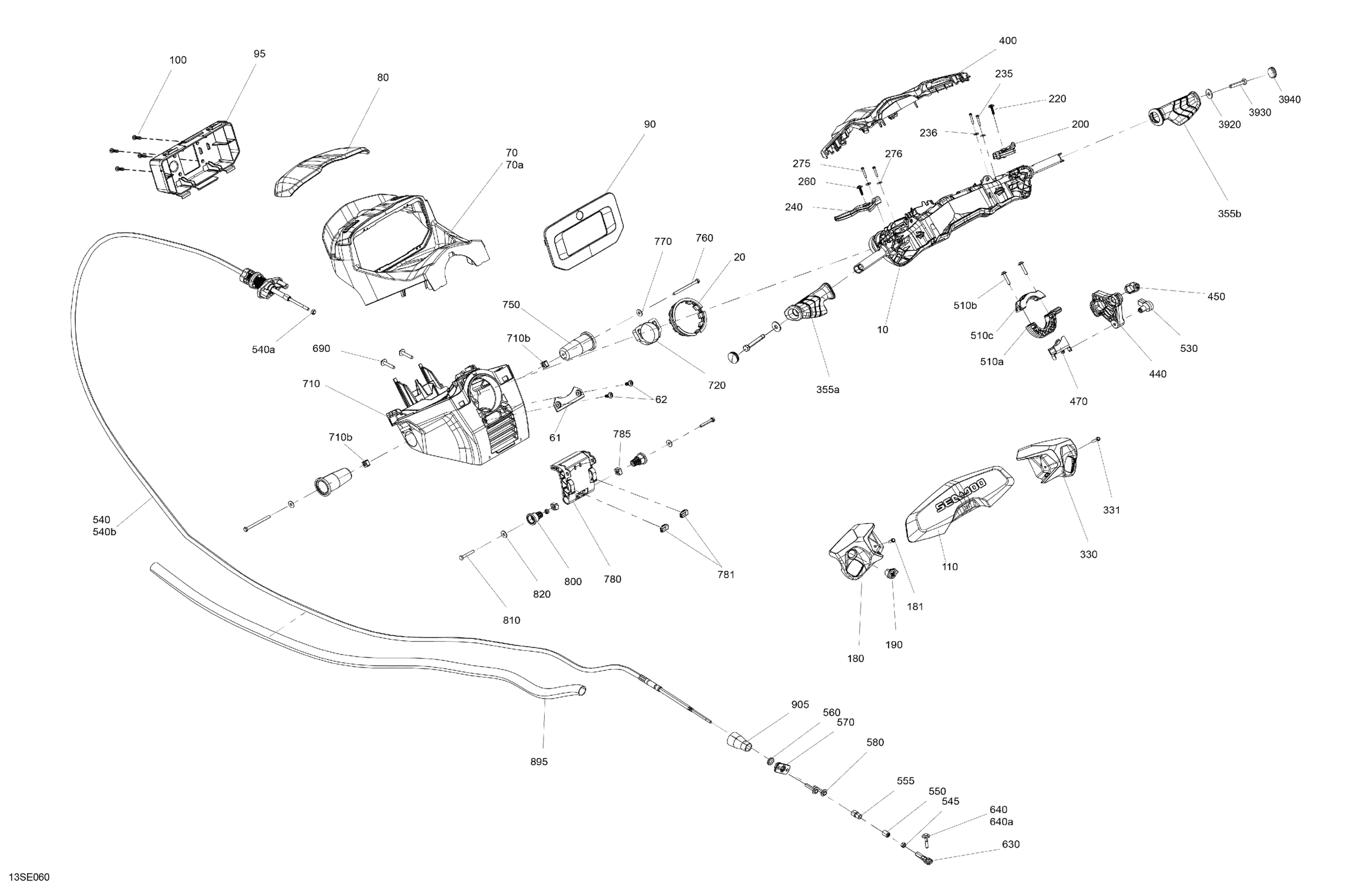

Sea-doo International - GTX - 130 - IBR (Rental) - 25SE - Bright White, 2025 Mechanic - Steering Diagram
