Description

Price

34

12V Power Roof Wiring Harness

710010029

$55.35

110

Light Switch

710004492

$46.12

120

Switch Winch

710002052

$29.97

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Differential Switch

710006040

$32.28

160

Differential Lock Switch

710005470

$46.12

170

Multifonction Switch

710006650

$87.66

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Ignition Switch | Includes 210 to 210b

710007324

$63.05

210a

Specialized Nut

710007923

$2.05

210b

Blank Ignition Key

715900934

$17.66

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

304

Screw PT Type K-50 X 16

250000959

$1.74

308

Black, Dart

293730006

$0.81

315

Front Differential Wiring Harness

710006807

$46.12

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

355

Pop Rivet 3/16”

293150092

$2.91

361

Boot

710002743

$3.98

365

Elastic Stop Nut M6, Brass

232561200

$3.51

390

Wiper Harness

710004661

$41.51

391

Clip

710010204

$1.45

395

Wiper Switch

710004941

$46.12

396

Wiper Harness

710004942

$41.51

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Screw PT Type K-50 X 16

250000959

$1.74

455

Torx Screw K50 X 16

250000720

$1.39

600

MID Multifunction Gauge

710008295

$355.35

620

A/C Control Unit | Includes 620 to 620a

710009400

$636.89

620a

Replacement Control Knob

715900906

$6.75

700

LH Beam | Includes 700 to 700a

710008316

$189.20

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

710

RH Beam | Includes 710 to 710a

710008317

$189.20

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Overmolded Grommet

293720130

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

LH Auxiliary LED Headlight

710006374

$184.58

762

Screw PT Type K-50 X 16

250000959

$1.74

770

RH Auxiliary LED Headlight

710006375

$184.58

1100

12V Power Outlet

710005374

$27.27

1102

USB Outlet

219400510

$40.92

1700

Differential Module

710008842

$447.66

1710

FDM Support

710005532

$6.92

1720

Screw PT Type K-50 X 16

250000959

$1.74

1730

Protector Foam

710006580

$15.22

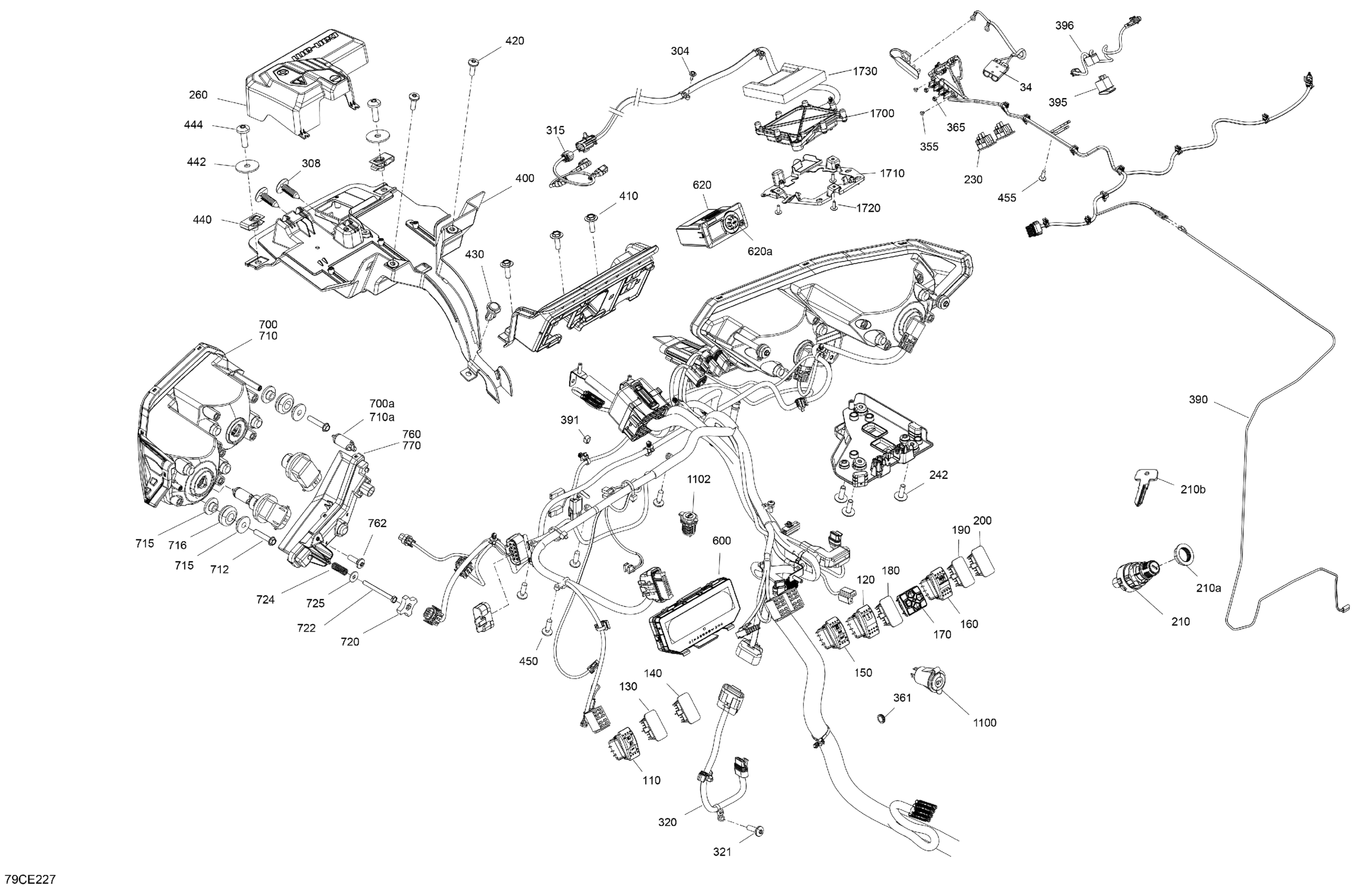

Can-Am International - Defender Max - HD10 - TEX CAB - 6LSD - Stealth Black - 67" Width, 2025 Electric - Front Section Diagram
