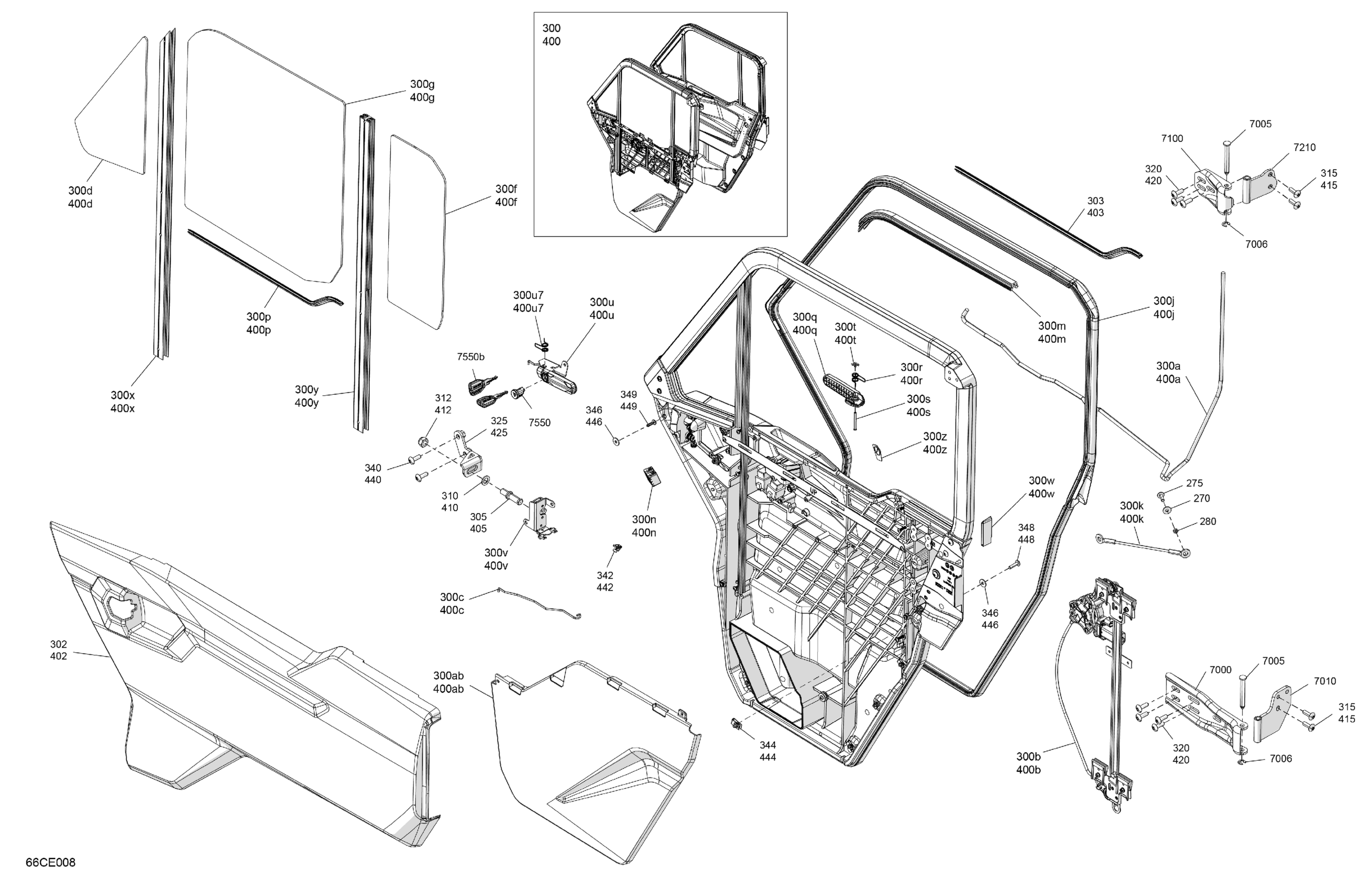

Can-Am International - Defender Max - HD10 - TEX CAB - 6LSD - Stealth Black - 67" Width, 2025 Enclosure Cab - Front Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.83

275

Torx Screw M6 X 20

250000722

$1.34

280

Bushing

708300737

$4.62

300

LH Front Rigid Door Ass'y | Includes 300 to 300aa

705801292

$2,049.99

300a

LH Door Wiring Harness

705800881

$226.12

300b

LH Front Window Actuator

705801143

$784.58

300c

Guide Pin

705801452

$41.51

300d

Tinted, LH Front Door Window

705801323

$194.99

300f

Tinted, LH Rear Door Window

705801324

$194.99

300g

Tinted, LH Front Sliding Cab Window

705801325

$204.99

300j

LH Gasket

705801311

$63.99

300k

Retaining Cable

705801437

$9.29

300m

Gasket

705801312

$106.12

300n

Window Switch

710004979

$39.97

300p

Gasket

705800963

$32.28

300q

Door Handle

705017152

$13.52

300r

Handle Spring

705013062

$13.83

300s

Guide Pin

705801393

$41.51

300t

External Retaining Ring

705602261

$3.98

300u

LH Front Door Handle Ass'y | Includes 300t to 300t7

705018945

$188.09

300u7

Handle Spring

705013062

$13.83

300v

LH Front Door Latch

705801464

$189.20

300w

Trim

705800992

$93.05

300x

Front Window Guide Extrusion

705800722

$207.66

300y

Rear Window Guide Extrusion

705800723

$207.66

300z

LH Door Pictogram Label

704909996

Unavailable

300ab

LH Lower Door Panel

705800716

$239.99

302

Stealth Black, LH Upper Door Panel

705801303

$284.99

303

Gasket

705800963

$32.28

304

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.77

305

Rod Latch

705800850

$27.66

310

Conical Spring Washer M12

250200005

$2.65

312

Elastic Stop Nut M12

232521416

$1.40

315

Torx Truss M8 X 25

250000874

$1.74

320

Torx Truss M8 X 25

250000874

$1.74

325

LH Front Striker Support

705801086

$41.51

340

Torx Truss M8 X 25

250000874

$1.74

342

Clip

517306478

$1.37

344

Panel Nut M6 X 1.0

250100198

$1.73

346

Stainless Steel Flat Washer

234062670

$1.74

348

Torx Truss Screw M6 X 25

250000807

$1.74

349

Torx Screw Truss Head K50X20 T20

250000760

$1.74

400

RH Front Rigid Door Ass'y | Includes 400 to 400aa

705801293

$2,049.99

400a

RH Door Wiring Harness

705800882

$239.97

400b

RH Front Window Actuator

705801144

$784.58

400c

Guide Pin

705801453

$41.51

400d

Tinted, RH Front Door Window

705801326

$194.99

400f

Tinted, RH Rear Door Window

705801327

$194.99

400g

Tinted, RH Front Sliding Cab Window

705801328

$204.99

400j

RH Gasket

705801313

$63.99

400k

Retaining Cable

705801437

$9.29

400m

Gasket

705801312

$106.12

400n

Window Switch

710004979

$39.97

400p

Gasket

705800963

$32.28

400q

Door Handle

705017152

$13.52

400r

Handle Spring

705013062

$13.83

400s

Guide Pin

705801393

$41.51

400t

External Retaining Ring

705602261

$3.98

400u

RH Front Door Handle Ass'y | Includes 400t to 400t7

705018951

$189.97

400u7

Handle Spring

705013062

$13.83

400v

RH Front Door Latch

705801465

$189.20

400w

Trim

705800993

$93.05

400x

Front Window Guide Extrusion

705800722

$207.66

400y

Rear Window Guide Extrusion

705800723

$207.66

400z

RH Door Pictogram Label

704909998

Unavailable

400ab

RH Lower Door Panel

705800717

$239.99

402

Stealth Black, RH Upper Door Panel

705801305

$284.99

403

Gasket

705800963

$32.28

404

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.77

405

Rod Latch

705800850

$27.66

410

Conical Spring Washer M12

250200005

$2.65

412

Elastic Stop Nut M12

232521416

$1.40

415

Torx Truss M8 X 25

250000874

$1.74

420

Torx Truss M8 X 25

250000874

$1.74

425

RH Front Striker Support

705801097

$41.51

440

Torx Truss M8 X 25

250000874

$1.74

442

Clip

517306478

$1.37

444

Panel Nut M6 X 1.0

250100198

$1.73

446

Stainless Steel Flat Washer

234062670

$1.74

448

Torx Truss Screw M6 X 25

250000807

$1.74

449

Torx Screw Truss Head K50X20 T20

250000760

$1.74

7000

Door Hinge

705800751

$41.51

7005

Hinge Pin

705800781

$0.55

7006

Retaining Ring

293370125

$2.31

7010

Lower Hinge

705801025

$41.51

7100

Upper Door Hinge

705800752

$41.51

7210

Upper Door Hinge

705800756

$46.12

7550

Lock Barrel Ass'y | Includes 7550 to 7550b

705801380

$106.12

7550b

Key

710010366

Unavailable
