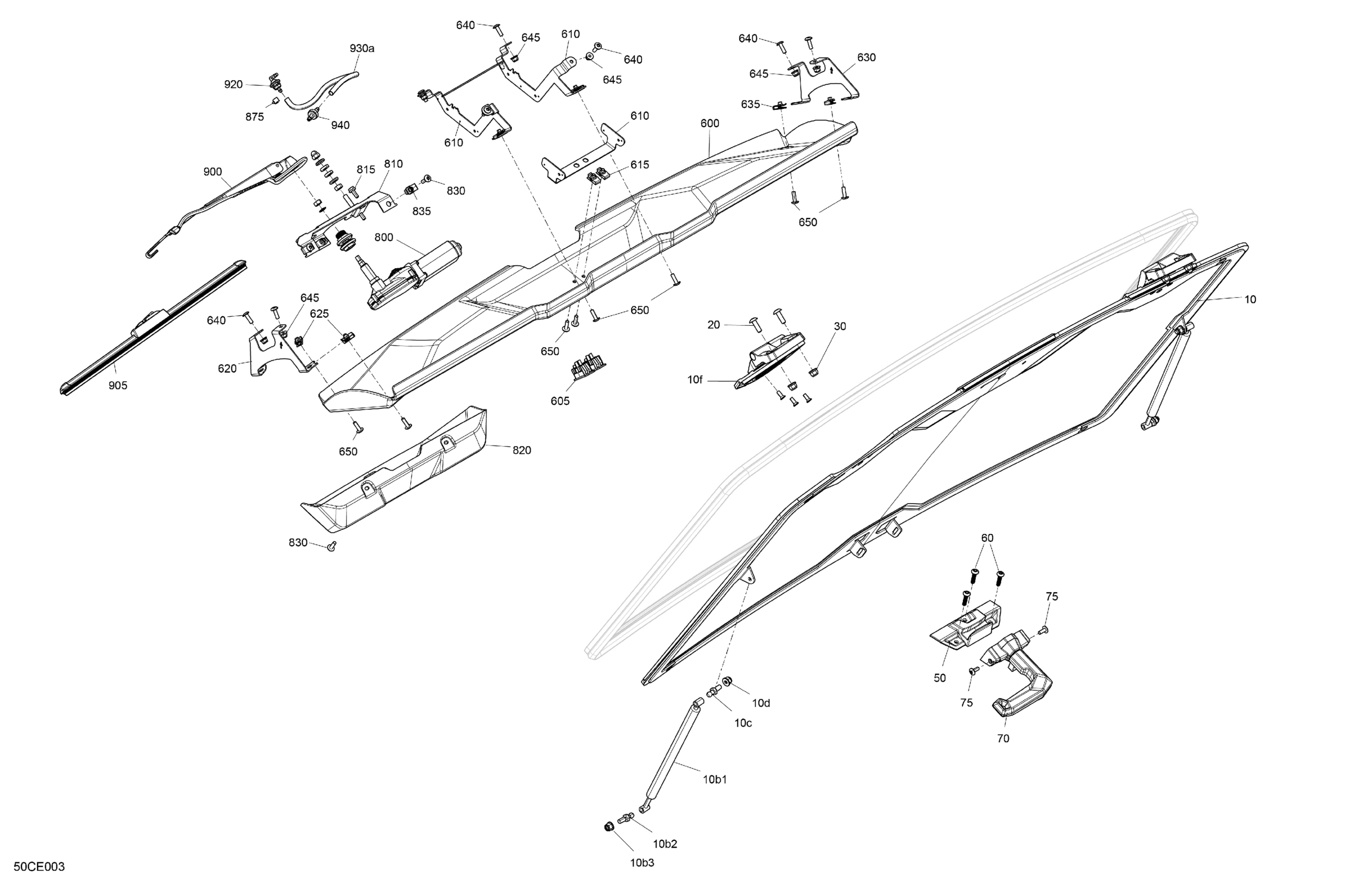

Can-Am International - Defender Max - HD10 - TEX CAB - 6LSD - Stealth Black - 67" Width, 2025 Body - Windshield Diagram

Description

Price

Windshield Ass'y | Includes 10 to 10f

715002942

$1,324.99

10b1

Shock

705800030

$101.51

10b2

Ball Head Stud

250300039

$6.15

10b3

Hex. Flange Elastic Nut M8

233281414

$1.14

10c

Ball Head Stud

250300039

$6.15

10d

Hex. Flange Elastic Nut M8

233281414

$1.14

10f

Windshield Hinges

705800082

$119.97

Torx Truss M8 X 25

250000874

$1.74

Hex. Flange Elastic Nut M8

233281414

$1.14

Handle Anchor

705800008

$17.66

Screw Torx M6.81 X 30

250001007

$1.61

Windshield Handle Ass'y

705801258

$124.58

Torx Truss M8 X 16

250000881

$1.74

600

Front Radio Support Kit UR

715008225

$349.97

605

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

610

Support

705800060

$56.12

615

Panel Nut M6 X 1.0

250100198

$1.73

620

LH Support

705800108

$27.66

625

Panel Nut M6 X 1.0

250100198

$1.73

630

RH Support

705800109

$23.82

635

Panel Nut M6 X 1.0

250100198

$1.73

640

Torx Screw M6 X 20

250000722

$1.34

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

650

Torx Screw M6 X 20

250000722

$1.34

800

Wiper Motor

705010657

$253.82

810

Cover Support Ass'y

705800073

$83.05

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

820

Wiper Motor Trim

705800805

$27.66

830

Torx Screw M6 X 20

250000722

$1.34

835

Panel Nut M6 X 1.0

250100198

$1.73

875

Spring Clamp

414554800

$0.83

900

Wiper Arm

705010656

$78.43

905

Winshield Wiper

705011443

$18.43

920

90° Elbow Connector

705800103

$13.83

930a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

940

Check Valve

275500398

$8.57
