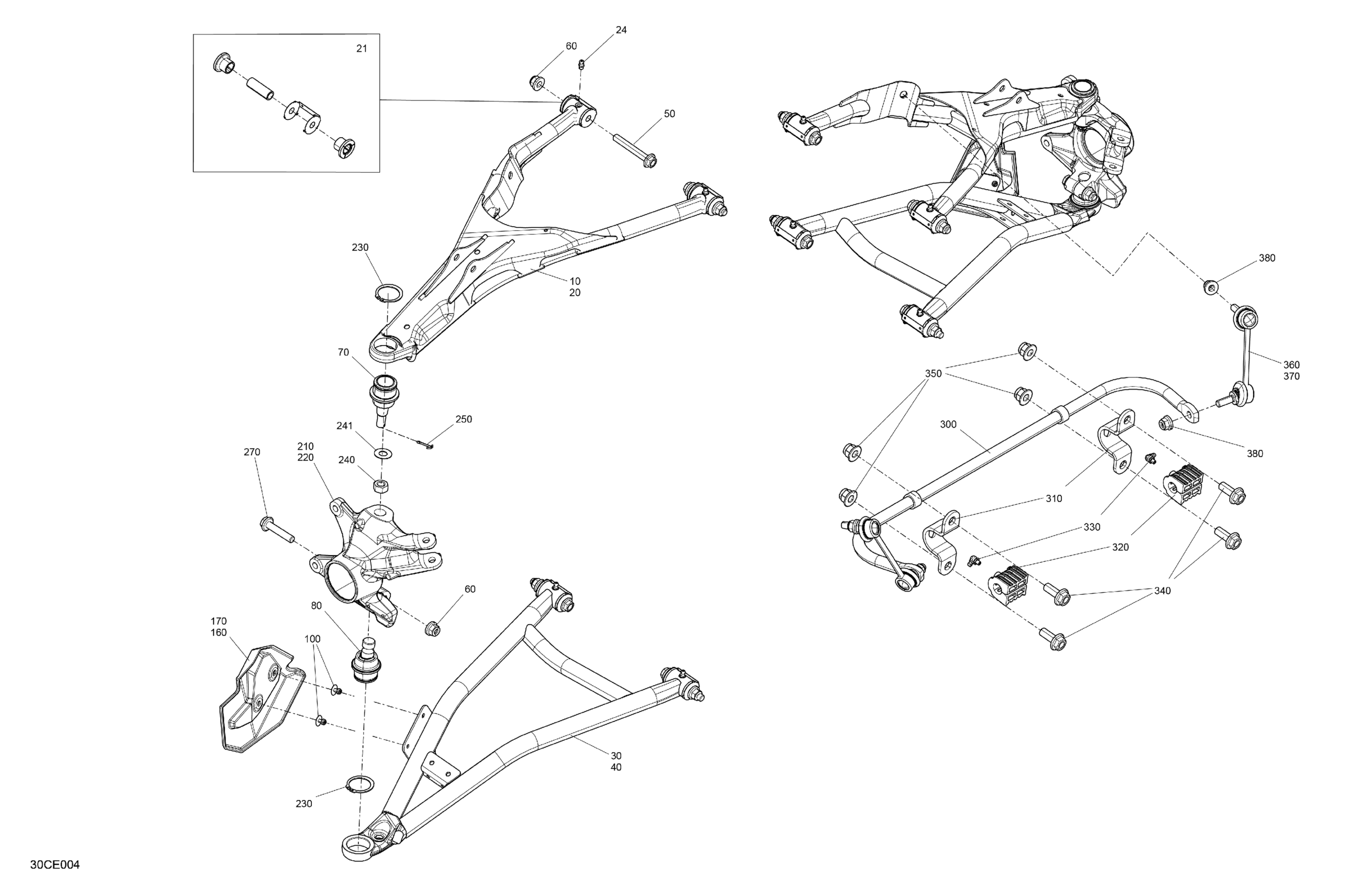

Can-Am International - Defender Max - HD10 - TEX CAB - 6LSD - Stealth Black - 67" Width, 2025 Suspension - Front Components Diagram

Description

Price

Deep Black, LH Upper Suspension Arm Ass'y With Balljoint

715010609

$244.58

Deep Black, RH Upper Suspension Arm Ass'y With Balljoint

715010610

$244.58

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

Grease Fitting

408200700

$2.80

Deep Black, LH Lower Suspension Arm Ass'y With Balljoint

715010601

$244.58

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint

715010602

$244.58

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex. Flange Elastic Nut M10

233201436

$1.74

Ball Joint

706203084

$35.35

Ball Joint

706202045

$35.35

100

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

160

RH CV joint Guard

706202135

$9.23

170

LH CV joint Guard

706202134

$9.23

210

LH Knuckle

706205046

$198.43

220

RH Knuckle

706205047

$198.43

230

Circlip

293370035

$2.55

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

270

Hex. Flange Screw M10 X 55

207605546

$1.74

300

Stabilizer Bar Ass'y

706204869

$96.89

310

Clamp

706203437

$13.83

320

Stabilizer Bar Bushing

706205240

$11.98

330

Grease Fitting 90°

293550056

$1.37

340

Hex. Flange Screw DIN.6921

250000951

$5.47

350

Elastic Flange Nut M12

250001195

$2.15

360

LH Link Stabilizer Bar

706204803

$41.51

370

RH Link Stabilizer Bar

706204804

$41.51

380

Elastic Flange Nut M12

250001195

$2.15
