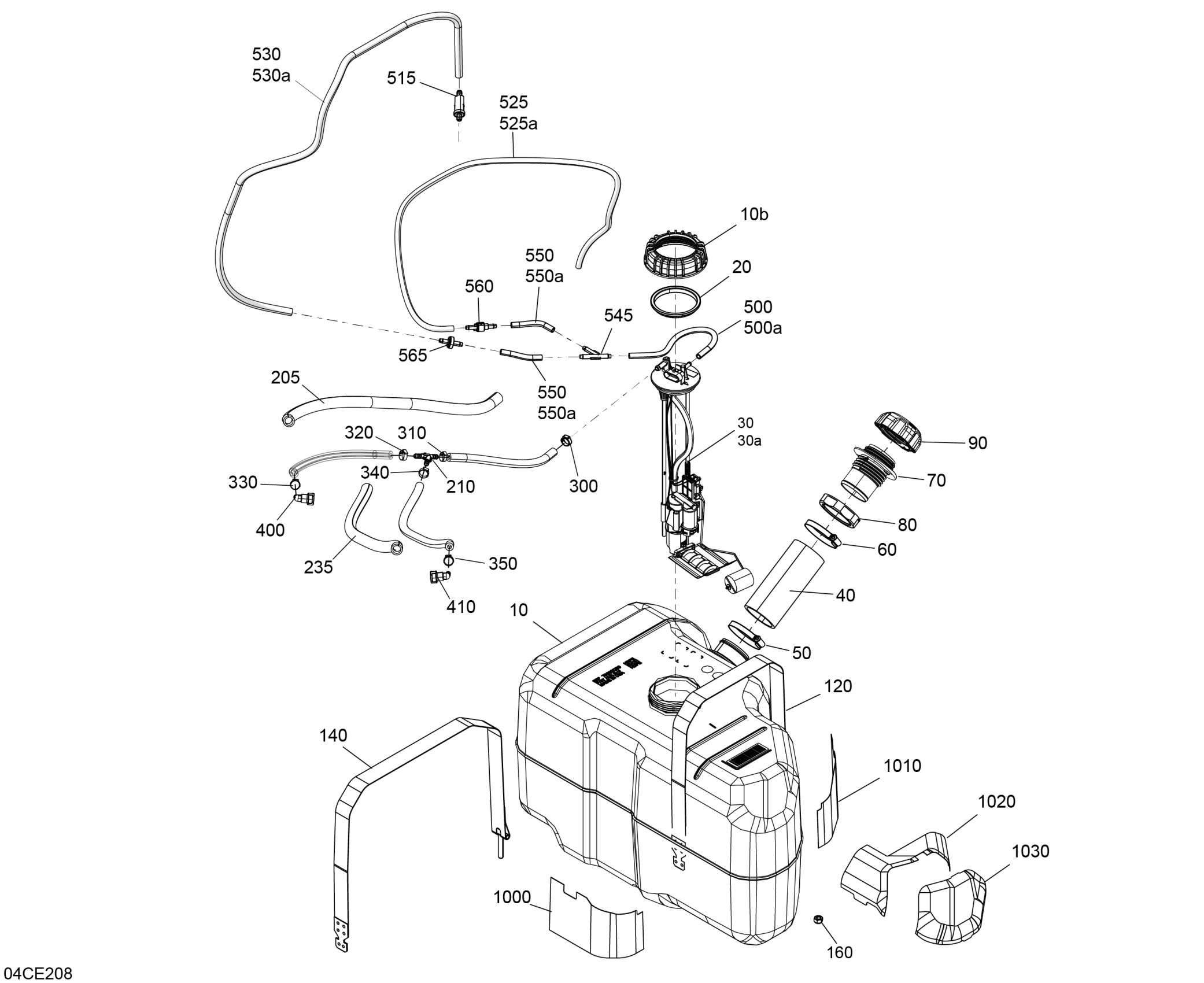

Can-Am International - Defender Max - HD10 - TEX CAB - 6LSD - Stealth Black - 67" Width, 2025 Engine - Fuel Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$253.82

10b

Fuel Pump Module Nut

709000328

$12.82

Seal

709000208

$12.54

Fuel Pump | Includes 30 to 30a

709001189

$326.69

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

Filler Neck Hose

709001698

$32.28

Norma Clamp

293650081

$9.87

Norma Clamp

293650081

$9.87

Filler Neck

709000867

$14.75

Fuel Filler Neck Nut

293600206

$10.02

Fuel Cap

709000868

$32.28

120

Retaining Strap

709001291

$36.89

140

Retaining Strap

709001292

$36.89

160

Hex. Flange Elastic Nut M8

233281414

$1.14

205

Tubing 16 Mm 1000Mm Long

219704408

$6.23

210

Y Fitting

709001329

$10.15

235

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Disconnect

275500921

$12.61

410

Quick Disconnect

275500921

$12.61

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

515

Filter

709001120

$8.29

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

530

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

530a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

545

Y-Fitting

293710059

$8.19

550

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

550a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

1000

Heat Shield

707002670

$32.28

1010

Heat Shield

707002671

$32.28

1020

Heat Shield

707002673

$32.28

1030

Heat Shield

707002719

$32.28
