Description

Price

10

Seat Support | Includes 10 to 10a7

708003621

$139.99

10a7

Pop Rivet 3/16 X ,425

293150293

$1.49

19

Insert Half Hex Body M8 x 1.25

293450307

$2.69

20

Hex Screw Washer Head M8 X 20

207582054

$3.29

30

Hex. Flange Elastic Nut M8

233281414

$1.49

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

Not Available As Spare Parts

XXX

Unavailable

95

Backrest Ass'y

708001995

$349.99

100

Central Cushion Ass'y

708001928

$249.99

105

Backrest Ass'y

708003157

$349.99

110

RH Cushion Ass'y

708001926

$284.99

115

Backrest Ass'y

708001995

$349.99

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.89

170

Hex. Flange Elastic Nut M8

233281414

$1.49

190

Bushing

708003749

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.19

210

Hex. Screw M6 X 45

207064544

$2.19

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.49

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.29

500a

Headrest

708002853

$58.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$244.99

575

RH Safety Belt

708003200

$244.99

580

Central Safety Belt

708003688

$244.99

605

Hex. Screw M12 X 80

207028046

$3.99

610

Elastic Flange Nut M12

233221416

$2.89

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.99

625

Flat Washer M12

250200102

$2.19

630

Lock Nut Nylon 7/16

250100183

$2.09

1120a

Torx Screw Truss Head K50X20 T20

250000760

$2.19

1120b

Torx Screw M6 X 20

250000722

$1.69

1120c

Flat Washer M6.6 X 22

250200162

$2.39

1120d

Elastic Flange Nut M12

233221416

$2.89

1120f

Lock Nut Nylon 7/16

250100183

$2.09

1120g

Safety Belt screw

708002504

$5.29

1120h

Safety Belt Screw

708000890

$3.79

1120j

Position Washer

708000891

$1.49

1120k

Latch

269501487

$16.99

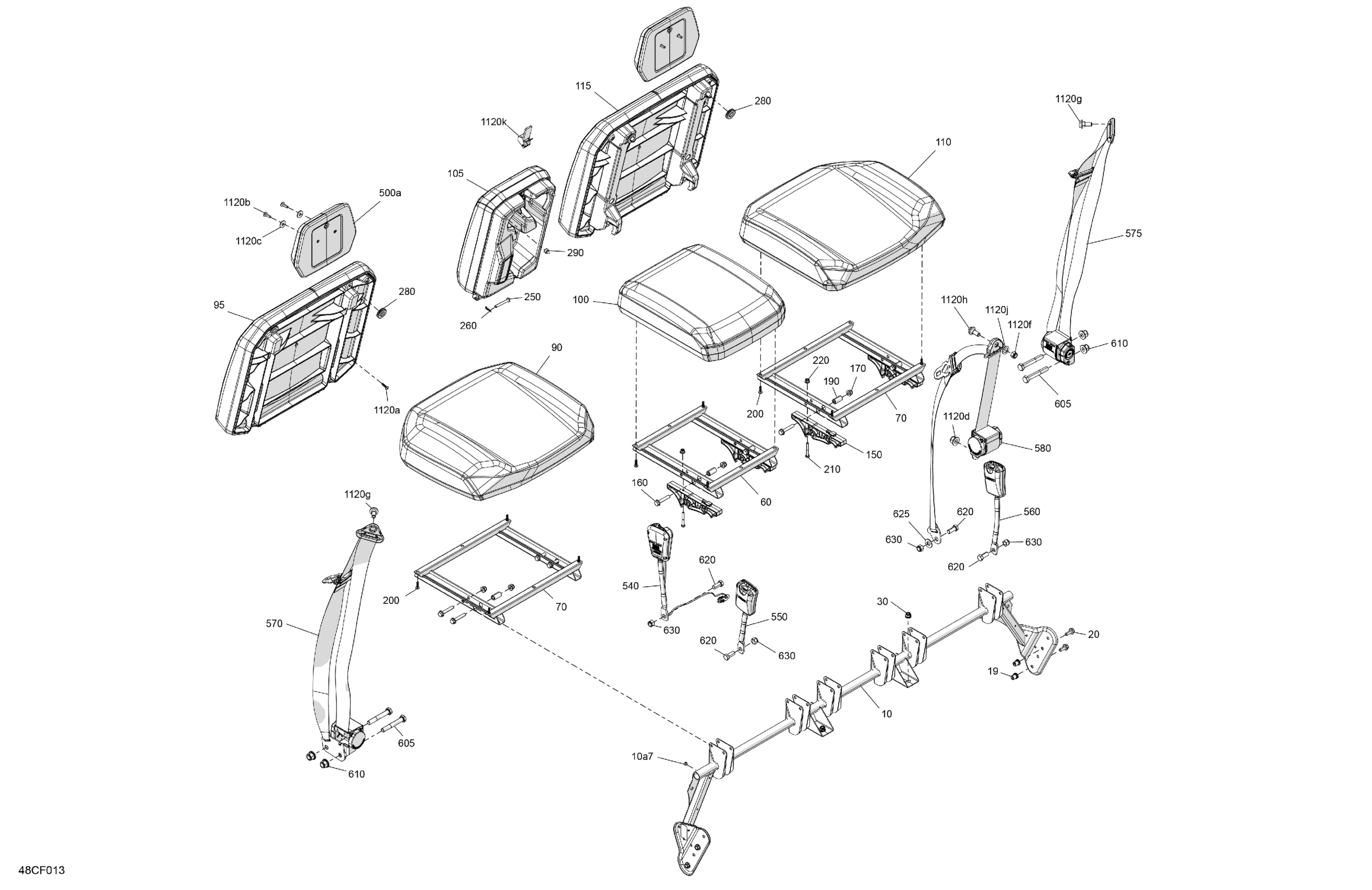

Can-Am International - Defender - HD9 - XU - 9WTE - Stealth Black - 62" Width, 2026 Body - Seat Diagram

Seat Support | Includes 10 to 10a7

Pop Rivet 3/16 X ,425

Insert Half Hex Body M8 x 1.25

Hex Screw Washer Head M8 X 20

Hex. Flange Elastic Nut M8

Mid Seat Member

Passenger Seat Member

Not Available As Spare Parts

Backrest Ass'y

Central Cushion Ass'y

Backrest Ass'y

RH Cushion Ass'y

Backrest Ass'y

Seat Base Pivot

Hex. Flange Screw M8 X 45

Hex. Flange Elastic Nut M8

Bushing

Torx Screw Truss Head K50X20 T20

Hex. Screw M6 X 45

Hex. Flange Elastic Nut M6 x 1.0

Pin

Hairpin Cotter

Grommet

Rubber Bumper

Headrest

Driver Buckle

Middle Buckle

Passenger Buckle

LH Safety Belt

RH Safety Belt

Central Safety Belt

Hex. Screw M12 X 80

Elastic Flange Nut M12

Hex. Cap Screw 7/16'' X 1''

Flat Washer M12

Lock Nut Nylon 7/16

Torx Screw Truss Head K50X20 T20

Torx Screw M6 X 20

Flat Washer M6.6 X 22

Elastic Flange Nut M12

Lock Nut Nylon 7/16

Safety Belt screw

Safety Belt Screw

Position Washer

Latch
