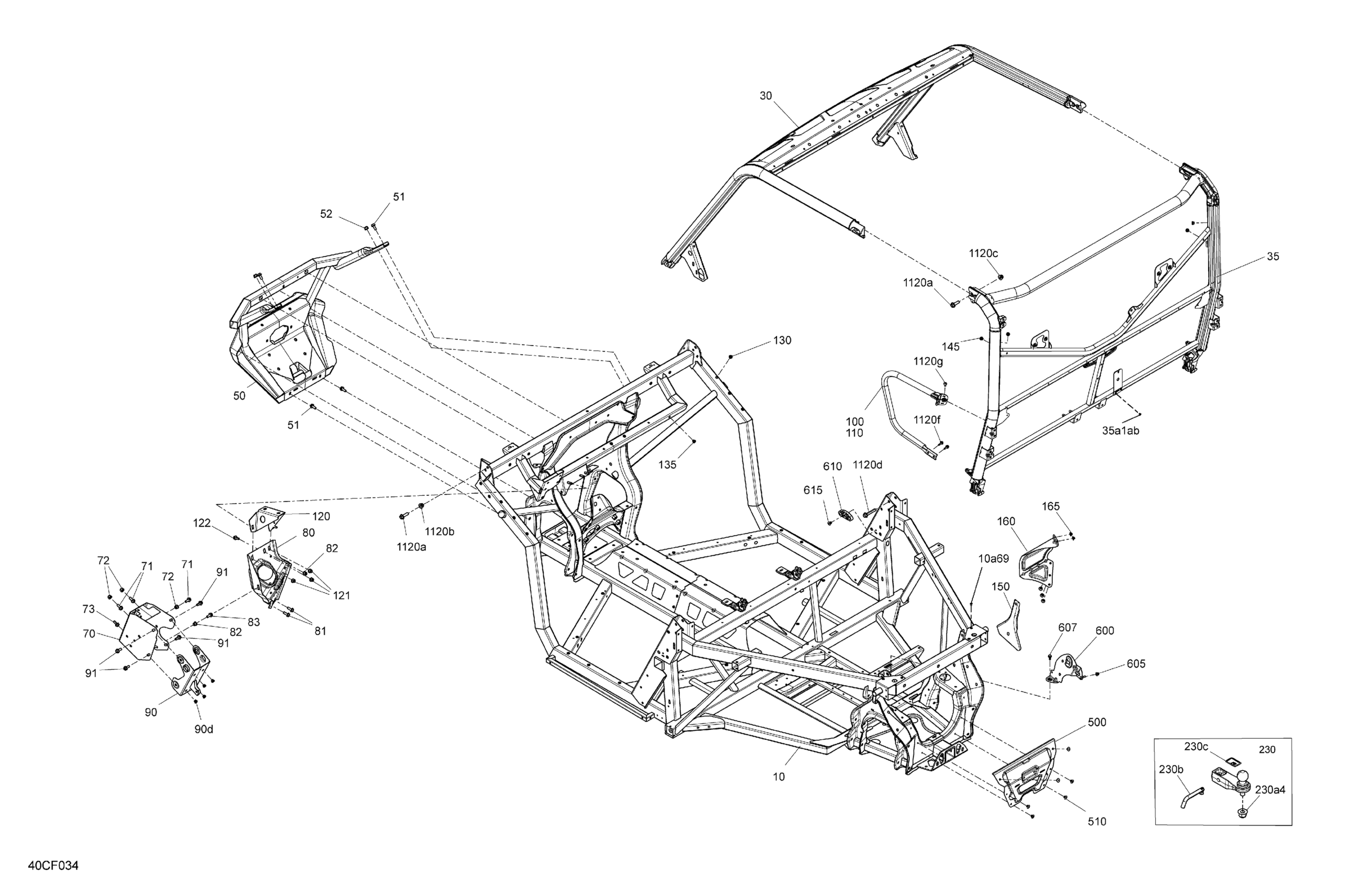

Can-Am International - Defender - HD9 - XU - 9WTE - Stealth Black - 62" Width, 2026 Frame - System Diagram

#

Description
Price

10

Chassis | Includes 10 to 10a69

705212965

Unavailable

10a69

Pop Rivet 3/16 X ,425

293150293

$1.49

30

Deep Black, Front Cage Ass'y

715011122

$649.99

35

Deep Black, Rear Cage | Includes 35 to 35a1ab

705212629

Unavailable

35a1ab

Pop Rivet 3/16 X ,425

293150293

$1.49

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.49

70

Module Support

705212644

$59.99

71

Hex. Flange Screw M8 X 20

207682044

$1.49

72

Hex. Elastic Flange Nut M8

233281416

$1.49

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.49

83

Hex. Flange Screw M8 X 20

207682044

$1.49

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90d

Insert Half Hex Body M6 x 1.0

250100199

$3.29

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Guard

705210921

$43.49

110

Deep Black, RH Guard

705210930

$44.49

120

Module Support

705211549

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.49

122

Hex. Flange Screw M8 X 20

207682044

$1.49

130

Insert Half Hex Body M6 x 1.0

250100199

$3.29

135

Insert Half Hex Body M6 x 1.0

250100199

$3.29

145

Insert Half Hex Body M6 x 1.0

250100199

$3.29

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002709

$61.99

165

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

230a4

Elastic Flange Nut M20

250100104

$12.49

230b

Hitch Pin

705204490

$52.99

230c

Hitch Approval Decal

704906897

$19.99

500

Rear Chassis Reinforcement

705207753

$33.99

510

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

600

Voltage Regulator Support

710009484

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

610

Spacer

705208203

$20.99

615

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

1120a

Hex. Flange Screw M10 X 35

250000855

$1.89

1120b

Hex. Flange Elastic Nut M10

233201436

$2.19

1120c

Flange Elastic Nut M10

233201466

$3.29

1120d

Hex. Flange Screw M10 X 6

207606046

$4.19

1120f

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.19

1120g

Torx Truss M6X14

250000789

$5.49
