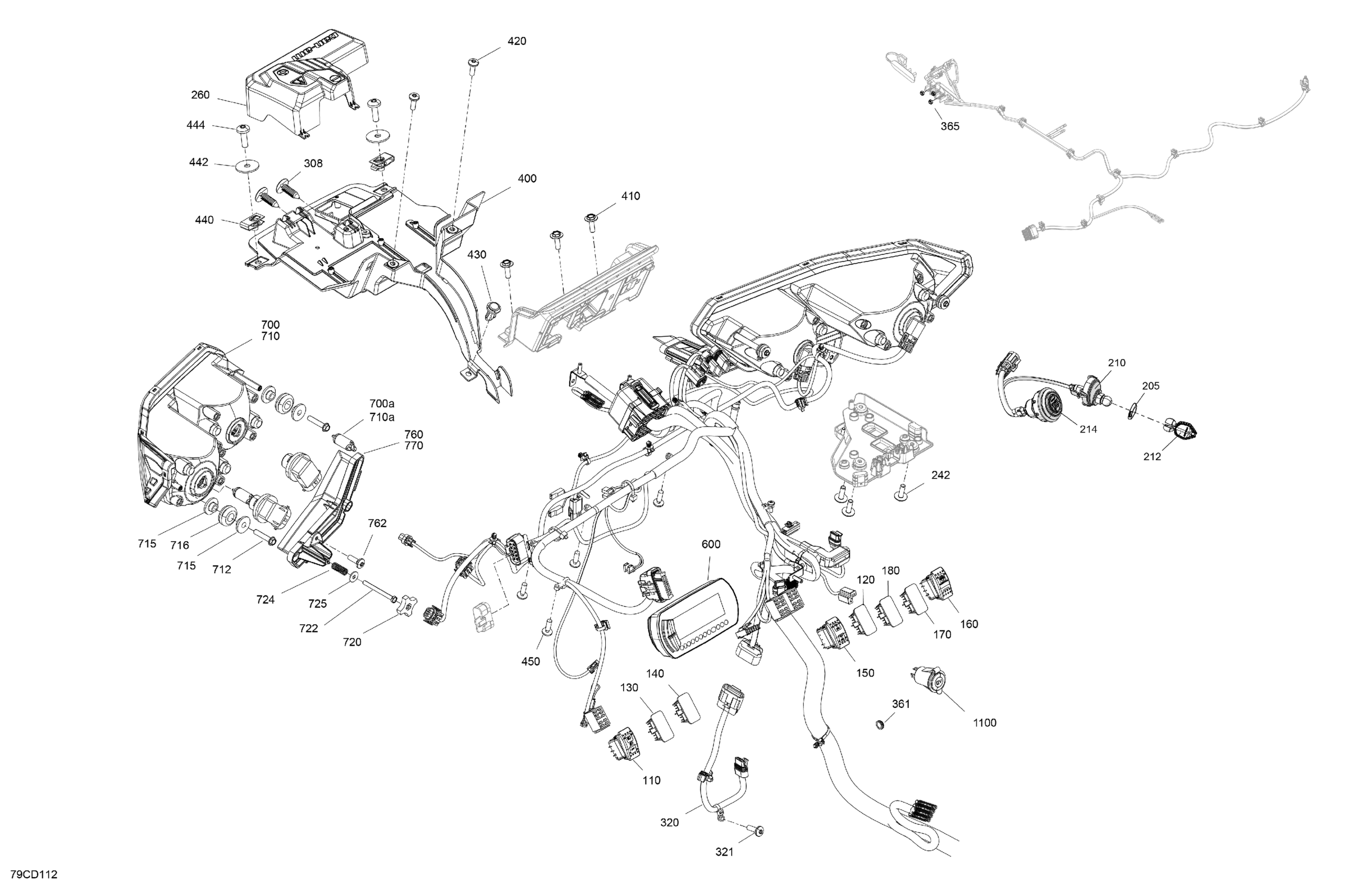

Can-Am International - Defender HD10 - XU - 7NRB - Timeless Black Metallic - 64" Width, 2024 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$46.12

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$32.28

160

Differential Lock Switch

710005470

$46.12

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

205

Specialized Nut

278004274

$2.72

210

Terminal DESS One Wire

515179305

$60.42

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

214

Start-Stop Button | Not Shown

710005213

$59.97

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

308

Black, Dart

293730006

$0.81

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

361

Boot

710002743

$3.98

365

Elastic Stop Nut M6, Brass

232561200

$3.51

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Screw PT Type K-50 X 16

250000959

$1.74

600

Multifunction Compact Gauge

710008296

$383.05

700

LH Beam | Includes 700 to 700a

710008316

$189.20

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

710

RH Beam | Includes 710 to 710a

710008317

$189.20

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Overmolded Grommet

293720130

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

Deep Black, LH Front Headlight Trim

710008973

$19.20

762

Screw PT Type K-50 X 16

250000959

$1.74

770

Deep Black, RH Front Headlight Trim

710008974

$19.20

1100

12V Power Outlet

710005374

$27.27
