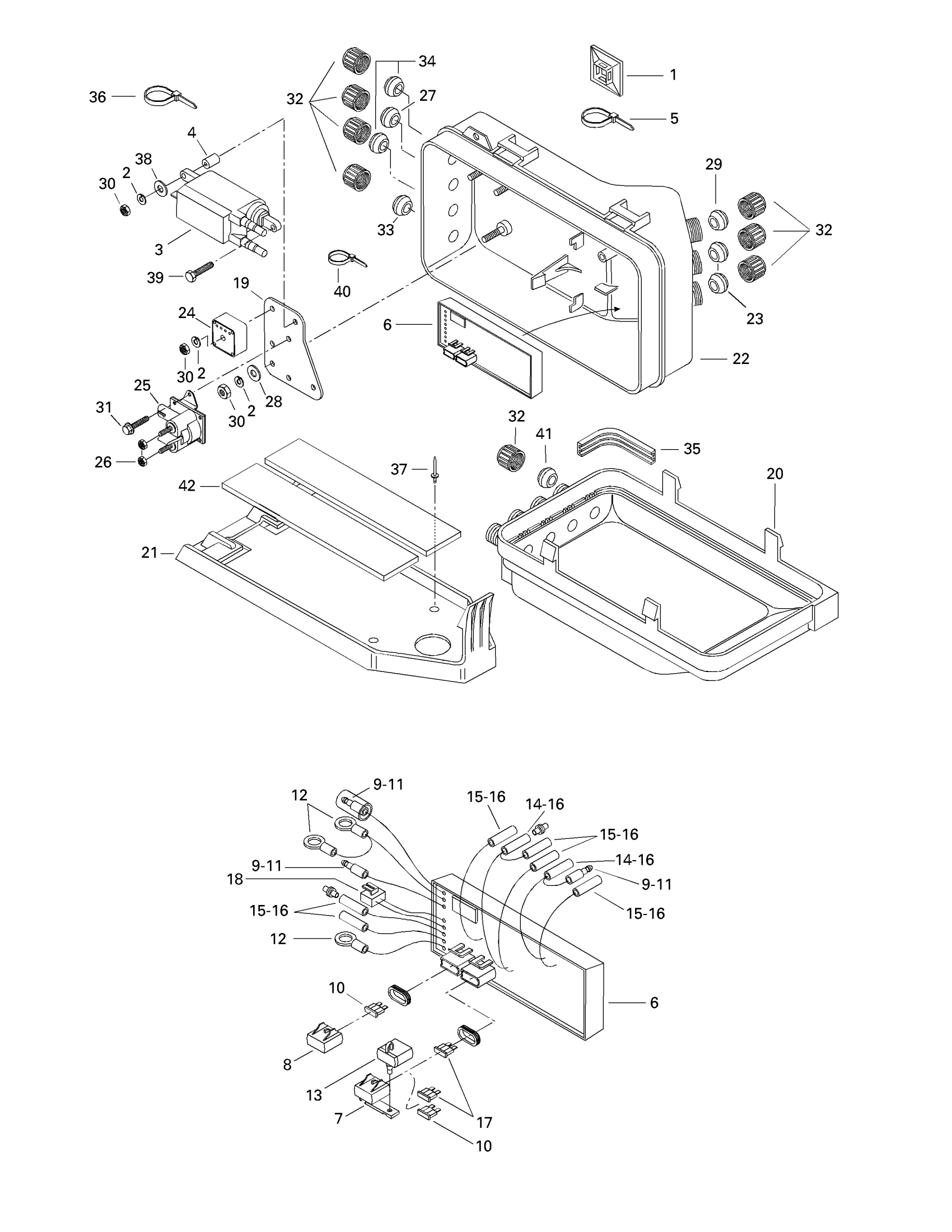

Sea-doo HX, 5882, 1997 Electrical Box Diagram

#

Description
Price

1

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

2

Lock Washer Helical M6

234161601

$0.92

3

Ignition Coil

278000202

Unavailable

4

SPACER - Call your local BRP dealership

278000235

Unavailable

5

Tie-Rap 173 mm

293750009

$0.85

6

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 4 - 16.

278001025

Unavailable

7

Fuse Holder Cap

278001326

$6.03

8

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

9

Insulated Sheath

278001008

$3.20

10

Fuse, 15 Amperes

278000343

$2.72

11

Male Terminal

278000230

$3.48

12

Open Barrel

278000992

$1.79

13

Fuse Holder

278000379

Unavailable

14

Insulated Sheath

278000770

$7.60

15

Insulated Sheath

278001007

$3.22

16

Female Terminal | DS 650 X

278001009

$2.55

17

Fuse, 5 Amperes | CE

278000344

$3.22

18

Female Terminal

278001114

$2.55

19

Mounting Plate

278000615

Unavailable

20

Electric Box Cover

278001082

Unavailable

21

Electric Box Support

278001119

Unavailable

22

Electric Box Base

278001085

Unavailable

23

Grommet

278000682

Unavailable

24

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

25

Starter Relay

278003012

$35.07

26

Hex. Elastic Stop Nut M6

232561600

$0.92

27

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

28

Stainless Flat Washer M6

234061600

$0.25

29

GROMMET - Call your local BRP dealership

278000098

Unavailable

30

Hex. Nut M6

232061600

$0.91

31

Hex. Flange Screw M6 X 10

210261040

$1.25

32

Electric Wire Cap

278000100

Unavailable

33

GROMMET - Call your local BRP dealership

278000098

Unavailable

34

Grommet, 4 Circuit, Red

570026800

Unavailable

35

Gasket

278000181

Unavailable

36

Tie Wrap 368 mm

293750008

$0.85

37

Avdel Rivet 3/16"

293150037

$0.47

38

Stainless Flat Washer M6

234061600

$0.25

39

Self Tapping Screw M6.3 x 25

215462550

Unavailable

40

Tie Wrap 142 mm

293750002

$0.88

41

Grommet, 1 Circuit, Blue

293720030

Unavailable

42

Rubber Strip

293830012

Unavailable
