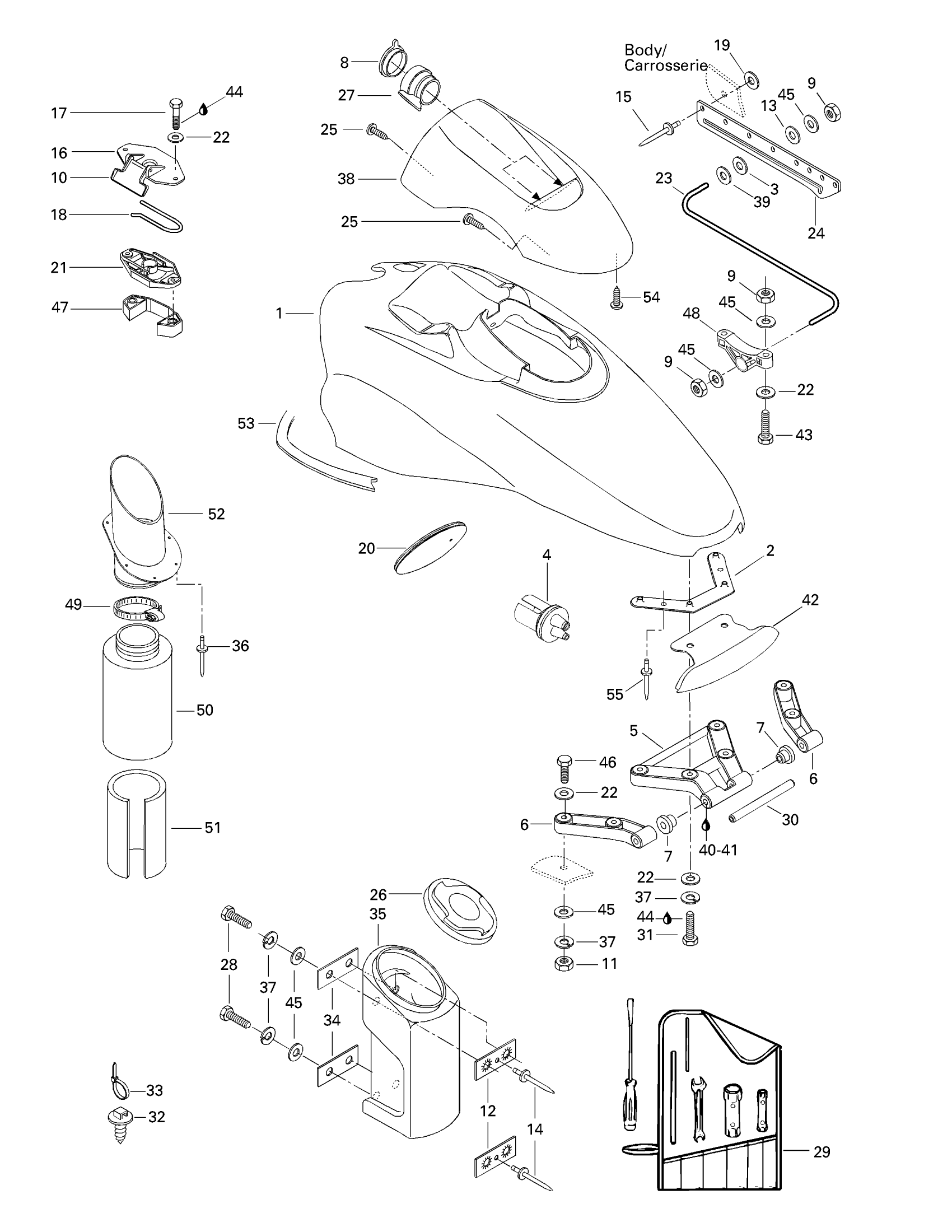

Sea-doo HX, 5882, 1997 Engine Cover Diagram

#

Description
Price

1

Engine Cover Kit (Including 55) | Includes 1 - 2.

269700049

Unavailable

2

Retainer Plate

293450111

Unavailable

3

Plastic Washer

277000100

Unavailable

4

Grommet | .

293720031

Unavailable

5

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

6

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

7

CUSHION - Call your local BRP dealership

293350016

Unavailable

8

Cap Jauge (Black)

269700035

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.06

10

Latch Ass'y

269700109

$23.10

11

Hex. Nut M6

232061600

$1.04

12

Plate

269500204

Unavailable

13

Flat Washer 6 mm

234062100

$1.18

14

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

15

Avdel Rivet 3/16"

293150037

$0.54

16

Latch Ass'y

269700109

$23.10

17

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

18

Latch Spring

269700017

$8.34

19

Flat Washer 5 mm

234051500

$0.67

20

Cap

269700026

Unavailable

21

Latch Ass'y

269700109

$23.10

22

Stainless Flat Washer M6

234061600

$0.28

23

Rod

269700018

Unavailable

24

Support Arm

269700006

Unavailable

25

Tuflock Phillips Plastic Screw

414745900

$1.49

26

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

27

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

28

Hex. Forming Screw M6 X 20

207162060

$1.18

29

Tool Kit

295000066

Unavailable

30

AXLE - Call your local BRP dealership

269700024

Unavailable

31

Hex. Screw M6 X 30

207163060

$1.43

32

Mount Dart

293730040

$0.99

33

Tie Wrap 142 mm

293750002

$1.01

34

GASKET - Call your local BRP dealership

293250037

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

Rivet 3/16

293150045

Unavailable

37

Lock Washer Helical M6

234161601

$1.06

38

Cap Steering

269700034

Unavailable

39

Flat Washer 8 mm, Stainless

234082600

$2.27

40

Sealant Loctite 648

219703000

$41.01

41

Was 293800041 Loctite Primer 7649

219704458

$41.99

42

Cover Hinge Cap

269700014

Unavailable

43

Hex. Screw M6 X 30

207063060

$1.73

44

Loctite 243, 10 ml

293800060

$21.49

45

Flat Washer M6, Stainless

234062600

$0.73

46

Hex. Screw M6 X 35

207063560

$2.12

47

SHIM - Call your local BRP dealership

269700015

Unavailable

48

Clip Arm

269700005

Unavailable

49

Tridon Clamp

293650054

$8.63

50

Tube Vent Rear

291000376

Unavailable

51

Noise Deflector

291001133

Unavailable

52

Adaptor Vent

269700021

Unavailable

53

Was 293200017 Neoprene Seal

219704365

$135.79

54

Hex. Flange Screw K40 X 16

241141660

$1.43

55

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable
