1970 Yamaha HT1 (HT1) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

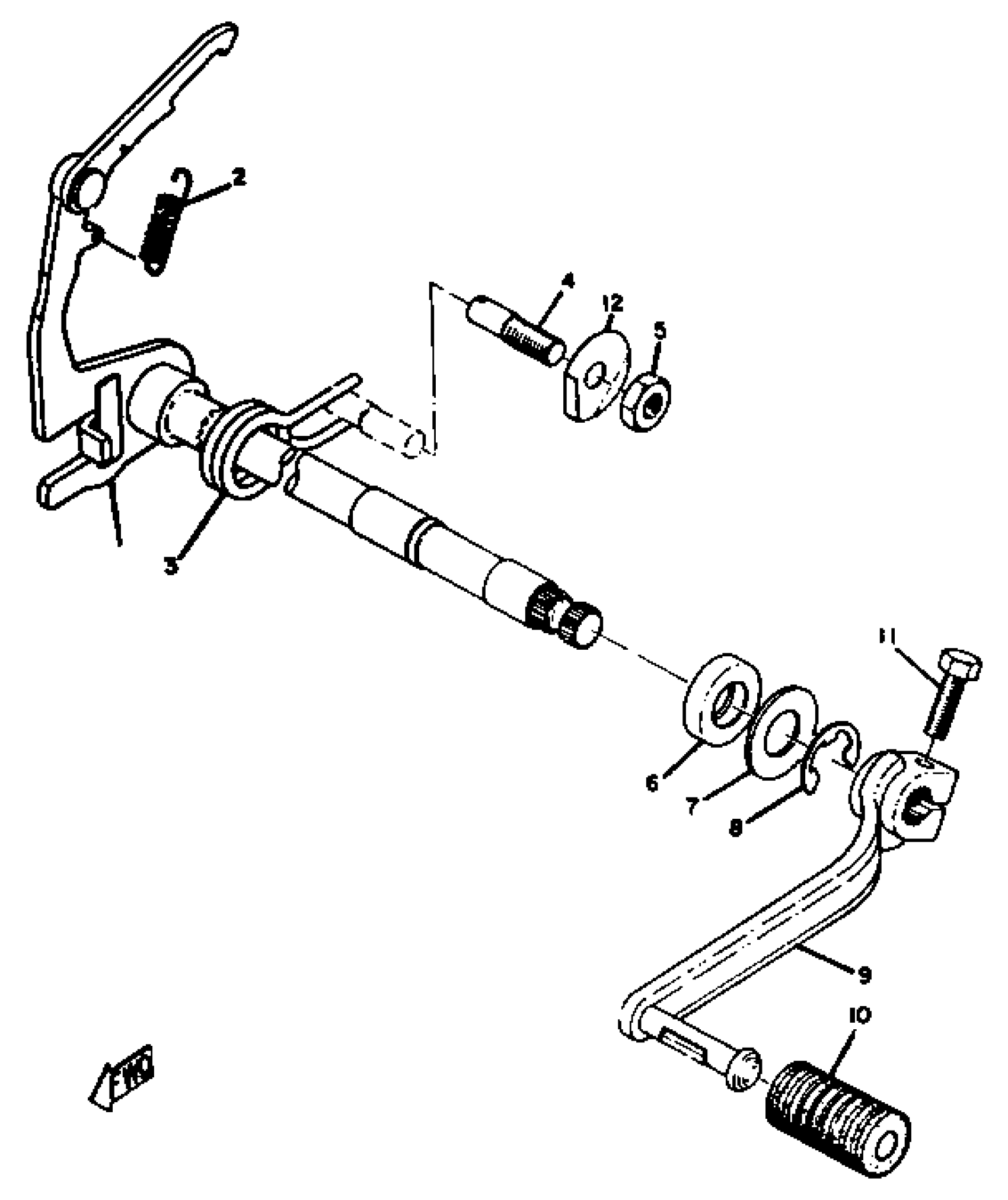

1970 Yamaha HT1 (HT1) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHANGE SHAFT ASSY

276-18101-02-00

—

$49.02

In stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT (583)

90170-08193-00

1
Out of stock

6

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

7

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

8

. CIRCLIP

99001-12600-00

1

$5.78

In stock

9

PEDAL, SHIFT

367-18111-00-00

1

$35.38

In stock

10

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

WASHER LOCK 248181390000

90215-08014-00

1

$5.38

In stock
