REAR WHEEL

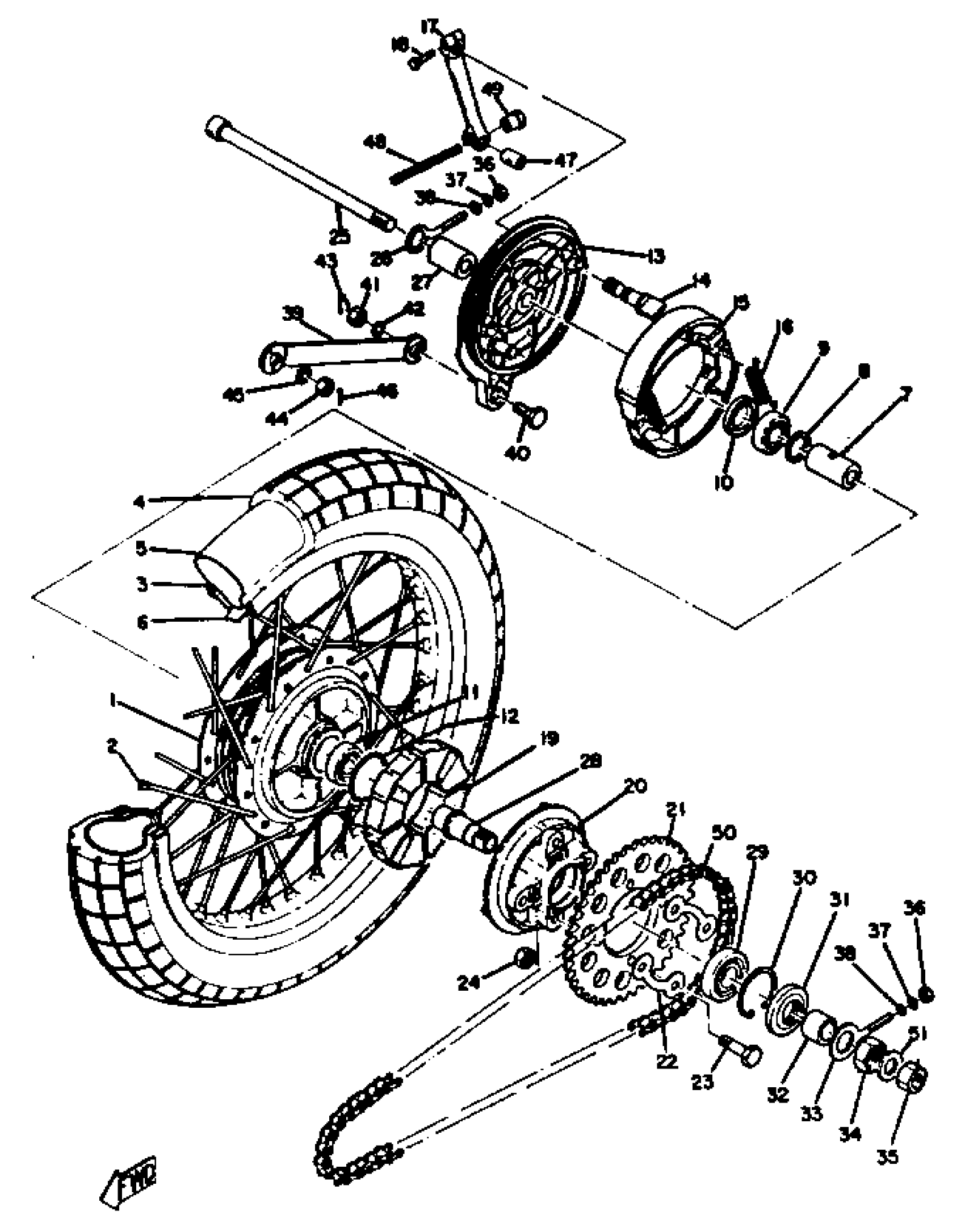

Yamaha HT1 (HT1) 1970 REAR WHEEL Diagram
#
1
HUB, REAR
(195-25311-00-38)
Unavailable
2
SPOKE SET, REAR
183-25304-01-00
Unavailable
2
SPOKE SET, INNER 2
(183-25396-90-00)
Unavailable
2
SPOKE SET, OUTER 2
(183-25397-90-00)
Unavailable
3
RIM 1.60X18
(94416-18018-00)
Unavailable
4
300X18 YOKO Y620
(94130-18322-00)
Unavailable
4
325X18 YOKO Y620
(94132-18320-00)
Unavailable
7
SPACER
(90560-12108-00)
Unavailable
10
OIL SEAL, SO-TYPE
93104-18006-00
Unavailable
12
O-RING (183)
93210-42101-00
Unavailable
13
PLATE, BRAKE SHOE
(276-25321-00-00)
Unavailable
14
CAMSHAFT
(183-25351-00-00)
Unavailable
15
BRAKE SHOE SET-2PCS
183-W2536-00-00
Unavailable
16
SPRING (5T9)
90506-17328-00
Unavailable
17
LEVER, CAMSHAFT
341-25355-00-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
DAMPER, CLUTCH
304-25364-01-00
Unavailable
20
CLUTCH, HUB
58K-25366-00-00
Unavailable
21
SPROCKET, DRIVEN 45T
183-25446-20-00
Unavailable
21
SPROCKET, DRIVEN 49T
276-25449-10-00
Unavailable
21
SPROCKET, DRIVEN 52T
276-25452-10-00
Unavailable
22
WASHER
4AW-25412-00-00
Unavailable
23
BOLT(1AJ)
90101-08672-00
Unavailable
24
NUT(6L2)
95333-08600-00
Unavailable
25
AXLE, WHEEL
(167-25381-00-00)
Unavailable
26
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
27
COLLAR
(90387-12103-00)
Unavailable
28
AXLE, SPROCKET
(205-25387-00-00)
Unavailable
29
BEARING(3BN)
93306-00438-00
Unavailable
30
CIRCLIP(5U8)
99009-42500-00
Unavailable
31
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
32
COLLAR (276-25386-00)
90387-20172-00
Unavailable
33
PULLER, CHAIN
4GL-2538A-10-00
Unavailable
34
NUT, HEXAGON
90170-18165-00
Unavailable
35
NUT, HEXAGON
(90170-12063-00)
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
39
BAR, TENSION
(195-25371-00-00)
Unavailable
40
BOLT 1092537300
90109-08063-00
Unavailable
41
. NUT
95380-08700-00
Unavailable
42
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
43
PIN, COTTER
91490-25020-00
Unavailable
44
. NUT
95380-08700-00
Unavailable
45
WASHER, PLAIN
92990-08200-00
Unavailable
46
PIN, COTTER
91490-25020-00
Unavailable
47
PIN 1562723700
90249-12008-00
Unavailable
48
SPRING, (180-27236-00)
90501-10245-00
Unavailable
49
NUT (25K)
90179-06411-00
Unavailable
50
UNAVAILABLE IN PRICE BOOK
50A---
Unavailable
50
428 STD 106L
(94504-28106-00)
Unavailable
50
428 STD 108L
(94504-28108-00)
Unavailable
51
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
