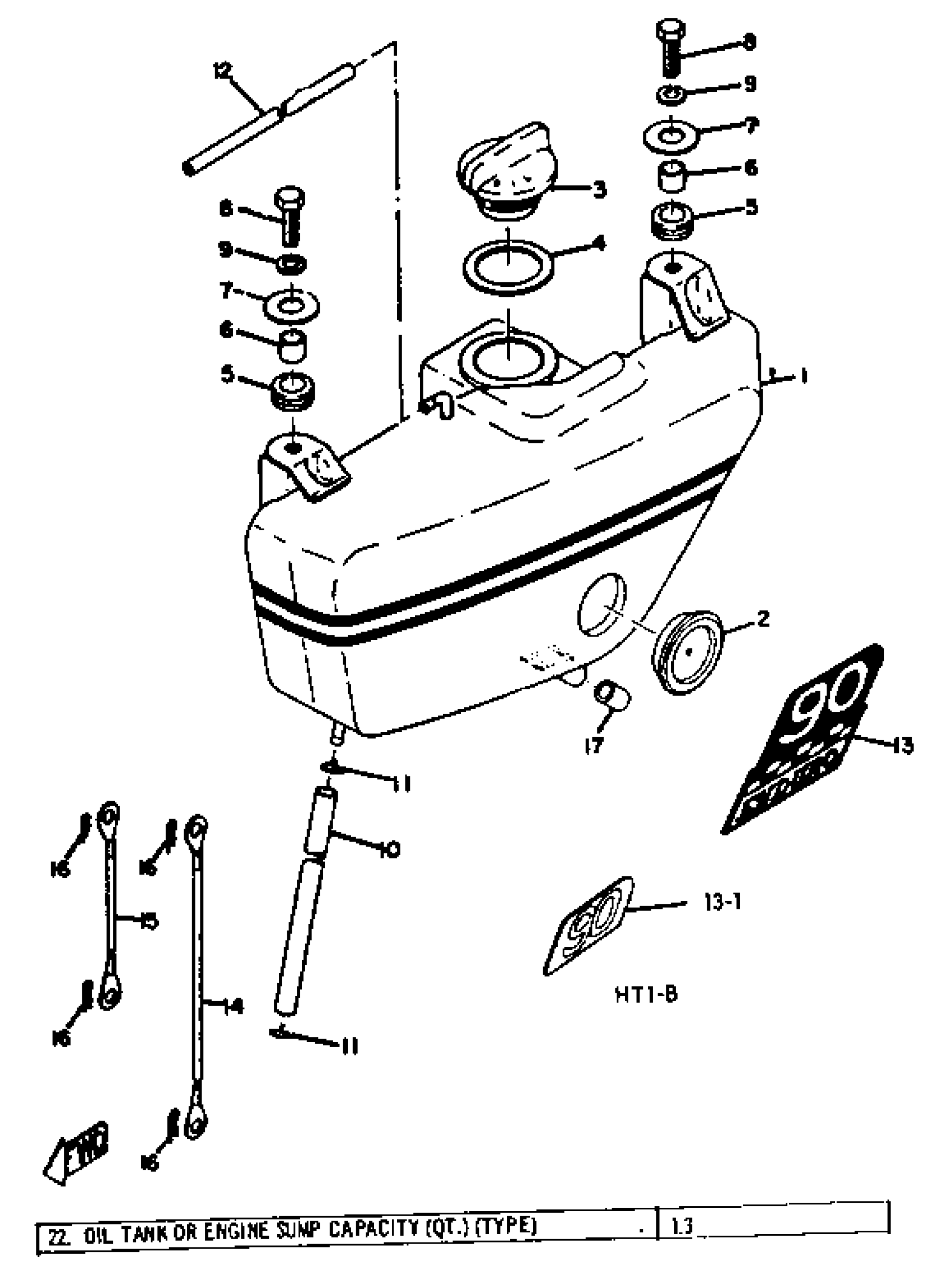

Yamaha HT1 (HT1) 1970 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(276-21705-00-01)

Unavailable

1

OIL TANK ASSEMBLY

(276-21705-00-02)

Unavailable

1

EMBLEM 7

(277-21787-01-00)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

4

GASKET 214217720000

90430-29114-00

$8.49

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR (J10)

90387-06026-00

$8.49

7

WASHER, PLATE

90201-06380-00

$0.60

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

WASHER, SPRING

92995-06100-00

Unavailable

10

HOSE (L1500)

90445-090F6-00

$31.99

11

CLIP 101235600

90467-08003-00

$10.49

12

HOSE

(90446-06006-00)

Unavailable

13

EMBLEM 7

(277-21787-00-00)

Unavailable

14

BOLT, TANK FITTING

(248-21775-00-00)

Unavailable

15

BOLT, TANK FITTING

(261-21775-00-00)

Unavailable

16

CLIP (156-83525-00)

90468-10050-00

Unavailable

17

DAMPER, OIL TANK

437-21779-00-00

Unavailable
