1970 Yamaha HT1 (HT1) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

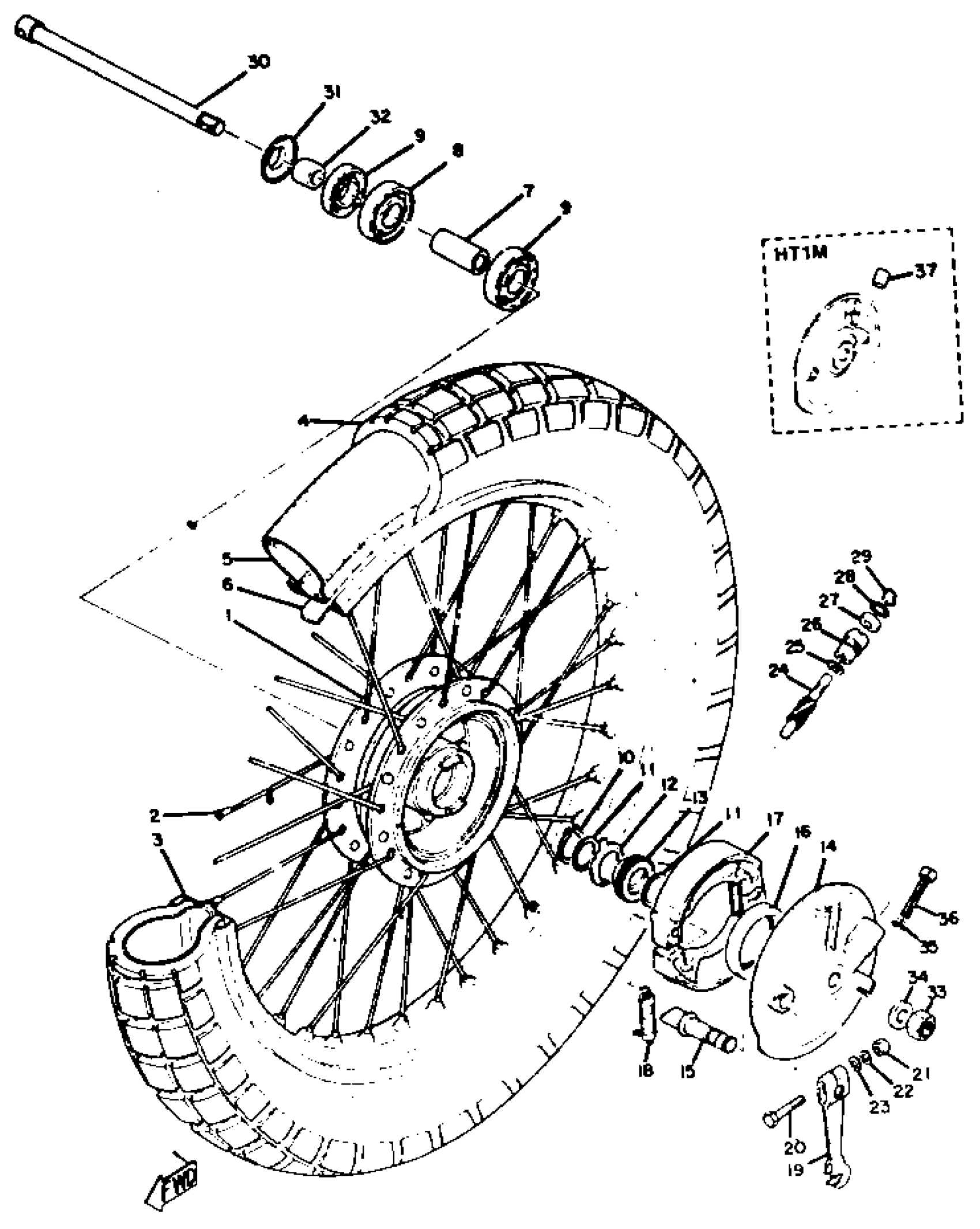

1970 Yamaha HT1 (HT1) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

2

SPOKE SET, INNER 1

(276-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(276-25197-90-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

275X18 YOKO ENDURO

(94127-18115-00)

1
Out of stock

4

300X18 YOKO Y620

(94130-18322-00)

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

BEARING

93306-30102-00

1
Out of stock

9

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

10

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

11

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

12

CLUTCH, METER

183-25149-00-00

—
Out of stock

13

GEAR, DRIVE

(248-25135-00-00)

1
Out of stock

14

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

SEAL,OIL

93105-47007-00

—
Out of stock

17

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

18

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

19

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

20

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

GEAR, METER

214-25138-00-00

—

$18.32

In stock

25

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

O-RING (26H)

93210-14579-00

—

$5.69

In stock

29

RING, STOP

102-25137-00-00

—
Out of stock

30

AXLE, WHEEL

357-25181-00-00

1
Out of stock

31

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

32

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

33

NUT(3DM)

95304-12600-00

—

$6.68

In stock

34

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

35

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

36

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

37

PLUG 288251390000

90338-18014-00

—

$7.57

In stock
