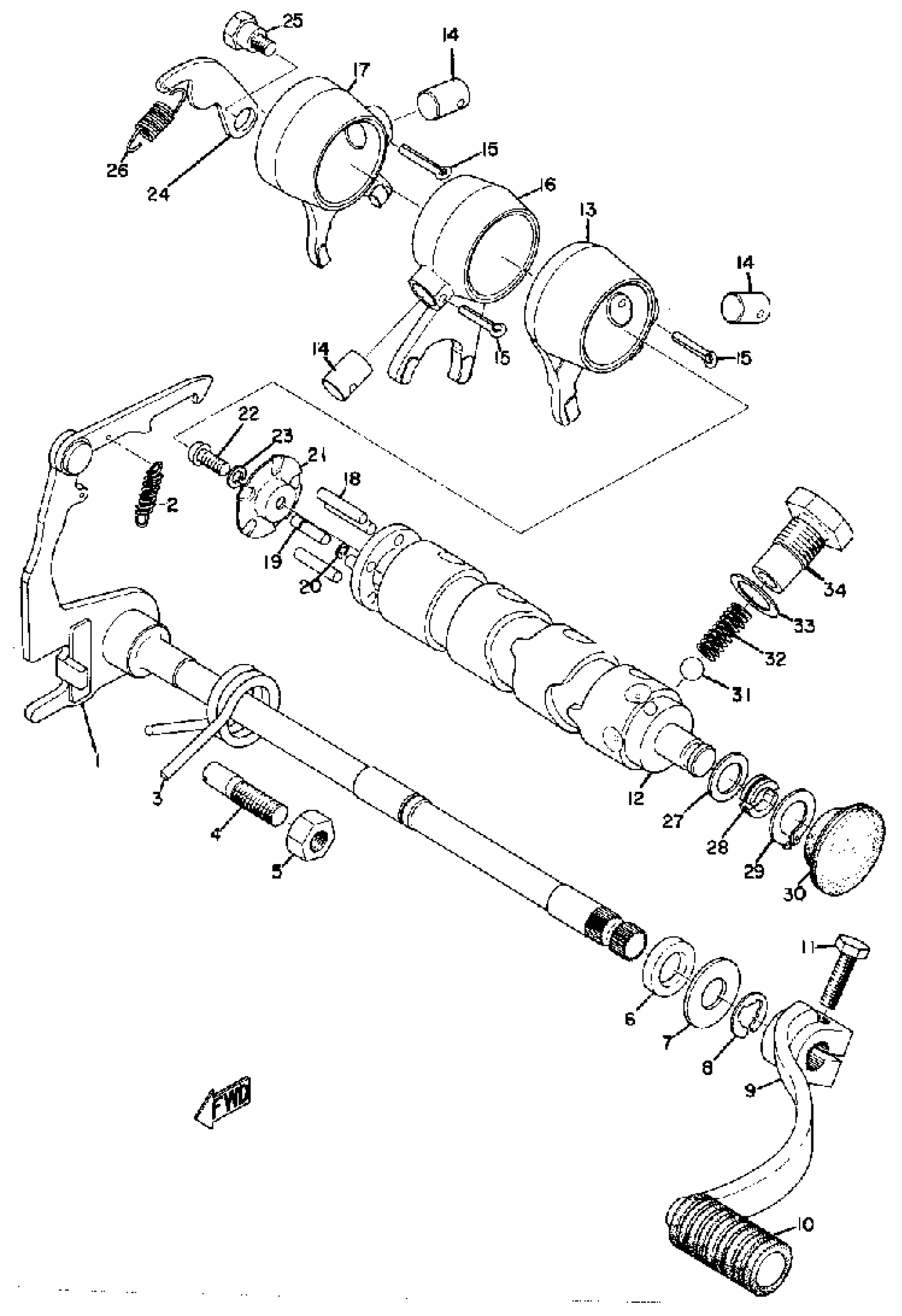

Yamaha HS1 (HS1) 1970 SHIFTER Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

(183-18101-01-00)

Unavailable

1

SHIFTER ASSEMBLY

(241-18500-00-00)

Unavailable

2

SPRING TENSION 132181230000

90506-09009-00

Unavailable

3

SPRING TORSION 132181240000

90508-32207-00

$10.49

4

UNAVAILABLE IN PRICE BOOK (132-18133-00)

91049-08014-00

Unavailable

5

NUT(6L2)

95333-08600-00

$2.49

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

PEDAL, SHIFT

(241-18111-00-93)

Unavailable

10

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

11

BOLT(3DM)

97024-06020-00

$8.49

12

CAM, SHIFT

(183-18541-02-00)

Unavailable

13

FORK, SHIFT 1

(183-18511-00-00)

Unavailable

14

PIN, STRAIGHT

(90250-10020-00)

Unavailable

15

PIN, COTTER

91490-25020-00

Unavailable

16

FORK, SHIFT 2

(183-18512-00-00)

Unavailable

17

FORK, SHIFT 3

(183-18513-00-00)

Unavailable

18

PIN,DOWEL (620)

93604-22050-00

Unavailable

19

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

20

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

21

PLATE, SIDE

164-18561-00-00

Unavailable

22

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

STOPPER LEVER ASSY

132-18140-01-00

Unavailable

25

BOLT

90109-06239-00

Unavailable

26

SPRING, TENSION (260)

90506-09112-00

Unavailable

27

WASHER PLATE 164185720000

90201-12166-00

Unavailable
