1970 Yamaha HS1 (HS1) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

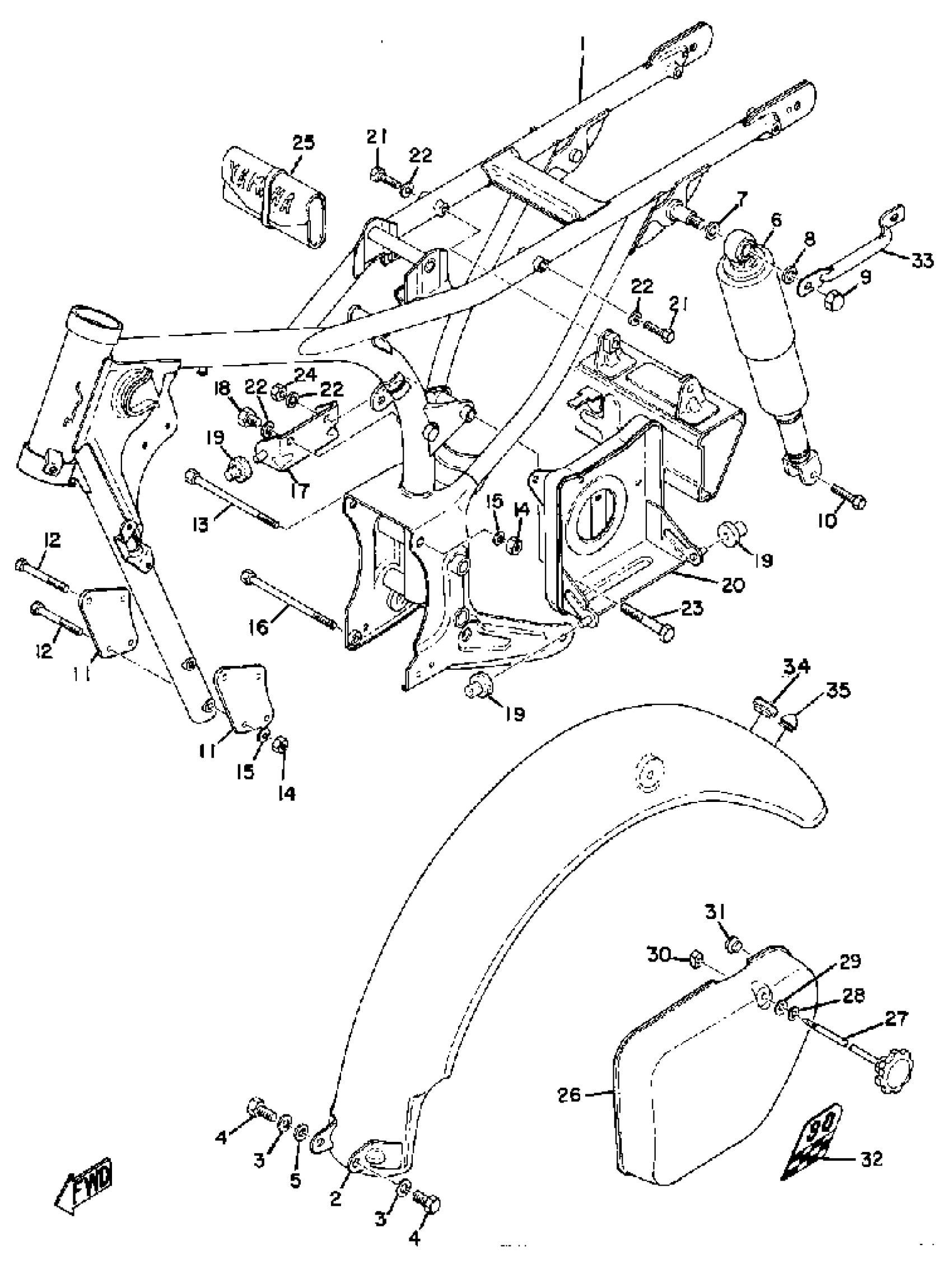

1970 Yamaha HS1 (HS1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(241-21110-00-33)

1
Out of stock

1

COVER, SIDE 1

(241-21711-00-01)

1
Out of stock

1

SHK/ABS ASSEMBLY, REAR

(287-22210-30-26)

1
Out of stock

2

FENDER, REAR

(183-21610-00-93)

1
Out of stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

BOLT(62E)

97013-08012-00

—

$2.48

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

SHK/ABS ASSEMBLY, REAR

(287-22210-30-65)

1
Out of stock

7

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

8

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

9

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

10

BOLT, DOME HEAD

(90106-08027-00)

1
Out of stock

11

STAY, ENGINE 2

(183-21315-00-00)

1
Out of stock

12

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

13

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

14

NUT(6L2)

95333-08600-00

—

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

BOLT,FLANGE

95817-08135-00

1
Out of stock

17

HINGE

(183-21797-00-00)

1
Out of stock

18

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

19

BUSH, SPEC''L RUBBER

(90385-05017-00)

1
Out of stock

20

BOX

(183-21170-01-00)

1
Out of stock

21

BOLT

97014-08040-00

—

$5.26

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

BOLT (663)

97013-08060-00

—

$3.25

In stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

TOOL KIT

1E7-W2810-00-00

1
Out of stock

26

COVER, SIDE 1

(241-21711-00-N7)

1
Out of stock

27

KNOB, SIDE COVER 1

(183-21714-00-00)

1
Out of stock

28

WASHER, SPECIAL 1

(241-21715-00-00)

1
Out of stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

NUT(650)

95380-06700-00

—

$6.17

In stock

31

DAMPER, LOCATING 1

(137-21778-00-00)

1
Out of stock

32

EMBLEM 7

(241-21787-00-00)

1
Out of stock

33

HANDLE, STANDING

(183-21165-00-00)

1
Out of stock

34

GROMMET

214-84154-60-00

1
Out of stock

35

DAMPER 2

5A8-21639-00-00

—

$8.17

In stock
