1970 Yamaha HS1 (HS1) Crankcase Diagram

← All diagrams

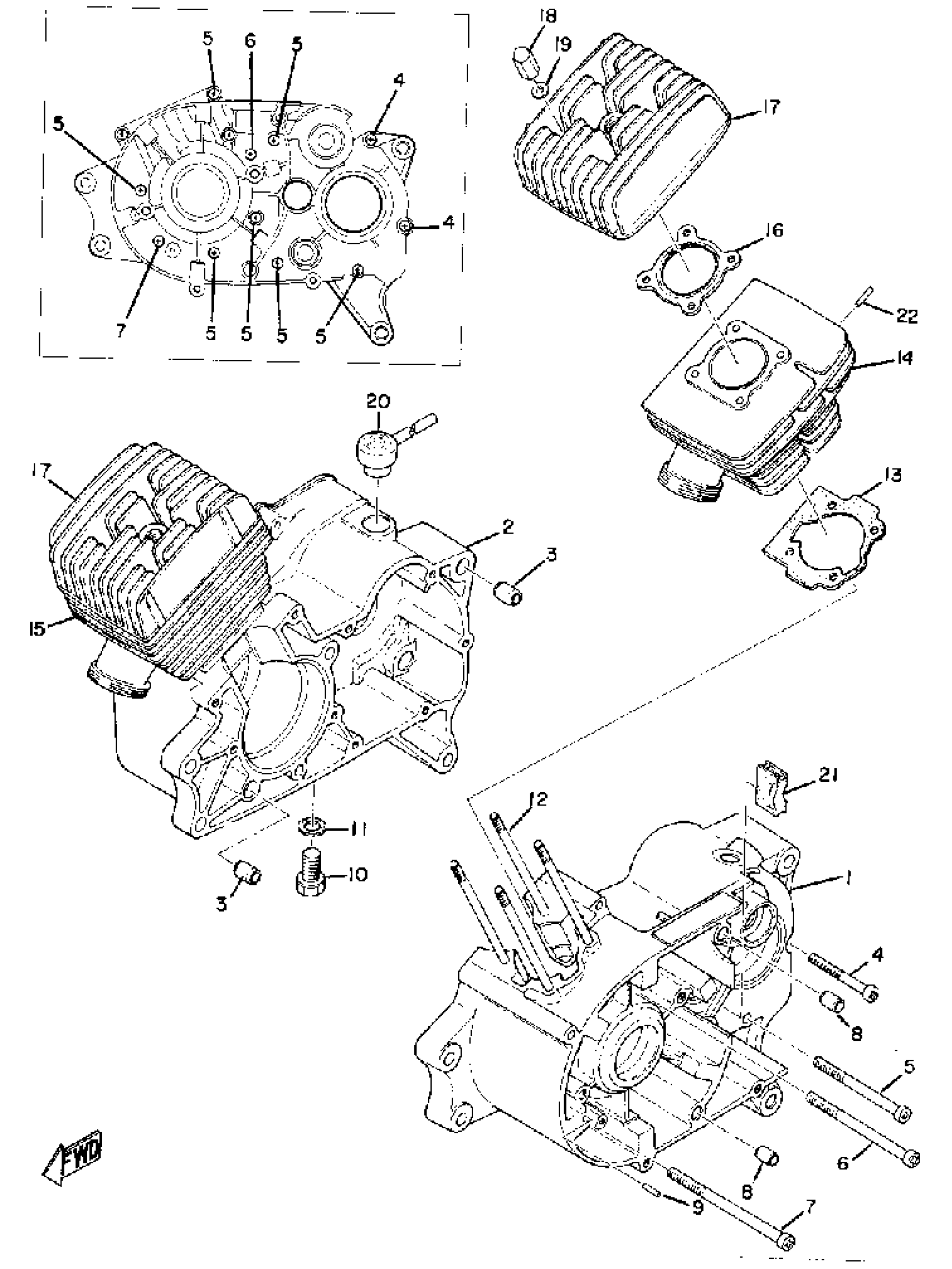

Find the part on the Crankcase diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha HS1 (HS1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(241-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(241-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

5

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

6

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

7

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

8

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

9

PIN, DOWEL

93603-14026-00

1
Out of stock

10

1

$6.71

In stock

11

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

12

BOLT STUD 1091136100

90116-06026-00

1

$2.69

In stock

13

GASKET,CYLINDER

195-11351-10-00

1
Out of stock

14

CYLINDER 1

(241-11311-00-00)

1
Out of stock

15

CYLINDER 2

(241-11321-00-00)

1
Out of stock

16

GASKET, CYLINDER HEAD 1

134-11181-01-00

1
Out of stock

17

HEAD, CYLINDER 1

(132-11111-01-00)

1
Out of stock

18

NUT CAP 126111716000

90176-06002-00

—

$4.43

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

BREATHER

206-15371-00-00

1
Out of stock

21

GROMMET

(241-15357-01-00)

1
Out of stock

22

PIN, DOWEL

93602-10061-00

1
Out of stock
