2010 Suzuki GZ250K8 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

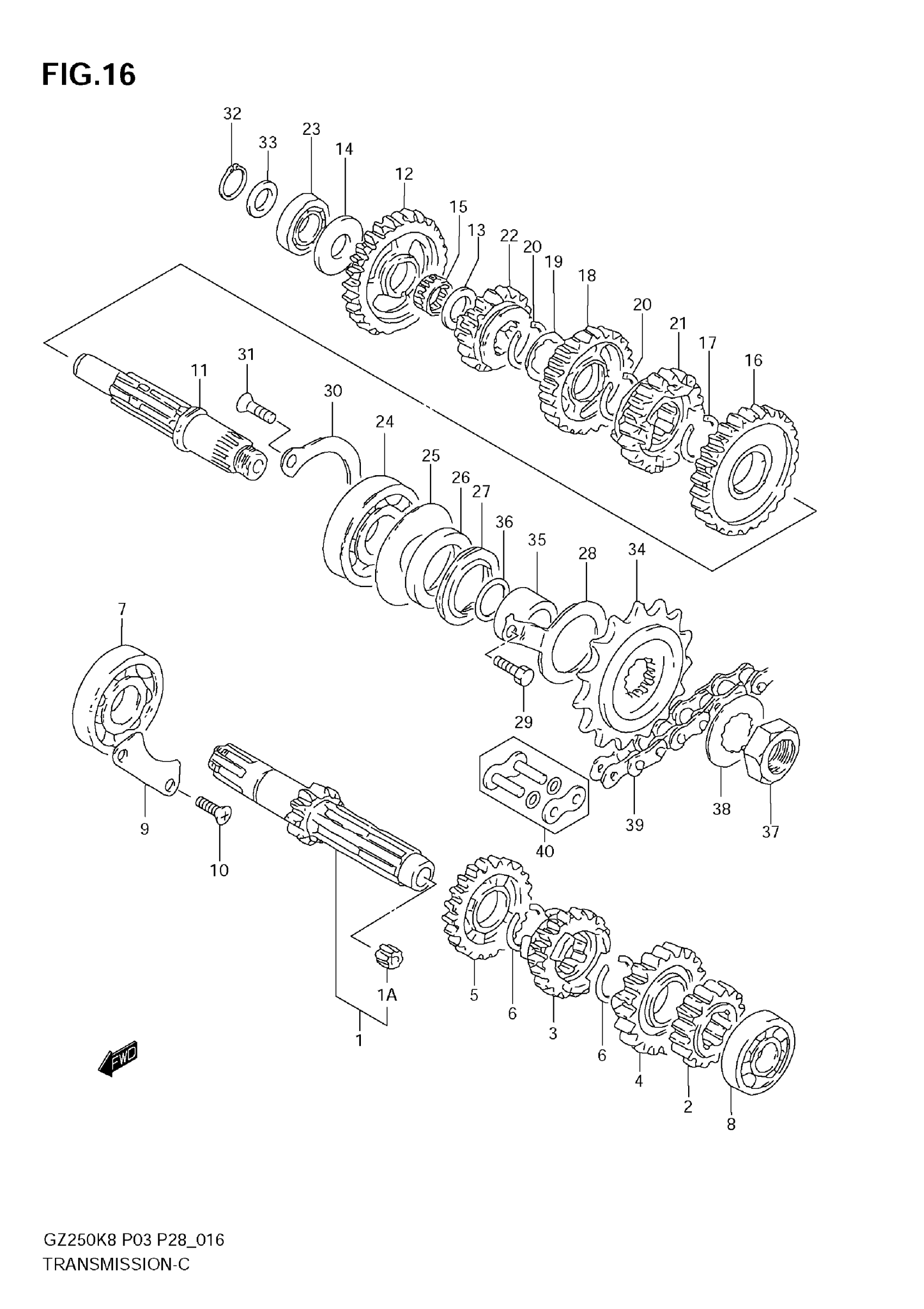

2010 Suzuki GZ250K8 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:11)

24120-38203

1
Out of stock

1A

BUSH

24125-38201

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-32412

1
Out of stock

3

GEAR, 3RD DRIVE (NT:19)

24231-38201

1
Out of stock

4

GEAR, 4TH DRIVE (NT:20)

24241-32401

1
Out of stock

5

GEAR, 5TH DRIVE (NT:22)

24251-32420

1
Out of stock

6

CIRCLIP

09380-22006

2
Out of stock

7

BEARING, RH (22X56X16)

09262-22028

1
Out of stock

8

BEARING, LH (17X40X12)

09262-17046

1
Out of stock

9

RETAINER, BEARING

24741-38200

1
Out of stock

10

SCREW (6X12)

09125-06110

2
Out of stock

11

SHAFT, DRIVE

24130-38301

1
Out of stock

12

GEAR, 1ST DRIVEN (NT:29)

24311-32401

1
Out of stock

13

WASHER (17X28X1.0)

09181-17195

1
Out of stock

14

THRUST WASHER

08211-17363

1
Out of stock

15

BEARING (17X21X9.8)

09263-17004

1
Out of stock

16

GEAR, 2ND DRIVEN (NT:27)

24320-32411

1
Out of stock

17

CIRCLIP

09380-22006

1
Out of stock

18

GEAR, 3RD DRIVEN (NT:24)

24330-38202

1
Out of stock

19

LOCK WASHER

09167-22011

1
Out of stock

20

CIRCLIP

09380-22006

2
Out of stock

21

GEAR, 4TH DRIVEN (NT:20)

24341-38201

1
Out of stock

22

GEAR, 5TH DRIVEN (NT:18)

24351-38201

1
Out of stock

23

BEARING (17X36X12)

09264-17001

1
Out of stock

24

BEARING (22X56X16)

09262-22013

1
Out of stock

25

WASHER (35X55X1)

09160-35007

1
Out of stock

26

OIL SEAL (30X43X5)

09282-30004

1
Out of stock

27

OIL SEAL (30X43X7)

09283-30041

1
Out of stock

28

RETAINER, OIL SEAL

24751-38210

1
Out of stock

29

BOLT

01500-0612B

2
Out of stock

30

RETAINER, BEARING

24752-32400

1
Out of stock

31

SCREW

02122-06011

—
Out of stock

32

CIRCLIP This part replaces 08331-3117A.

08331-31179

1
Out of stock

33

WASHER (17X24X1.0)

09181-17139

1
Out of stock

34

SPROCKET,ENGINE This part replaces 27510C25D00J000.

27510-25D01

1
Out of stock

35

SPACER

27531-38300

1
Out of stock

36

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

37

NUT

09140-18008

1
Out of stock

38

LOCK WASHER

09167-22012

1
Out of stock

39

CHAIN ASSY,DRIV This part replaces 27600C14A10J110.

27600-14A20-110

1
Out of stock

40

JOINT SET | OPT

27620C14A10J000

—
Out of stock
