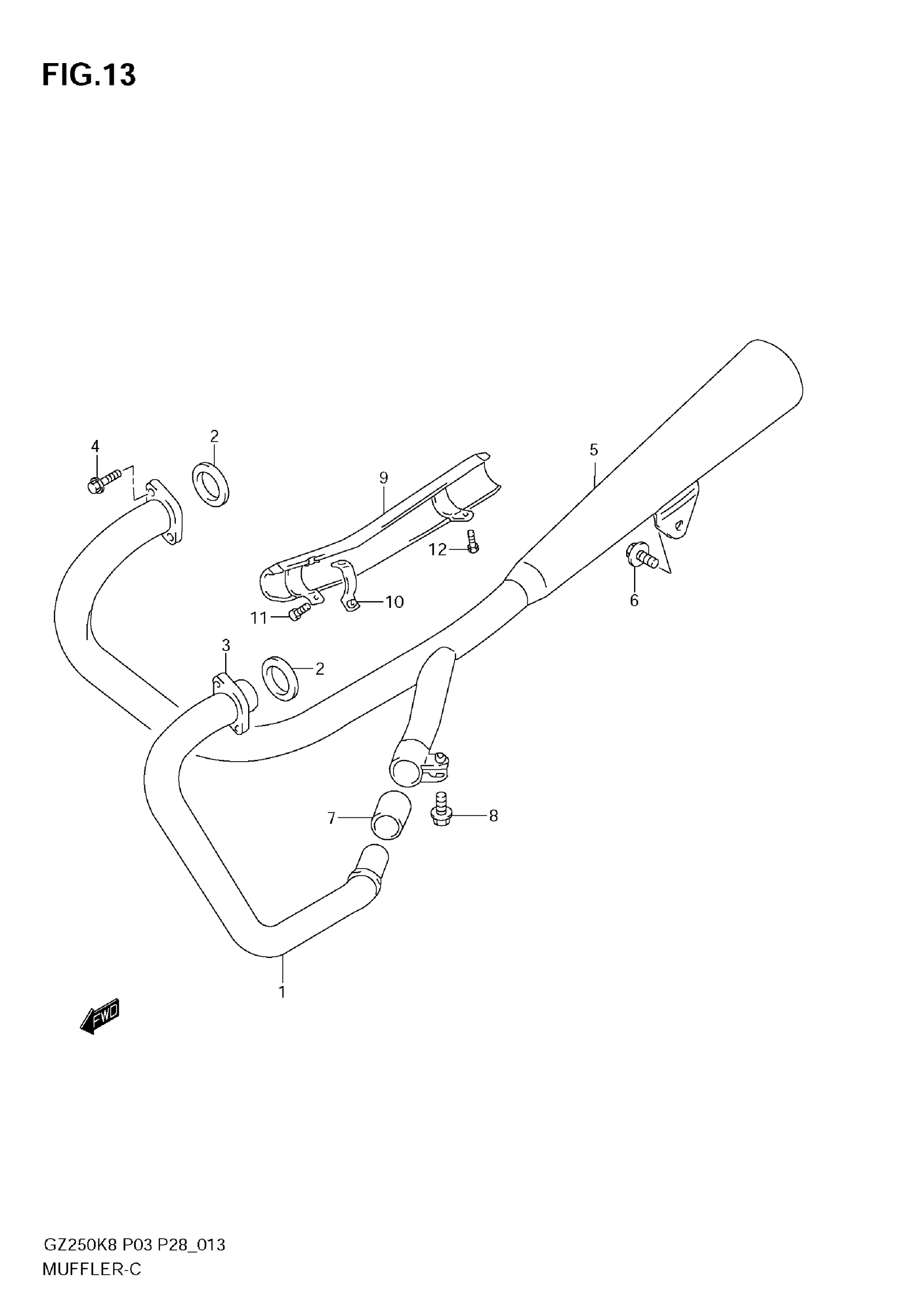

Suzuki GZ250 (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST LH

14160-13F00

$247.38

2

GASKET, EXHAUST PIPE

14181-37D00

$4.18

3

CLAMP, EXHAUST PIPE LH

14182-37D00

$19.32

4

BOLT

09103-06203

$3.58

5

MUFFLER This part replaces 14305-13F01.

14305-13F02-H01

$388.60

6

BOLT

01580-1030B

$5.63

7

CONNECTOR, MUFFLER

14771-19B00

$16.05

8

BOLT

01550-0835B

$4.42

9

COVER, MUFFLER

14780-13F01

Unavailable

10

CLAMP, MUFFLER COVER

14785-38301

$8.32

11

SCREW

02112-0520B

$1.86

12

SCREW

02112-7610B

Unavailable
