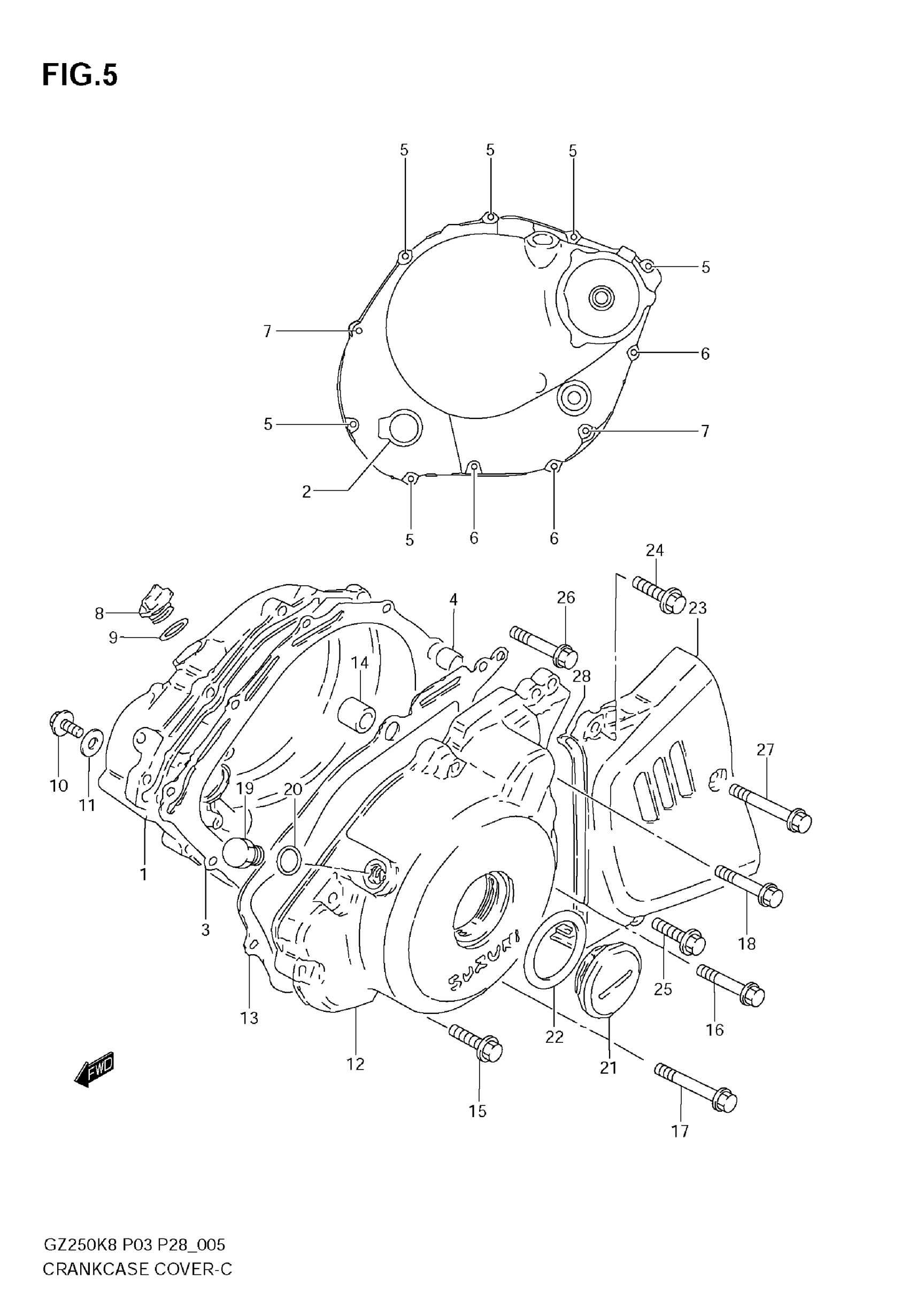

Find the part on the Crankcase Cover diagram for your 2009 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GZ250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-38302

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

GASKET, CLUTCH COVER

11482-38312

1
Out of stock

4

PIN

04211-13189

2
Out of stock

5

BOLT (6X25)

09103-06212

6
Out of stock

6

BOLT (6X35)

09103-06214

3
Out of stock

7

BOLT (6X45)

09103-06224

2
Out of stock

8

PLUG (20X10)

09259-20007

1
Out of stock

9

O RING (D:3.1, ID:16.8)

09280-17003

1
Out of stock

10

1

$3.63

In stock

11

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

12

COVER, MAGNETO

11351-38300

1
Out of stock

13

GASKET, MAGNETO COVER

11483-37D00

1
Out of stock

14

PIN

04211-13189

2
Out of stock

15

BOLT (6X25)

09103-06212

3
Out of stock

16

BOLT (6X35)

09103-06214

1
Out of stock

17

BOLT (6X50)

09103-06238

2

$2.85

In stock

18

BOLT (6X60)

09103-06261

1

$3.13

In stock

19

PLUG, T.D.C.

09247-12104

1
Out of stock

20

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

21

PLUG

09259-36011

1
Out of stock

22

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

23

COVER, ENGINE SPROCKET

11361-38300

1
Out of stock

24

BOLT (5X20)

09103-05019

1
Out of stock

25

BOLT

01547-05257

1
Out of stock

26

BOLT (5X30)

09103-05015

1
Out of stock

27

BOLT (5X45)

09103-05021

1
Out of stock

28

DAMPER, ENGINE SPROCKET COVER

11362-38300

1
Out of stock
