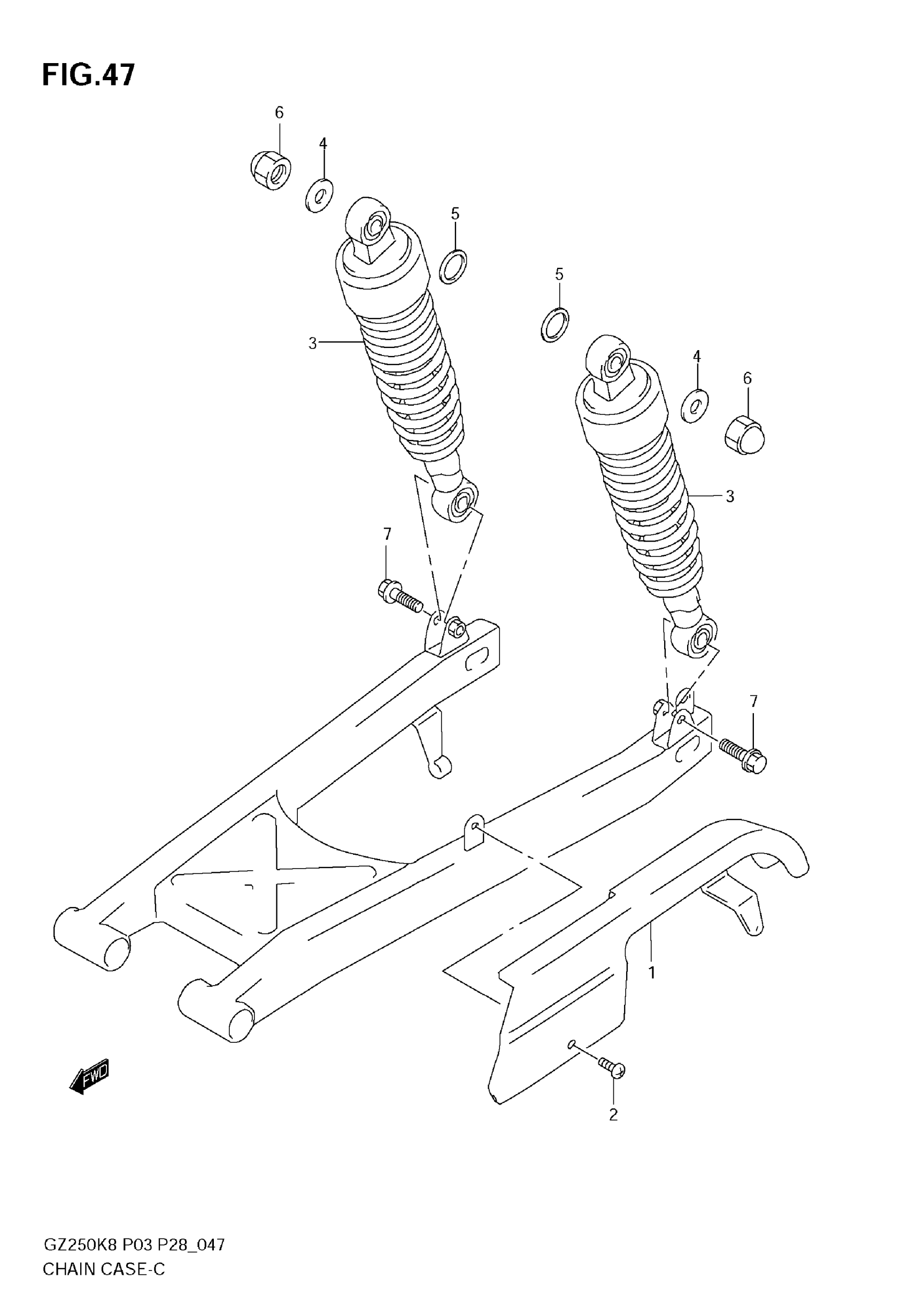

Suzuki GZ250 (2009) CHAIN CASE Diagram

#

Description

Price

1

CASE, CHAIN

61310-12FB0

Unavailable

2

SCREW

02142-0610B

$2.35

3

ABSORBER ASSY,R This part replaces 62100-13FA0.

62100-13FB0

$301.57

4

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.19

5

WASHER, INNER

08322-01127

$1.86

6

NUT

08313-10107

$2.53

7

BOLT, LOWER (10X37)

09103-10019

$2.71
