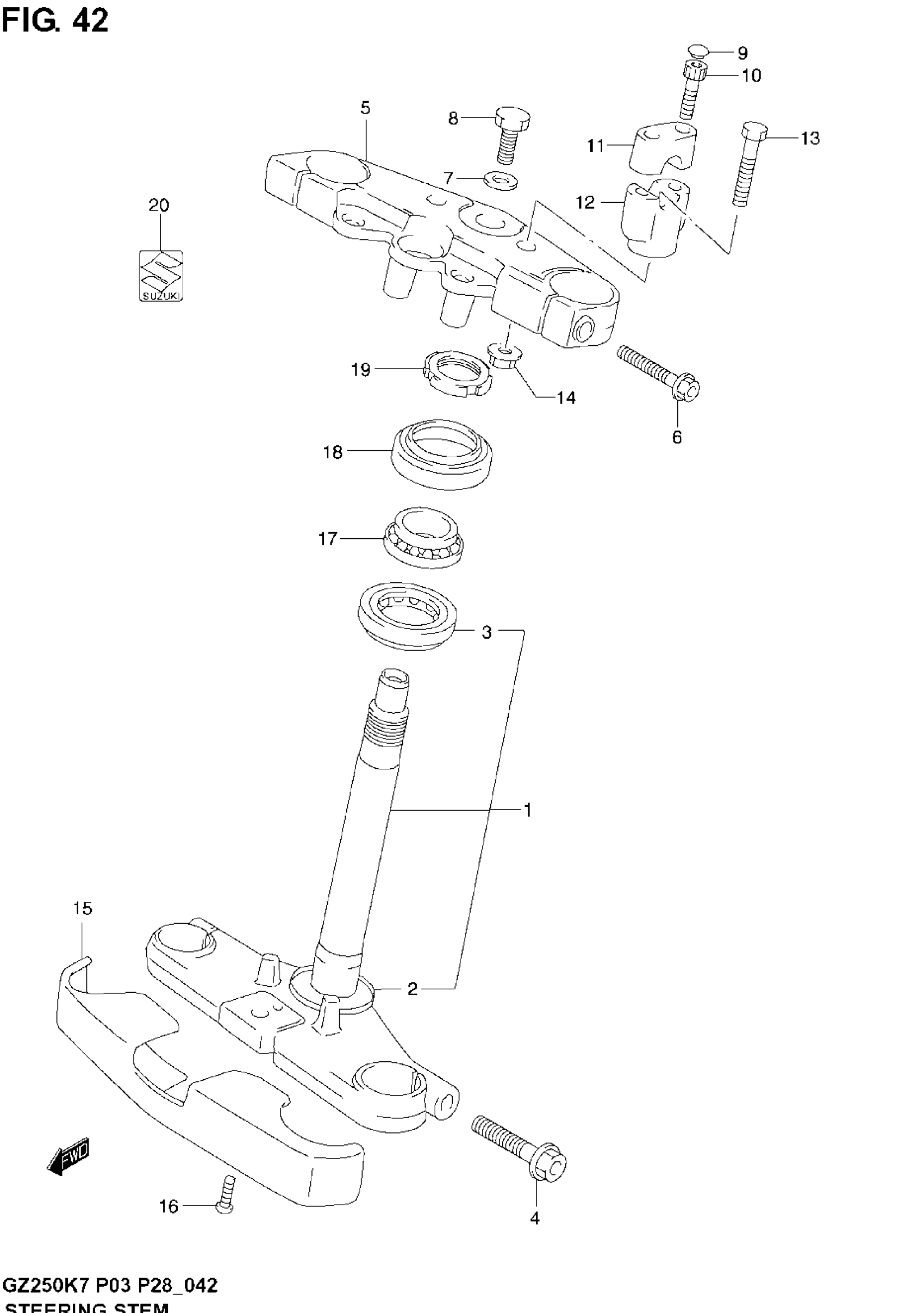

Suzuki GZ250 (2007) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-12FA0

Unavailable

2

SEAL, LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BOLT (10X40)

01550-10407

$5.10

5

HEAD, STEERING STEM

51311-12FA0

Unavailable

6

BOLT (8X45)

01550-08457

$2.63

7

WASHER This part replaces 51356-12FA0.

51356-43530

$7.40

8

BOLT This part replaces 51352-02B00.

51352-43530

$17.40

9

CAP

09250-06011

$2.53

10

BOLT (8X25)

07130-08257

$3.14

11

HOLDER, HANDLE UPPER

56211-12FA0

Unavailable

12

HOLDER,HANDLE U This part replaces 56221-12FA0.

56221-12FD0

Unavailable

13

BOLT, HOLDER

51451-12FA0

$4.47

14

NUT This part replaces 08319-31108.

08319-31107

$2.73

15

COVER, FRONT FORK UNDER This part replaces 51871C12F00J000.

51871-12F00

Unavailable

16

SCREW (6X16)

09139-06083

$2.24

17

BEARING (25X47X15)

09267-25009

$56.72

18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

19

NUT, STEM

51631-28000

$19.60

20

EMBLEM "S" | MODEL K4/K5/K6/K7

68281-35F00

$15.48
