Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 14

31100-38300-H17

$736.23

2

ARMATURE

31311-49211-H17

Unavailable

3

OIL SEAL

31153-49210

$27.32

4

SHIM SET

31170-43400

Unavailable

5

O RING

31264-44110

$13.40

6

HOLDER, BRUSH

31132-27A01

$83.02

7

SPRING

31135-65010

$5.10

8

BRUSH (+)

31130-38300

$20.82

9

BUSH

31172-38300

$5.24

10

BUSH, B

31171-38300

$10.08

11

O RING

31143-38300

$5.75

12

BOLT

31281-87402

Unavailable

13

O RING

31156-38300

$5.10

14

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

15

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

16

NUT This part replaces 08361-35068.

08361-3506A

$1.81

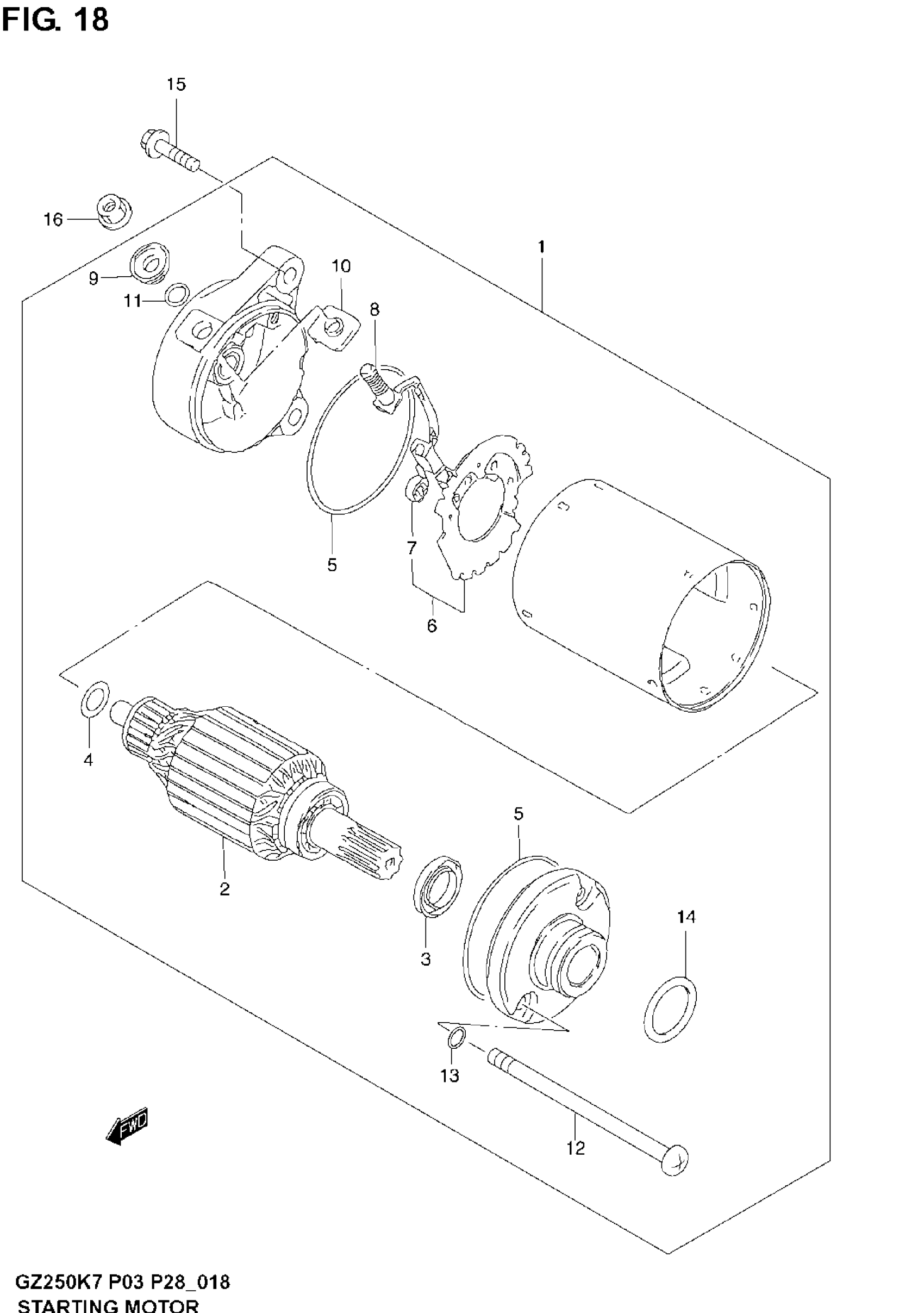

Suzuki GZ250 (2007) STARTING MOTOR Diagram

MOTOR ASSY, STARTING | Includes Item(s) 2 - 14

ARMATURE

OIL SEAL

SHIM SET

O RING

HOLDER, BRUSH

SPRING

BRUSH (+)

BUSH

BUSH, B

O RING

BOLT

O RING

.O-RING (D:3,ID:24.5)

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

NUT This part replaces 08361-35068.
