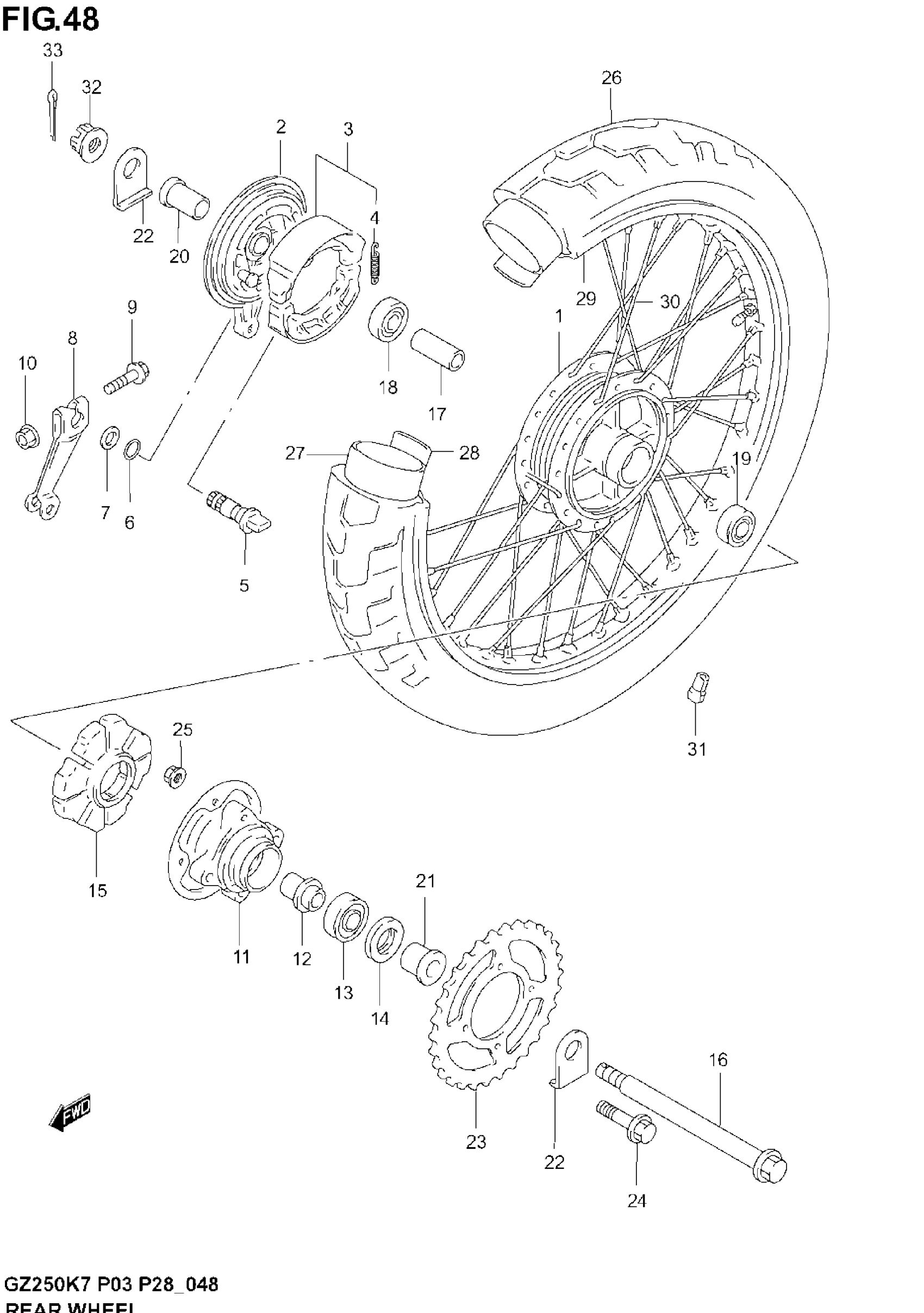

Suzuki GZ250 (2007) REAR WHEEL Diagram

HUB, REAR WHEEL

64110-07005

Unavailable

PANEL, REAR BRAKE ANCHOR

64210-39115

$171.37

SHOE SET, BRAKE | Includes Item(s) 4 This part replaces 54041-07E00.

54401-07820

$46.63

SPRING

55421-20E00

$2.80

CAM, BRAKE

54441-29305

$22.58

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.44

WASHER

09160-14055

$2.49

LEVER, BRAKE CAM

64451-30501

$19.61

BOLT

01550-06407

$2.80

NUT

08316-10067

$2.34

DRUM, SPROCKET MOUNTING

64610-38300

Unavailable

RETAINER, MOUTING DRUM

64733-38300

Unavailable

BEARING, DRUM (20X47X14)

09262-20069

$21.64

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.60

SHOCK ABSORBER, HUB

64651-07001

$19.11

AXLE, REAR

64711-12F11

Unavailable

SPACER, BEARING (15.3X21.7X63)

09180-15011

$8.90

BEARING, WHEEL RH

08143-62027

$14.88

BEARING, WHEEL RH This part replaces 08143-63027.

08153-63027

$27.55

SPACER, AXLE RH This part replaces 64741C12F00J000.

64741-12F00

Unavailable

SPACER, AXLE LH This part replaces 64751C12F00J000.

64751-12F00

Unavailable

WASHER, GUIDE

64712-08301

Unavailable

SPROCKET, REAR (NT:41)

64511-13FA0

Unavailable

BOLT (10X40)

09103-10044

$5.10

NUT This part replaces 08319-31108.

08319-31107

$2.80

TIRE,RR(130/90, This part replaces 65100-12FA0.

65100-12FA0-LCP

$560.05

TUBE ASSY, WHEEL INNER

65200-12FA0

Unavailable

PROTECTOR, INNER TUBE

65261-12FA0

$18.13

RIM, REAR WHEEL (15XMT3.00)

65311-12F00

Unavailable

SPOKE SET, REAR WHEEL

65320-12F00

$79.62

BALANCER WHEEL (15G) | MODEL K3/K4/K5 This part replaces 55411-11000.

55411-26G00

$8.73

BALANCER WHEEL (30G) | MODEL K3/K4/K5 This part replaces 55412-11000.

55413-41F00

$9.95

BALANCER WHEEL (15G) | MODEL K6/K7

55411-26G00

$8.73

BALANCER, WHEEL NO. 2 | MODEL K6/K7

55412-41F00

$8.12

NUT

09159-14018

Unavailable

PIN This part replaces 04111-30258.

04111-3030A

$1.41
