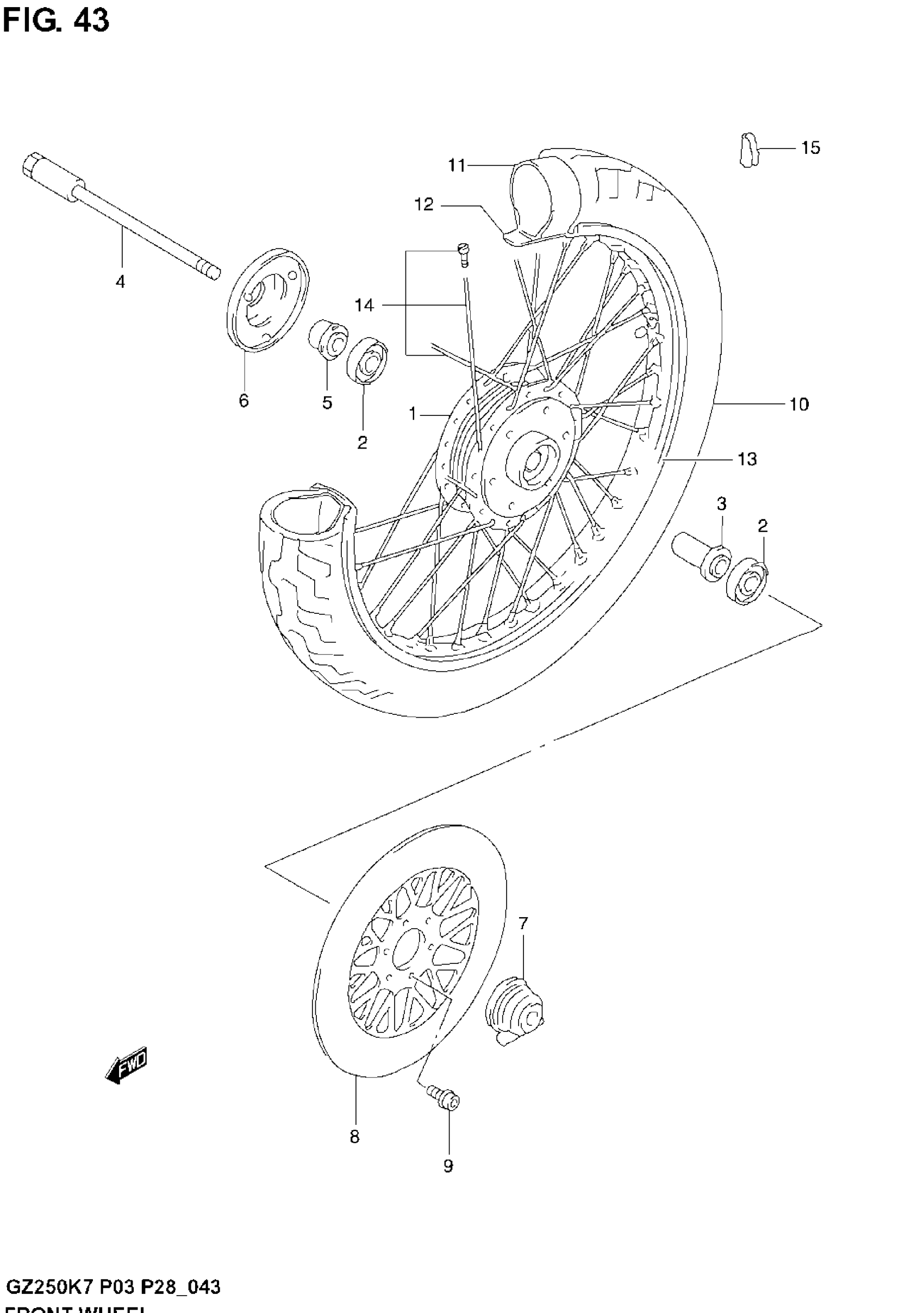

Suzuki GZ250 (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB SET, FRONT | MODEL K3

54011-0AE00

Unavailable

1

HUB SET, FRONT | MODEL K4

54111-47021

Unavailable

1

HUB SET, FRONT | MODEL K5/K6/K7; Includes Item(s) 2 - 3

54111-25D00

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER, BEARING

54730-18400

$23.08

4

AXLE, FRONT

54711-12FA0

$42.25

5

SPACER, BEARING RH

54740-18410

$23.08

6

COVER, HUB RH | MODEL K3/K4

54871-45000

$10.15

7

BOX ASSY,SPEEDO This part replaces 54600-12F00.

54600-12F01

$121.62

8

DISC, FRONT BRAKE LH

59221-12FA0

$165.58

9

BOLT (8X30)

09106-08131

$4.53

10

TIRE, FRONT (110/90-16)

55100-12FA0

Unavailable

11

TUBE ASSY, WHEEL INNER

55200-12FA0

Unavailable

12

PROTECTOR,INNER This part replaces 55261-12FA0.

55261-24H00

$18.13

13

RIM, FRONT WHEEL (16XMT2.50) | MODEL K3

55311-0AE00

$309.07

13

RIM, FRONT WHEEL (16XMT2.50) | MODEL K5/K6/K7

55311-12F01

Unavailable

14

SPOKE SET, FRONT WHEEL | MODEL K3

55320-0AE00

Unavailable

14

SPOKE SET, FRONT WHEEL | MODEL K5/K6/K7

55320-12F00

Unavailable

15

BALANCER WHEEL (15G) | MODEL K3/K4/K5 This part replaces 55411-11000.

55411-26G00

$8.73

15

BALANCER WHEEL (30G) | MODEL K3/K4/K5 This part replaces 55412-11000.

55413-41F00

$9.95

15

BALANCER WHEEL (15G) | MODEL K6/K7

55411-26G00

$8.73

15

BALANCER, WHEEL NO. 2 | MODEL K6/K7

55412-41F00

$8.12
