2007 Suzuki GZ250 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2007 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

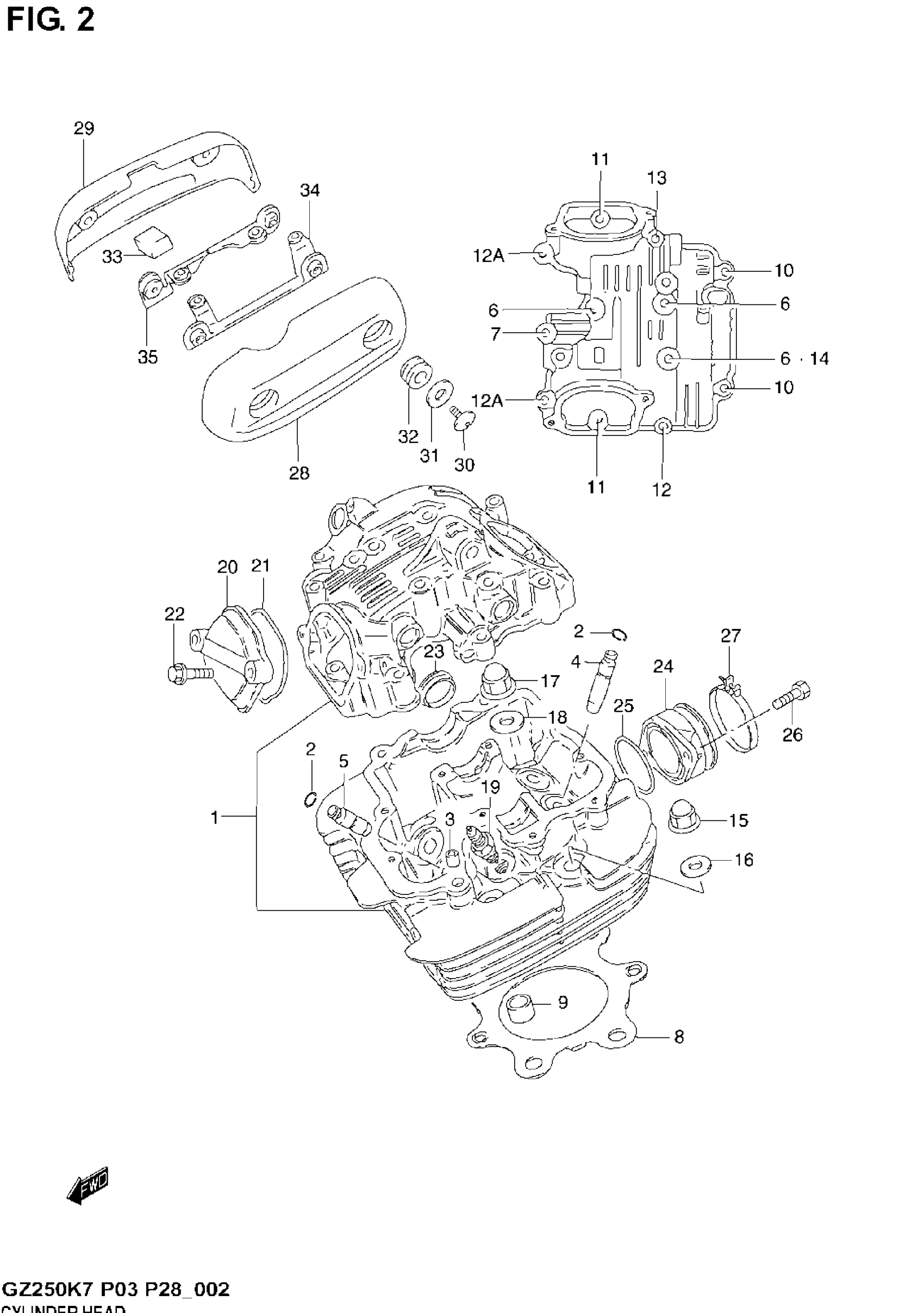

2007 Suzuki GZ250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-25D02

1
Out of stock

2

.RING (10X85)

09381-10004

4
Out of stock

3

PIN (6.2X8X11)

09206-08001

2
Out of stock

4

GUIDE, VALVE (OS: 0.3) | OPT

11115-38270

2
Out of stock

5

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

2
Out of stock

6

BOLT This part replaces 01550-06603.

01550-0660A

3
Out of stock

7

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

8

GASKET, CYLINDER HEAD This part replaces 11141-38201.

11141-25D11

1
Out of stock

9

PIN

04211-13189

2
Out of stock

10

BOLT (6X120)

09103-06148

2
Out of stock

11

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

12

BOLT This part replaces 01550-06453.

01550-0645A

1
Out of stock

12A

BOLT This part replaces 01550-06503.

01550-0650A

2
Out of stock

13

BOLT This part replaces 01550-06603.

01550-0660A

1
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

NUT

09159-10026

2
Out of stock

16

WASHER

09160-10039

2
Out of stock

17

NUT

09159-10069

2
Out of stock

18

GASKET (10.5X22X2)

09168-10017

2
Out of stock

19

SPARK PLUG (DR8EA)

09482-00399

1
Out of stock

19

SPARK PLUG (X24ESR-U)

09482-00223

1
Out of stock

20

CAP, INSPECTION

11175-38202

2
Out of stock

21

O RING

09280-55003

2
Out of stock

22

BOLT This part replaces 01550-06253.

01550-0625A

4
Out of stock

23

PLUG

09241-30004

1
Out of stock

24

PIPE, INTAKE

13110-13F00

1

$34.78

In stock

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

1
Out of stock

26

SCREW This part replaces 02122-06163.

02122-0616A

2
Out of stock

27

CLAMP

09402-48208

1
Out of stock

28

CAP, CYLINDER HEAD COVER LH

11171-13F00

1
Out of stock

29

CAP, CYLINDER HEAD COVER RH

11172-13F00

1
Out of stock

30

BOLT, HEAD COVER CAP

11178-12F10

4
Out of stock

31

WASHER, HEAD COVER (6.5X24X1.6

09160-06134

1
Out of stock

32

CUSHION

09320-13015

3
Out of stock

33

DAMPER, HEAD CAP RH

11178-13F00

1
Out of stock

34

BRACKET, HEAD CAP LH

11179-13F01

1
Out of stock

35

BRACKET, HEAD CAP RH

11179-13F11

1
Out of stock
