2002 Suzuki GZ250 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 2002 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

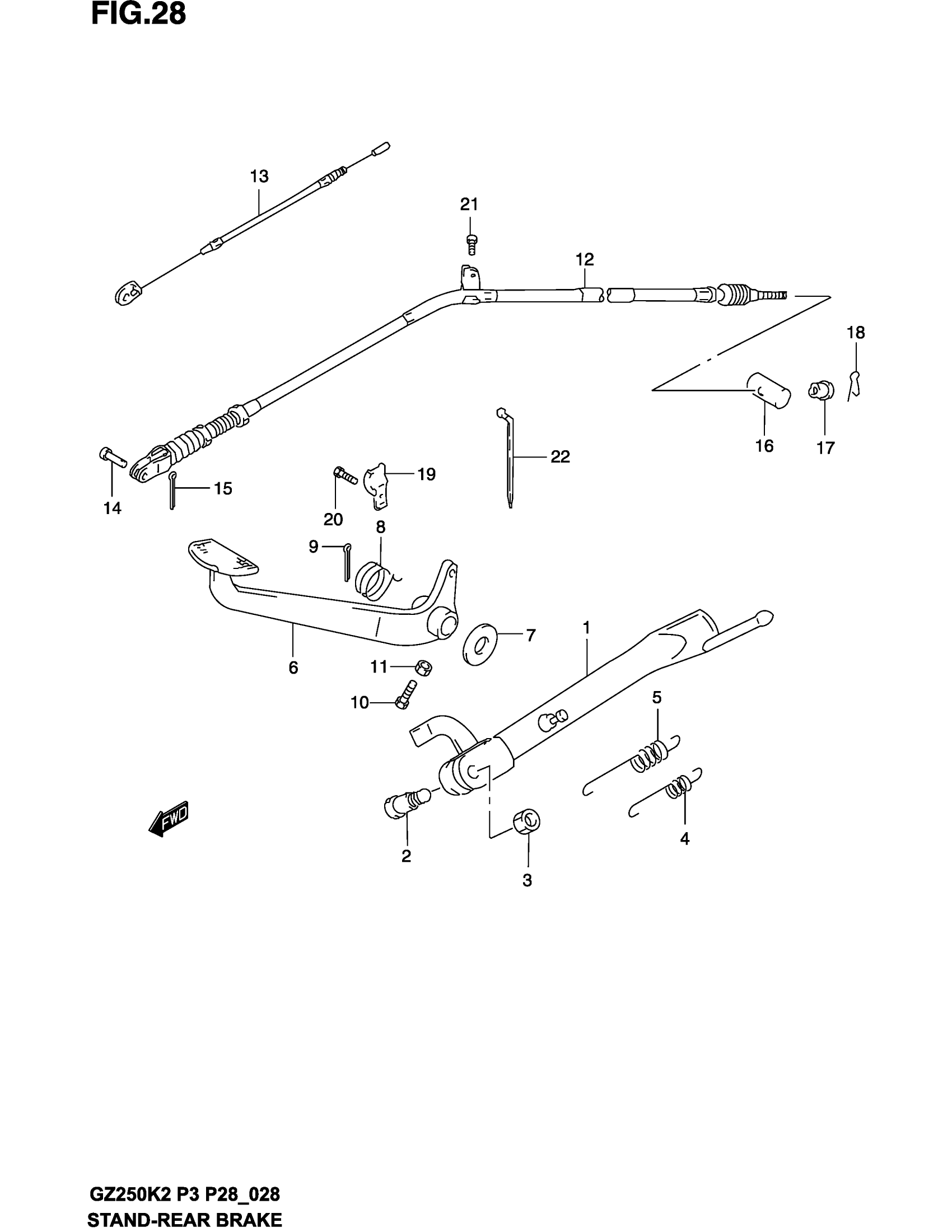

2002 Suzuki GZ250 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-13F10

1
Out of stock

2

BOLT

09111-10027

1
Out of stock

3

NUT

09159-10097

1
Out of stock

4

SPRING

09443-14066

1
Out of stock

5

SPRING

09443-19012

1

$5.70

In stock

6

PEDAL, BRAKE

43110-13FA0

1
Out of stock

7

WASHER (16.5X22X1.0)

09160-16043

1
Out of stock

8

SPRING

09448-31034

1
Out of stock

9

PIN This part replaces 04111-30258.

04111-3030A

1
Out of stock

10

BOLT

01500-06207

1
Out of stock

11

.NUT

08310-00067

1
Out of stock

12

CABLE, REAR BRAKE

58510-13F00

1
Out of stock

13

CABLE, STOP LAMP SWITCH

58830-13F00

1
Out of stock

14

PIN

09200-05001

1
Out of stock

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

16

.PIN (13X18) This part replaces 09209-13001.

09209-13018

1
Out of stock

17

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

18

SNAP PIN

09385-06012

1
Out of stock

19

GUIDE, REAR BRAKE CABALE

58621-12F00

1
Out of stock

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

22

CLAMP (L:145)

09407-14407

2
Out of stock
