2002 Suzuki GZ250 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2002 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

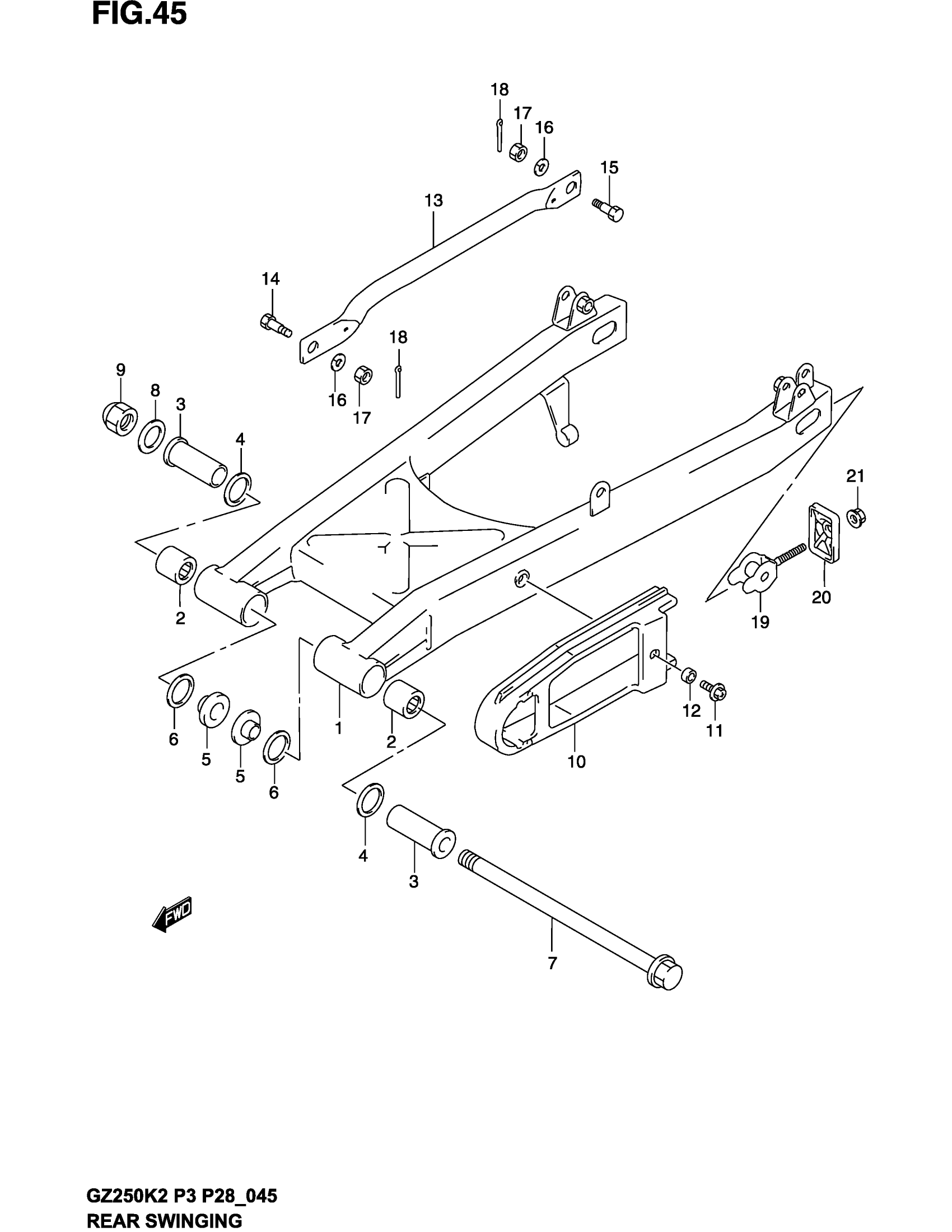

2002 Suzuki GZ250 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2

61000-13F10

1
Out of stock

2

BEARING (20X27X20)

09263-20041

2
Out of stock

3

SPACER, PIVOT OUTER

61251-13F00

2
Out of stock

4

SEAL, OIL (20X27X5)

09286-20001

2

$4.70

In stock

5

SPACER, PIVOT INNER

61252-13F01

2
Out of stock

6

SEAL, OIL (20X27X5)

09286-20001

2

$4.70

In stock

7

SHAFT, PIVOT

61211-38301

1
Out of stock

8

1

$1.97

In stock

9

1

$3.91

In stock

10

BUFFER, CHAIN TOUCH DEFENSE

61273-12F00

1
Out of stock

11

1

$2.56

In stock

12

SPACER (6.5X9X3.8)

09180-06255

1
Out of stock

13

TORQUE LINK, REAR (BLACK)

64311-26F00-019

1
Out of stock

14

BOLT, FRONT (8X22.5)

09111-08012

1

$4.12

In stock

15

BOLT, REAR (8X26.5)

09111-08013

1

$3.00

In stock

16

WASHER, LOCK

09162-08008

2

$2.23

In stock

17

NUT

09140-08008

2

$1.55

In stock

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

19

ADJUSTER, CHAIN

61410-12F00

2
Out of stock

20

PLATE, CHAIN ADJUSTER

61421-38200

2
Out of stock

21

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock
