Description

Price

1

RELAY ASSY,STAR | Includes Item(s) 2 - 3 This part replaces 31800-47E00.

31800-47E01

$76.17

2

COVER

31861-47E00

$18.23

3

FUSE (20A)

09481-20102

$3.23

4

SCREW (6X8)

09128-06013

$1.28

5

WIRE, STARTER MOTOR LEAD | Includes Item(s) 6

33810-13F00

Unavailable

6

CAP, STARTER MOTOR LEAD

31861-48B10

$7.40

7

RECTIFIER ASSY, REGULATOR

32800-29B00

$309.67

8

BOLT This part replaces 02162-06203.

02162-0620C

$1.80

9

IGNITER ASSY

32900-13F00

$762.07

10

NUT This part replaces 08316-10063.

08316-1006B

$2.57

11

COIL ASSY,IGNIT This part replaces 33410-13F00.

33410-13F01

$138.23

12

SPACER (6.2X12X14)

09180-06174

$5.27

13

BOLT

01500-05353

Unavailable

14

CAP, SPARK PLUG

33510-45010

$24.59

15

SEAL, SPARK PLUG

33541-38210

$4.60

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

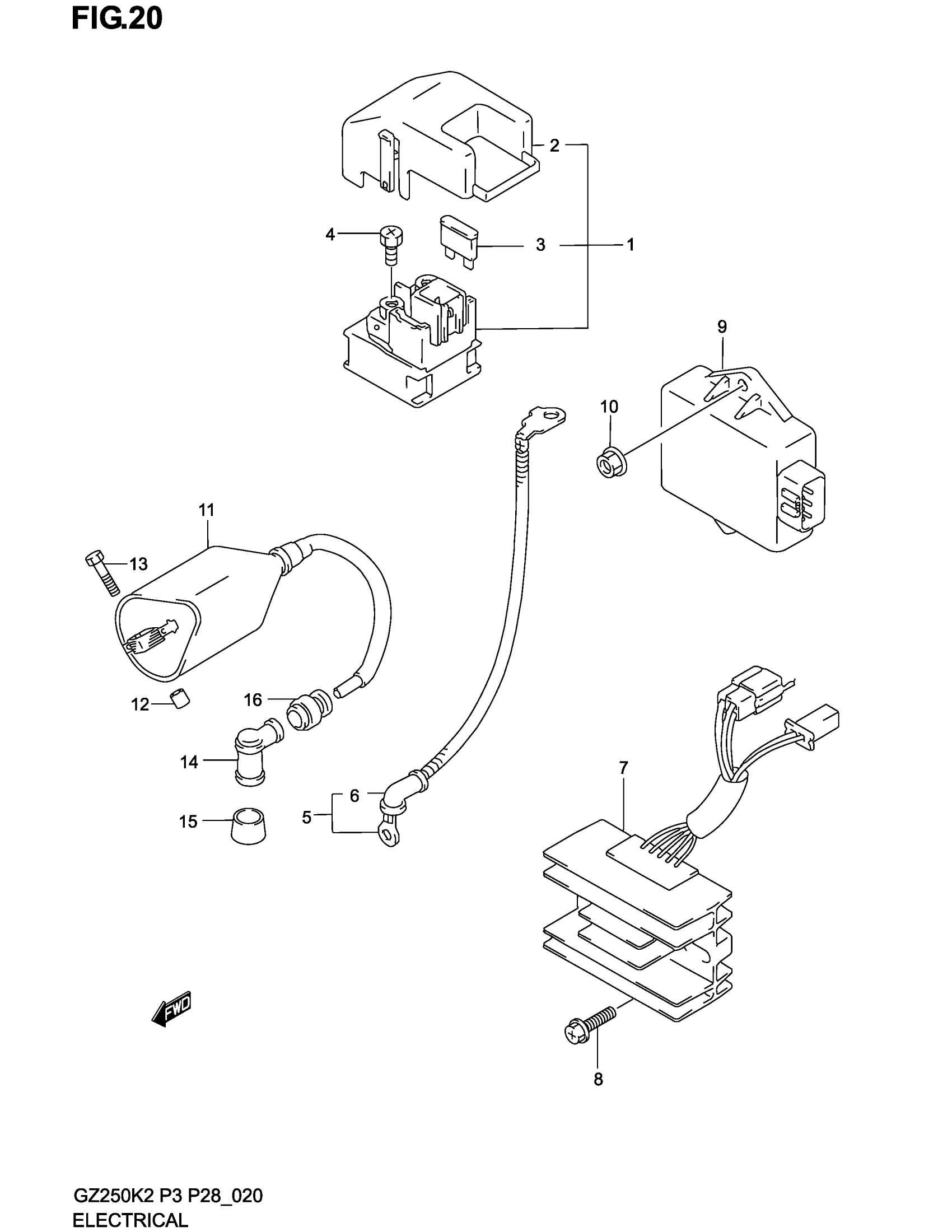

Suzuki GZ250 (2002) ELECTRICAL Diagram
