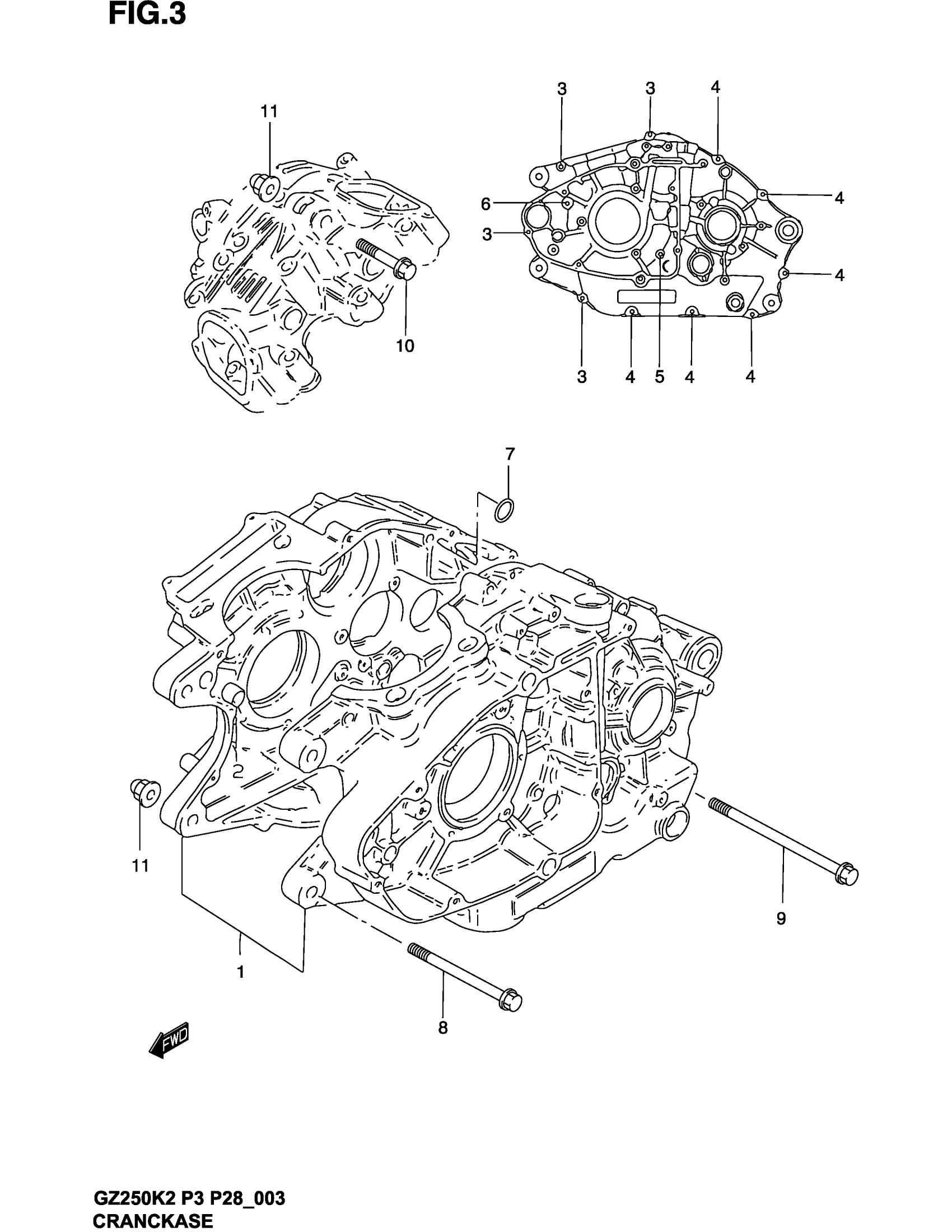

Suzuki GZ250 (2002) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11300-38864.

11300-38868

Unavailable

2

PIN

04211-13189

$2.25

3

BOLT

01547-06357

$2.09

4

BOLT

01547-06457

$2.39

5

BOLT This part replaces 01547-06553.

01547-0655B

$2.80

6

BOLT This part replaces 01547-06603.

01547-0660B

$2.95

7

O RING (D:1.9,ID:9.8) This part replaces 09280-10015.

09280-10016

$3.13

8

BOLT (8X67)

09103-08037

$5.27

9

BOLT (8X100)

09103-08070

$5.24

10

BOLT (8X50)

09103-08081

$4.03

11

NUT This part replaces 08319-31088.

08319-3108A

$2.38
