Description

Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-12F00

Unavailable

2

SEAL, LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BOLT (10X40)

01550-10407

$5.10

5

HEAD, STEERING STEM

51311-12F00

Unavailable

6

BOLT (8X45)

01550-08457

$2.63

7

WASHER

51356-43530

$7.40

8

BOLT

51352-43530

$17.40

9

CAP

09250-06011

$2.53

10

BOLT (8X25)

07130-08257

$3.14

11

HOLDER, HANDLE UPPER

56211-12F00

Unavailable

12

HOLDER, HANDLE LOWER

56221-12F00

Unavailable

13

BOLT, HOLDER This part replaces 51451-27431.

51451-12FA0

$4.47

14

NUT

08319-31107

$2.73

15

COVER, FRONT FORK UNDER

51871-12F00

Unavailable

16

SCREW (6X16)

09139-06088

$4.18

17

BEARING (25X47X15)

09267-25009

$56.72

18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

19

NUT, STEM

51631-28000

$19.60

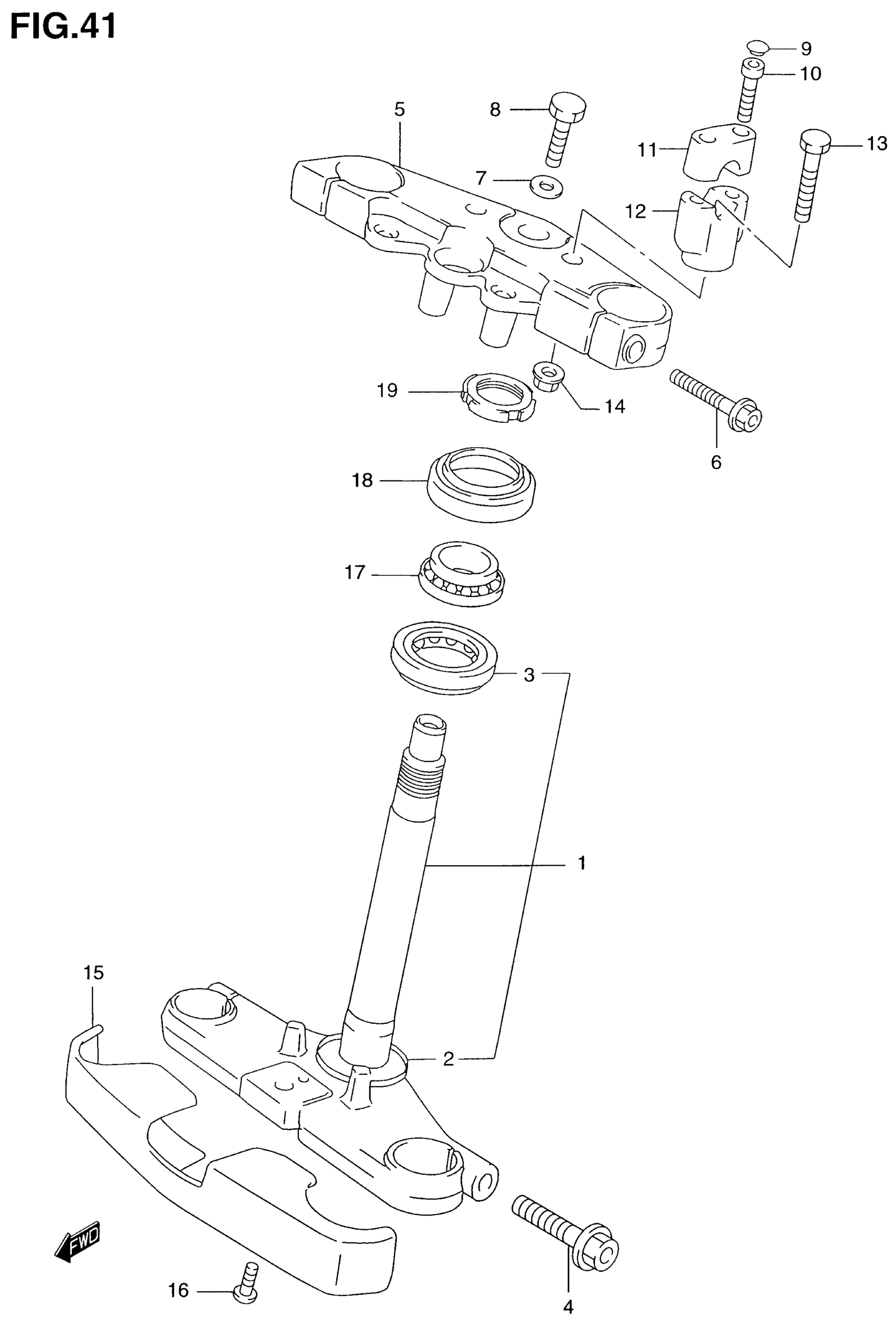

Suzuki GZ250 (2001) STEERING STEM Diagram

STEM, STEERING | Includes Item(s) 2 - 3

SEAL, LOWER

BEARING (30X55X17)

BOLT (10X40)

HEAD, STEERING STEM

BOLT (8X45)

WASHER

BOLT

CAP

BOLT (8X25)

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOWER

BOLT, HOLDER This part replaces 51451-27431.

NUT

COVER, FRONT FORK UNDER

SCREW (6X16)

BEARING (25X47X15)

SEAL,DUST This part replaces 51643-40502.

NUT, STEM
