Description

Price

1

PIPE, EXHAUST LH

14160-13F00

$247.38

2

GASKET, EXHAUST PIPE

14181-37D00

$4.18

3

CLAMP, EXHAUST PIPE LH

14182-37D00

$19.32

4

BOLT

09103-06203

$3.58

5

MUFFLER This part replaces 14305-13F00-H01.

14305-13F02-H01

$388.60

6

BOLT This part replaces 01580-10303.

01580-1030A

$5.00

7

WASHER, KNUCKLE END | MODEL X This part replaces 08322-01103.

08322-0110A

$1.83

8

CONNECTOR, MUFFLER

14771-19B00

$16.05

9

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80

10

COVER, MUFFLER This part replaces 14780-13F00.

14780-13F01

Unavailable

11

CLAMP, MUFFLER COVER

14785-38301

$8.32

12

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

13

SCREW This part replaces 02112-76103.

02112-7610A

$1.58

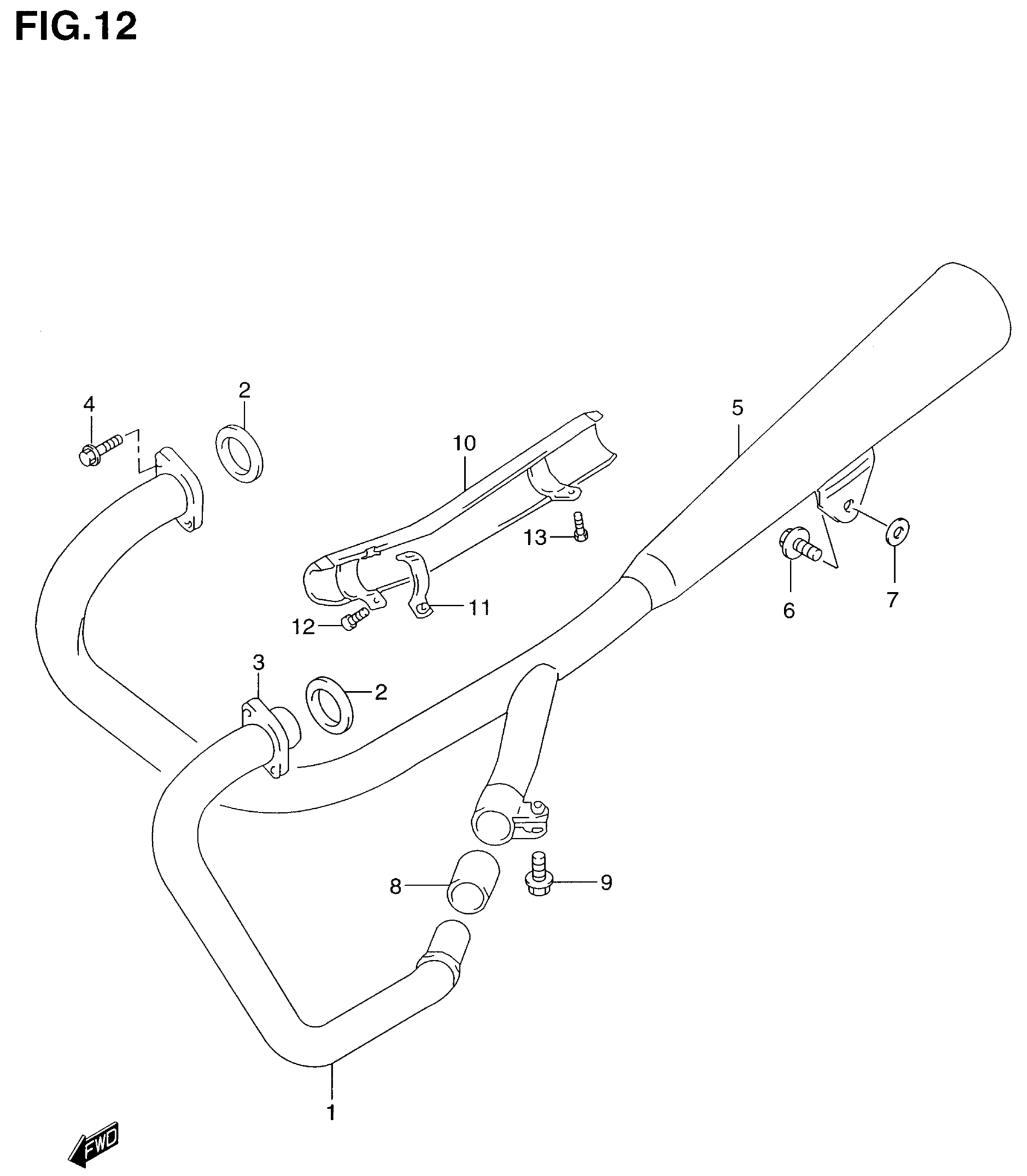

Suzuki GZ250 (2001) MUFFLER Diagram
