Description

Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$27.81

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 9

57300-32C10

$84.38

3

LEVER, ADJUST

57420-32C00

$27.47

4

BOLT, LEVER

57437-32C01

$9.70

5

NUT This part replaces 08319-31063.

08319-3106A

$2.09

6

KNOCKER

57430-32C10

$68.13

7

SPRING

57438-32C00

$6.40

8

BOLT, KNOCKER

57431-17C00

$6.80

9

NUT This part replaces 08316-10063.

08316-1006B

$2.57

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$36.79

11

SCREW

57465-17C00

$2.37

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.93

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 21 This part replaces 57500-25D00.

57500-25D04

$35.15

14

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$17.20

15

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.34

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.38

17

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.67

18

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.27

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

20

.SWITCH,CLUTCH

57560-05A00

$11.63

21

SCREW This part replaces 02122-03208.

02122-0320A

$2.01

22

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.11

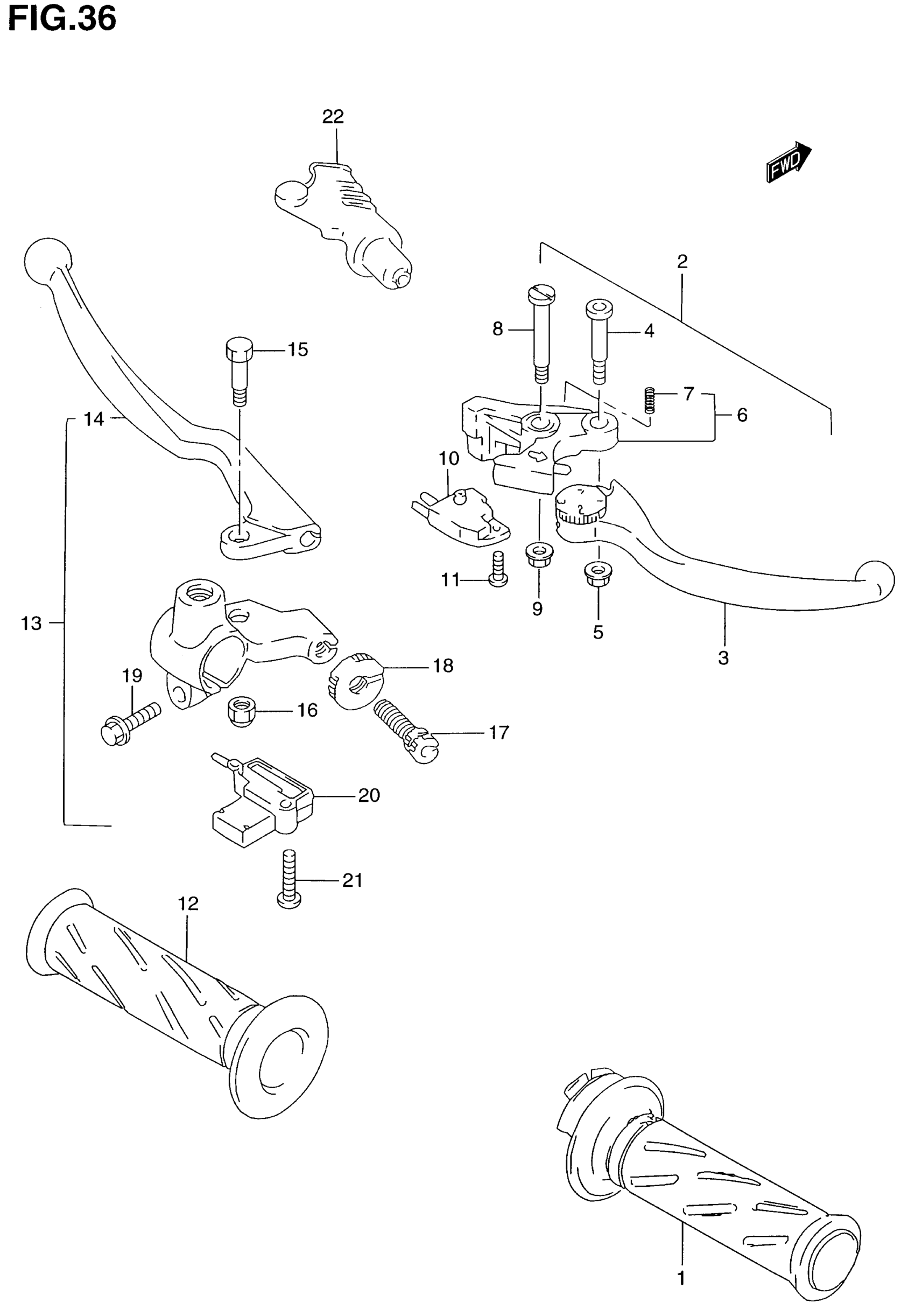

Suzuki GZ250 (2001) HANDLE LEVER Diagram
