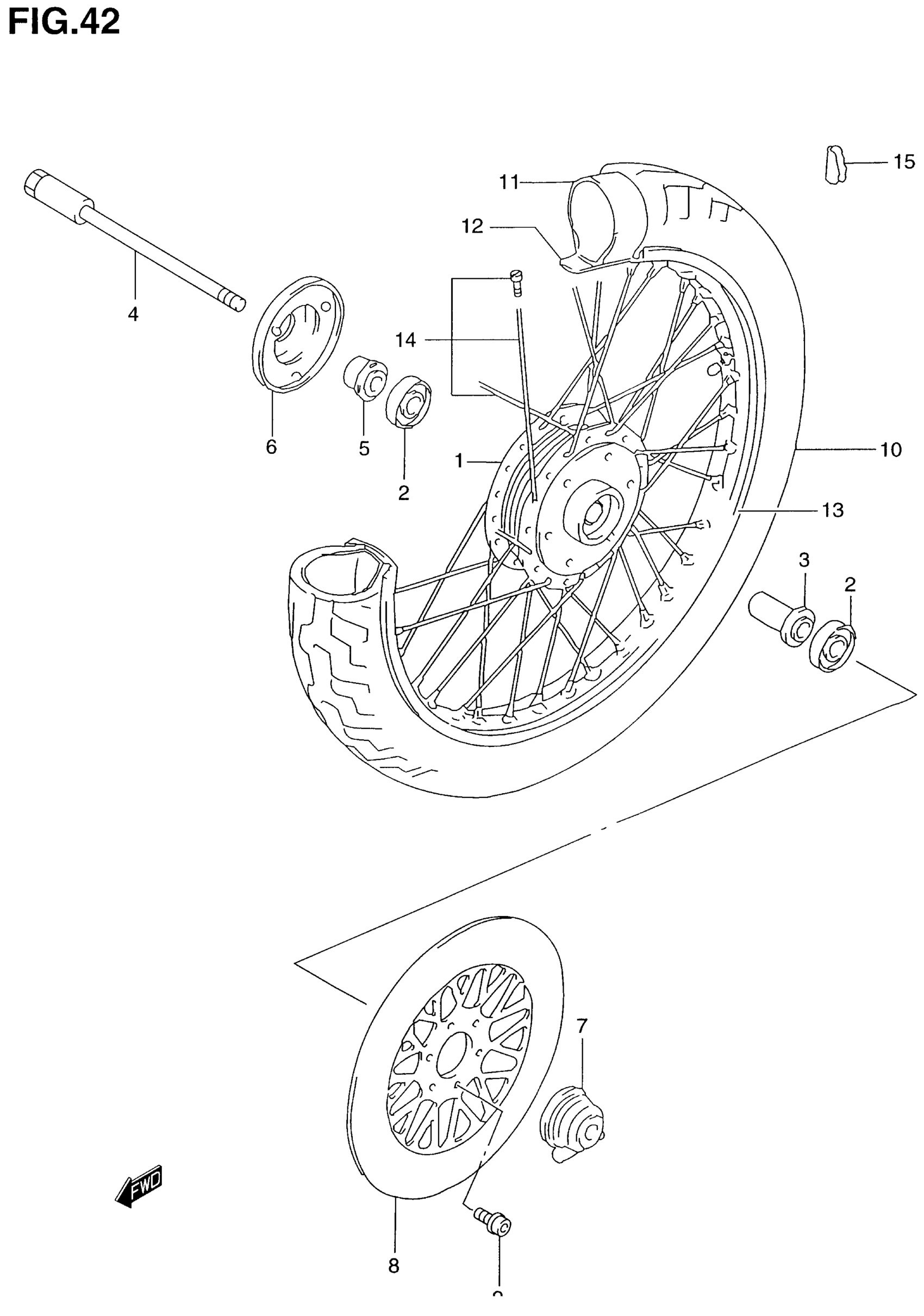

Suzuki GZ250 (2001) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-47021

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER, BEARING

54730-18400

$23.08

4

AXLE, FRONT

54711-12F00

$117.67

5

SPACER, BEARING RH

54740-18410

$23.08

6

COVER, HUB RH

54871-45000

$10.15

7

BOX ASSY,SPEEDO This part replaces 54600-12F00.

54600-12F01

$121.62

8

DISC, FRONT BRAKE LH

59221-12F00

Unavailable

9

BOLT (8X30)

09106-08131

$4.53

10

TIRE, FRONT (110/90-16) DUNLOP

55100-12F00

Unavailable

11

TUBE ASSY, WHEEL INNER

55200-12F00

Unavailable

12

PROTECTOR, INNER TUBE

55261-12F00

Unavailable

13

RIM, FRONT WHEEL (16XMT2.50) This part replaces 55311-12F00.

55311-12F01

Unavailable

14

SPOKE SET, FRONT WHEEL

55320-12F00

Unavailable

15

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$8.73

15

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$9.95
