2017 Suzuki GW250L7 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2017 Suzuki GW250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

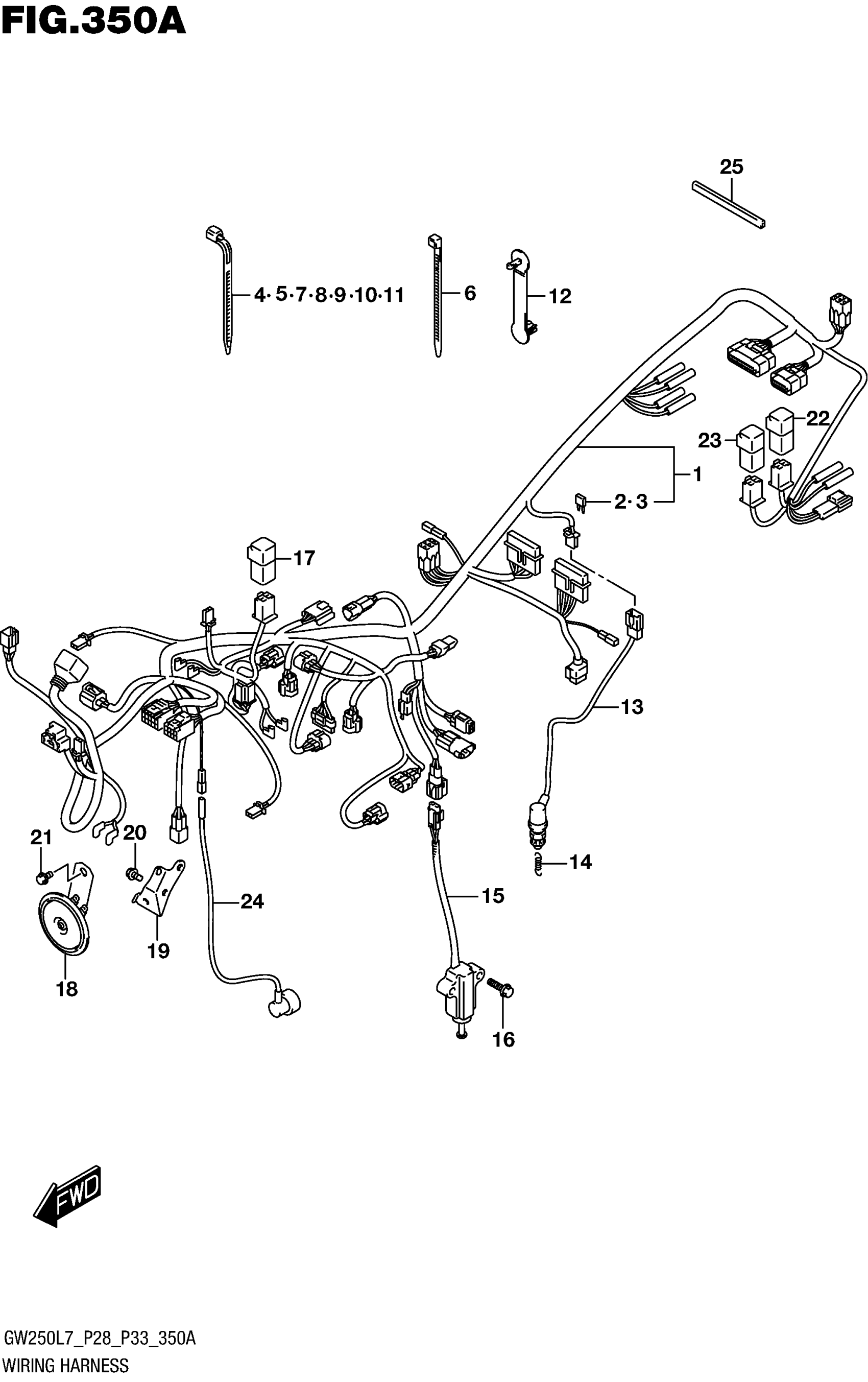

2017 Suzuki GW250L7 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-48HB1

1
Out of stock

2

.FUSE (10A)

09481-10501

4
Out of stock

3

.FUSE (15A)

09481-15501

2
Out of stock

4

CLAMP, WIRING HARNESS

36990-32G10

3
Out of stock

5

CLAMP, WIRING HARNESS

36990-32G20

2
Out of stock

6

CLAMP (L:250)

09407-25402

1
Out of stock

7

CLAMP (L:235)

09407-25401

1
Out of stock

8

CLAMP,WIRING HARNESS (L:200)

36990-48H00

1
Out of stock

9

CLAMP,WIRING HARNESS

36990-45H30

—
Out of stock

10

CLAMP (L:190)

09407-19401

2
Out of stock

11

CLAMP,WIRING HARNESS (L:95)

36990-32G30

1
Out of stock

12

CLAMP, WIRING HARNESS

36990-48H10

1
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-48H10

—
Out of stock

14

SPRING

09443-06046

1
Out of stock

15

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

1
Out of stock

16

BOLT

01550-0620B

2
Out of stock

17

RELAY ASSY | FOR SIDE STAND

38740-33G00

1
Out of stock

18

HORN ASSY This part replaces 38500-48H30.

38500-48H31

1
Out of stock

19

PLATE,HORN

38590-48H10

—
Out of stock

20

BOLT

01550-0812B

1
Out of stock

21

BOLT

01550-0612B

1
Out of stock

22

RELAY ASSY | FOR FUEL PUMP

38740-33G00

1
Out of stock

23

RELAY ASSY | FOR FAN MOTOR

38740-33G00

1
Out of stock

24

WIRE, OIL PRESSURE SWITCH LEA

36851-48H01

1
Out of stock

25

PROTECTOR, WIRING HARNESS

36618-48H00

1
Out of stock
← Turnsignal Lamp Footrest →
