2017 Suzuki GW250L7 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2017 Suzuki GW250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

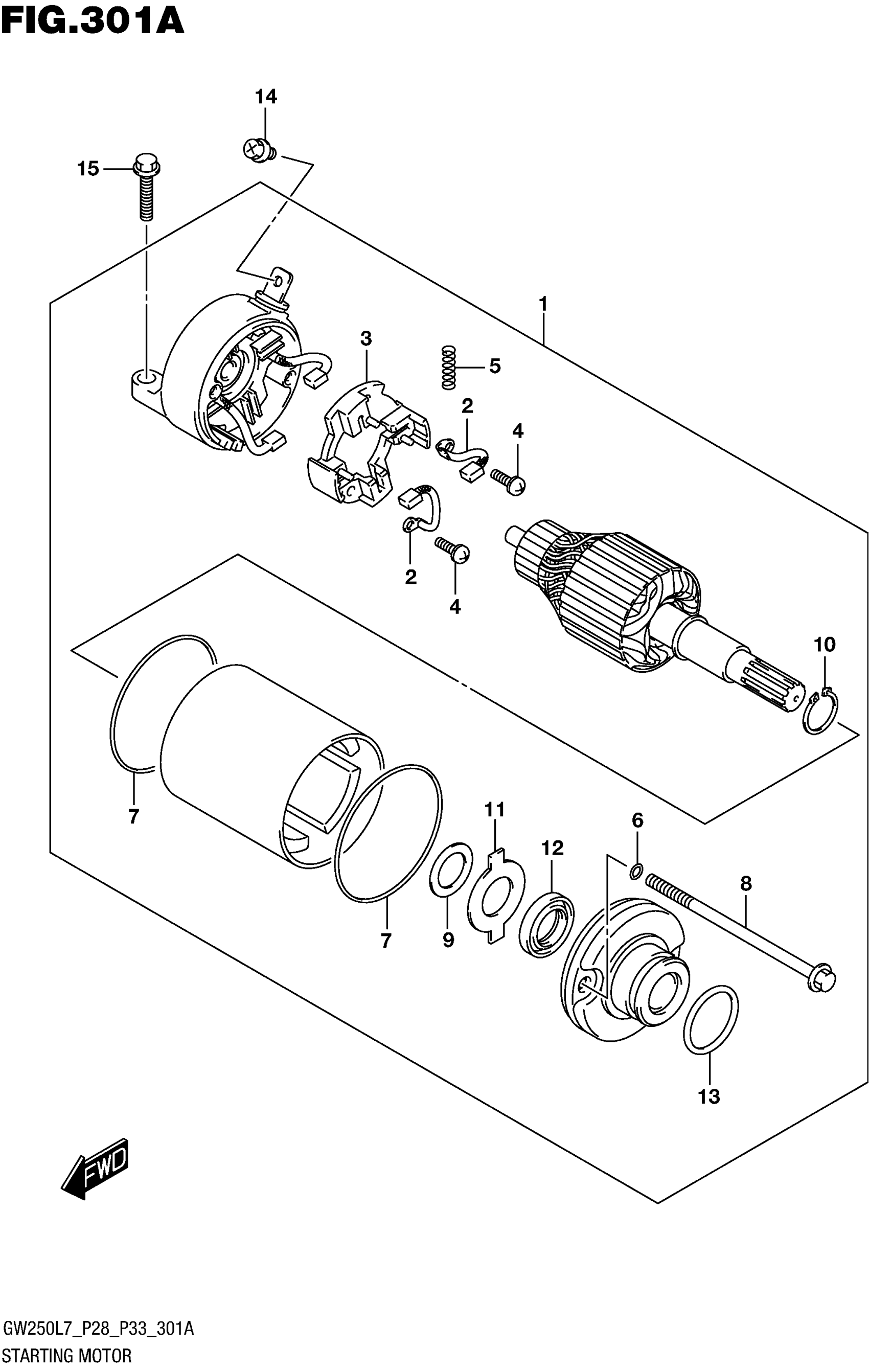

2017 Suzuki GW250L7 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING This part replaces 31100-48H00.

31100-48H01

1
Out of stock

2

.BRUSH

31132-25H00

2
Out of stock

3

.BRUSH HOLDER

31133-25H00

1
Out of stock

4

.SCREW, WASHER

31134-25H00

2
Out of stock

5

.SPRING

31135-25H00

4
Out of stock

6

.O RING

31156-25H00

2
Out of stock

7

.O RING

31264-05530

2
Out of stock

8

.BOLT, THROUGH

31281-25H00

2
Out of stock

9

.SHIM

31361-055A0

1
Out of stock

10

.SNAP RING

31361-05530

1
Out of stock

11

.PLATE LOCK

31361-25H00

1
Out of stock

12

.OIL SEAL

31153-05530

1
Out of stock

13

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

14

SCREW (5X8)

09137-05004

1
Out of stock

15

BOLT

01547-0625A

2
Out of stock
