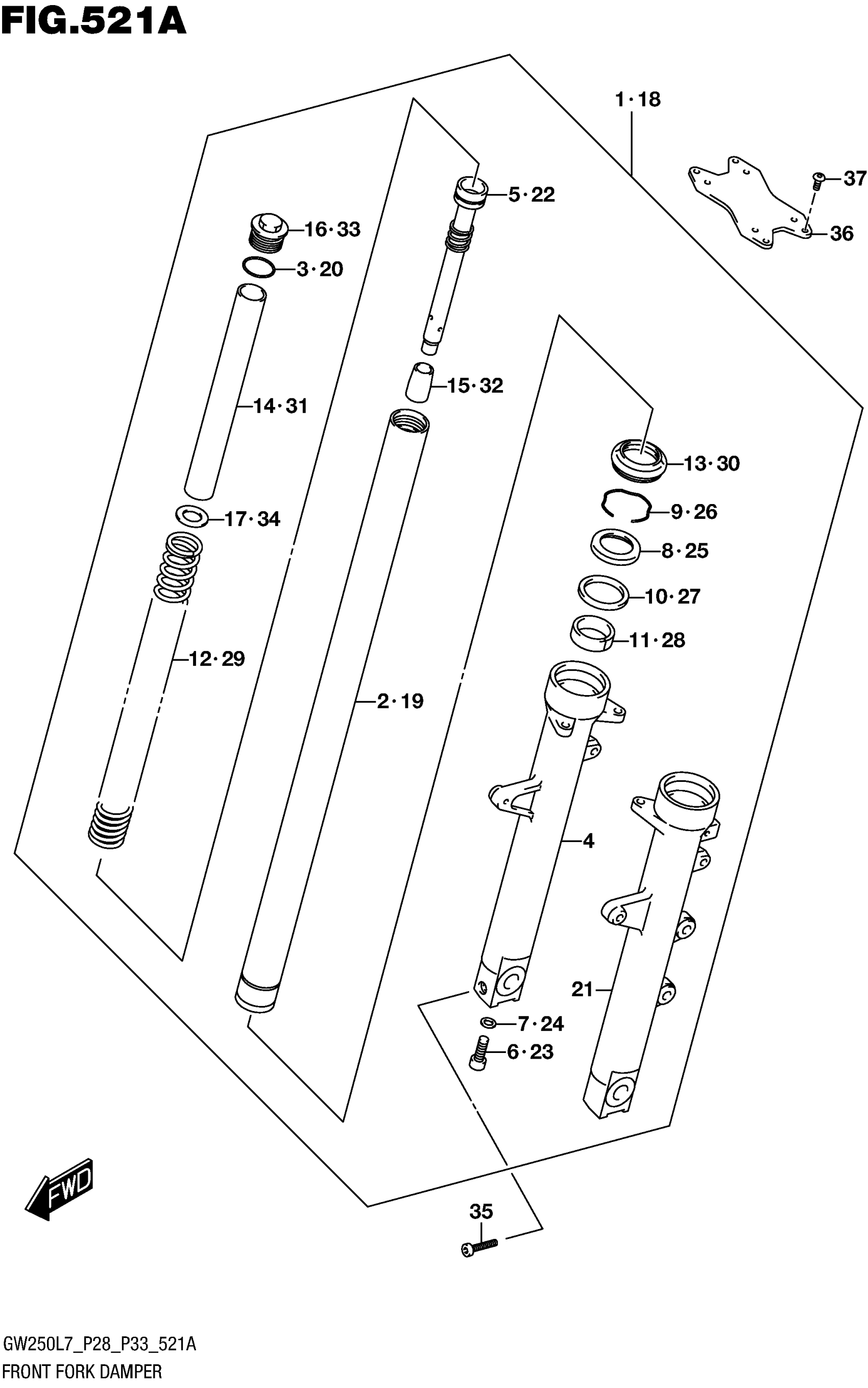

Suzuki GW250L7 (2017) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-48H40

Unavailable

2

.TUBE, INNER

51110-48H40

$263.15

3

.O RING

51117-38260

$4.28

4

.TUBE, OUTER

51130-48H10

Unavailable

5

.CYLINDER

51146-48H00

Unavailable

6

.BOLT

51147-05H00

$6.10

7

.GASKET

51148-41310

$2.14

8

.OIL SEAL

51153-26F00

$28.53

9

.RING, STOPPER

51156-40301

$4.63

10

.WASHER

51158-48H00

$3.92

11

.METAL, SLIDE

51167-01D00

$11.89

12

.SPRING

51171-48H00

Unavailable

13

.SEAL, DUST

51173-48H00

$27.88

14

.SPACER

51176-48H00

Unavailable

15

.PIECE, OIL LOCK

51195-48H00

Unavailable

16

.CAP

51351-48H00

$131.63

17

.WASHER

51356-48H00

$10.62

18

DAMPER ASSY, FRONT FORK LH

51104-48H40

Unavailable

19

.TUBE, INNER

51110-48H40

$263.15

20

.O RING

51117-38260

$4.28

21

.TUBE, OUTER

51140-48H10

Unavailable

22

.CYLINDER

51146-48H00

Unavailable

23

.BOLT

51147-05H00

$6.10

24

.GASKET

51148-41310

$2.14

25

.OIL SEAL

51153-26F00

$28.53

26

.RING, STOPPER

51156-40301

$4.63

27

.WASHER

51158-48H00

$3.92

28

.METAL, SLIDE

51167-01D00

$11.89

29

.SPRING

51171-48H00

Unavailable

30

.SEAL, DUST

51173-48H00

$27.88

31

.SPACER

51176-48H00

Unavailable

32

.PIECE, OIL LOCK

51195-48H00

Unavailable

33

.CAP

51351-48H00

$131.63

34

.WASHER

51356-48H00

$10.62

35

BOLT

51328-48H00

Unavailable

36

STABILIZER,FR

51471-48H00

Unavailable

37

SCREW (6X16)

09139-06030

$3.33
