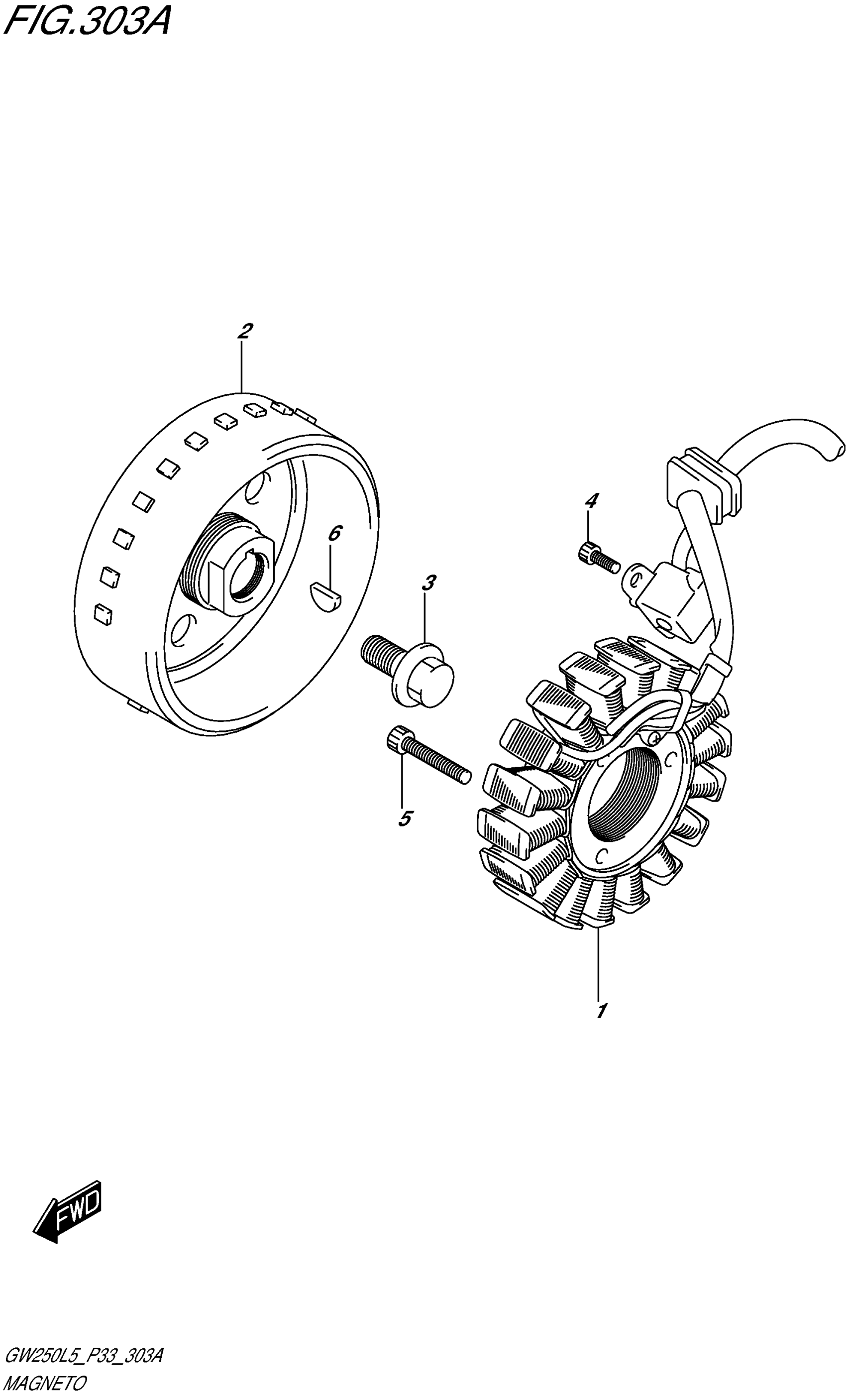

Find the part on the Magneto diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GW250L5 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY,MAG This part replaces 32101-48H00.

32101-48H01

1
Out of stock

2

ROTOR ASSY

32102-48H00

1
Out of stock

3

BOLT,MAGNETO ROTOR

32491-48H00

1
Out of stock

4

BOLT

07130-0512A

2
Out of stock

5

BOLT

07130-0630A

3
Out of stock

6

KEY

08341-31039

1
Out of stock
