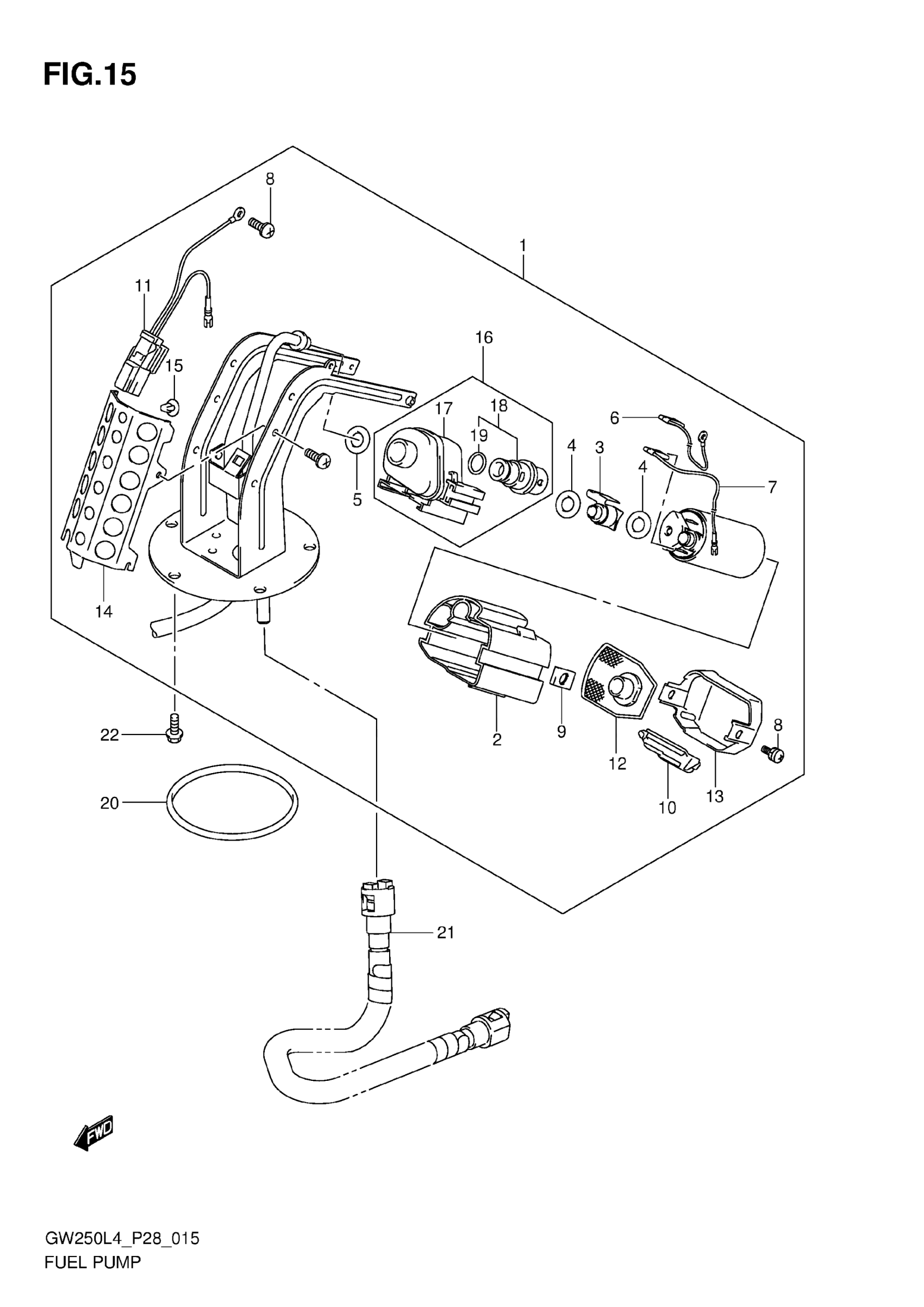

Suzuki GW250L4 (2014) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-48H01.

15100-48H02

$552.20

2

CUP

15111-18H00

$47.88

3

JOINT

15112-05H00

$31.73

4

O RING

15113-05H00

$18.81

5

O RING

15113-35F00

$8.15

6

WIRE, EARTH

15114-05H01

Unavailable

7

WIRE, LEAD

15115-05H01

Unavailable

8

SCREW

15116-10F00

$6.30

9

STOPPER

15117-05H00

$8.52

10

COVER, CUP

15118-18H00

$34.65

11

HARNESS, GAUGE

15246-18H01

$80.77

12

STRAINER

15420-48H00

Unavailable

13

COVER, DUST

15426-48H00

Unavailable

14

GUARD

15581-48H00

Unavailable

15

STOPPER

15582-18H00

Unavailable

16

REGULATOR ASSY, FUEL

15610-48H00

$210.87

17

FILTER

15410-48H00

Unavailable

18

REGULATOR

15610-48H10

Unavailable

19

O RING

15113-48H00

$19.15

20

O-RING

15201-48H00

$24.30

21

HOSE,FUEL

15810-48H00

Unavailable

22

BOLT

07120-0612A

$2.50
