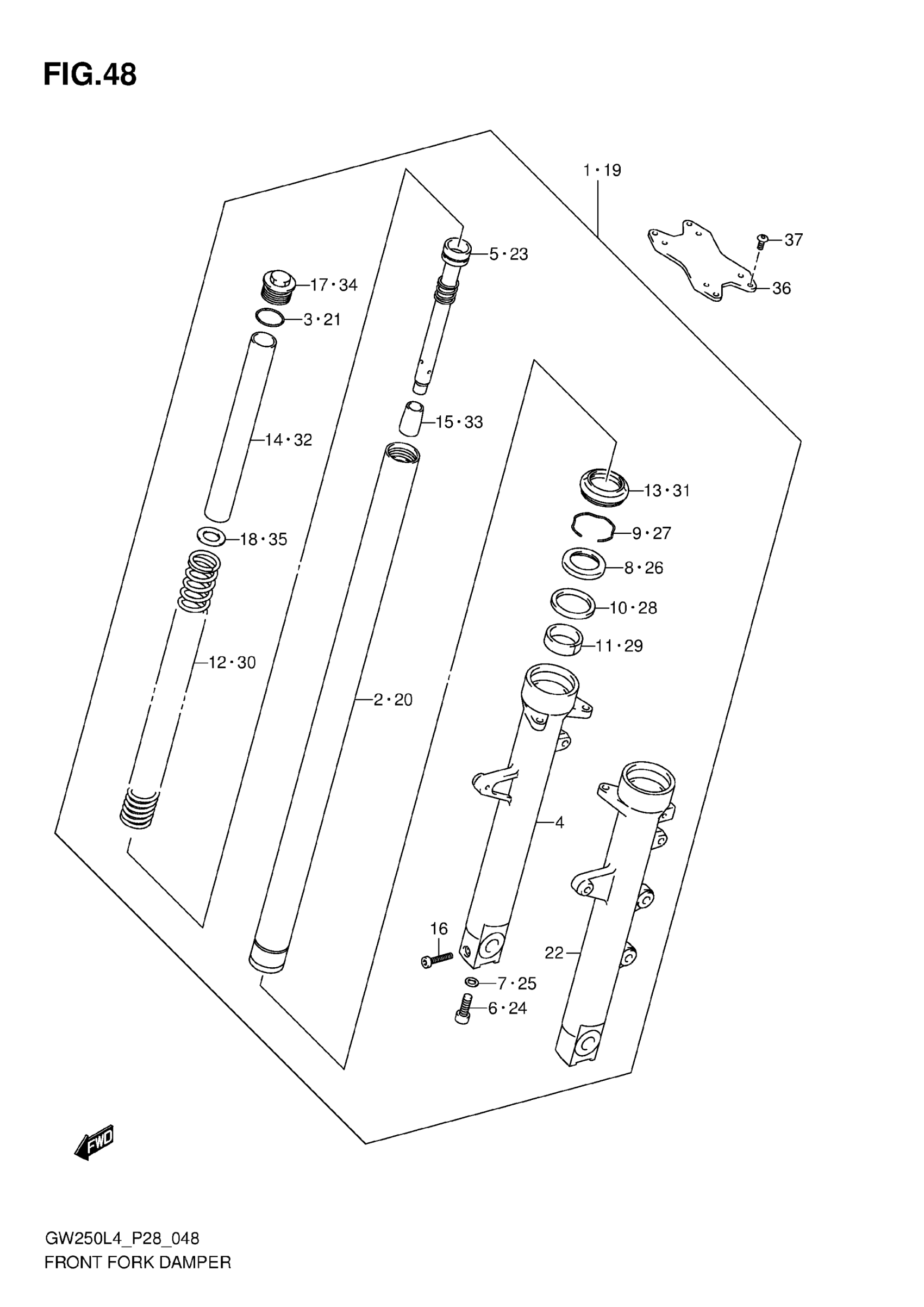

Suzuki GW250L4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-48H40

Unavailable

2

TUBE, INNER

51110-48H40

$263.15

3

O RING

51117-38260

$4.28

4

TUBE, OUTER

51130-48H10

Unavailable

5

CYLINDER

51146-48H00

Unavailable

6

BOLT

51147-05H00

$6.10

7

GASKET

51148-41310

$2.14

8

OIL SEAL

51153-26F00

$28.53

9

RING, STOPPER

51156-40301

$4.63

10

WASHER

51158-48H00

$3.92

11

METAL, SLIDE

51167-01D00

$11.89

12

SPRING

51171-48H00

Unavailable

13

SEAL, DUST

51173-48H00

$27.88

14

SPACER

51176-48H00

Unavailable

15

PIECE, OIL LOCK

51195-48H00

Unavailable

16

BOLT

51328-48H00

Unavailable

17

CAP

51351-48H00

$131.63

18

WASHER

51356-48H00

$10.62

19

DAMPER ASSY, FRONT FORK LH

51104-48H40

Unavailable

20

TUBE, INNER

51110-48H40

$263.15

21

O RING

51117-38260

$4.28

22

TUBE, OUTER

51140-48H10

Unavailable

23

CYLINDER

51146-48H00

Unavailable

24

BOLT

51147-05H00

$6.10

25

GASKET

51148-41310

$2.14

26

OIL SEAL

51153-26F00

$28.53

27

RING, STOPPER

51156-40301

$4.63

28

WASHER

51158-48H00

$3.92

29

METAL, SLIDE

51167-01D00

$11.89

30

SPRING

51171-48H00

Unavailable

31

SEAL, DUST

51173-48H00

$27.88

32

SPACER

51176-48H00

Unavailable

33

PIECE, OIL LOCK

51195-48H00

Unavailable

34

CAP

51351-48H00

$131.63

35

WASHER

51356-48H00

$10.62

36

STABILIZER,FR

51471-48H00

Unavailable

37

SCREW (6X16)

09139-06030

$3.33
