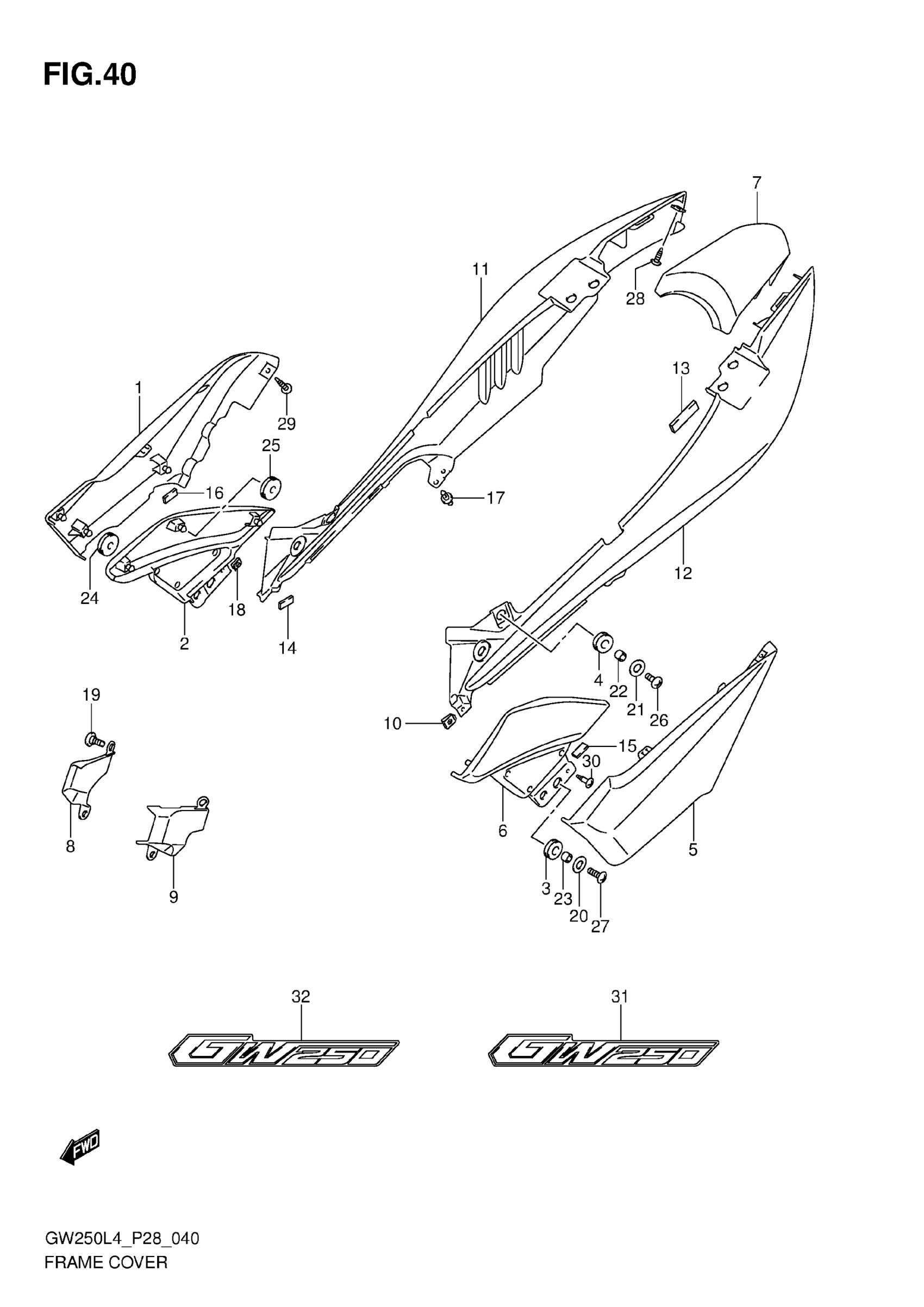

Suzuki GW250L4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-48H00-YKV

$94.25

2

COVER, FRAME FRONT RH (SILVER/BLACK)

47121-48H00-AB4

$78.35

3

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$2.02

4

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$2.02

5

COVER, FRAME LH (BLACK)

47211-48H00-YKV

Unavailable

6

COVER, FRAME FRONT LH (SILVER/BLACK)

47221-48H00-AB4

$78.35

7

COVER, FRAME UPPER CENTER (BLACK)

47311-48H00-YAY

Unavailable

7

COVER, FRAME UPPER CENTER (RED)

47311-48H00-PDD

Unavailable

8

COVER, FRAME HEAD RH

47351-48H00

Unavailable

9

COVER, FRAME HEAD LH

47361-48H00

$5.47

10

NUT

47399-48H00

$2.68

11

COVER, FRAME UPPER RH (BLACK)

47831-48H00-YAY

$310.70

11

COVER, FRAME UPPER RH (RED)

47831-48H00-PDD

$300.38

12

COVER,FRAME UPR This part replaces 47841-48H00-YAY.

47841-48H01-YAY

$187.80

12

COVER, FRAME UPPER LH (RED)

47841-48H00-PDD

$293.05

13

CUSHION, COVER UPPER REAR

47845-48H00

$4.20

14

CUSHION, COVER UPPER

47846-48H00

$2.22

15

CUSHION, COVER FRONT

47846-48H00

$2.22

16

CUSHION, FRAME COVER

47846-48H00

$2.22

17

CLIP, COVER UPPER

48292-32GH0

$2.93

18

NUT, COVER FRAME FRONT

93162-37G00

Unavailable

19

SCREW, FRAME HEAD COVER

47353-48H00

$3.92

20

WASHER (6.5X20X1.2)

09160-06077

$1.89

21

WASHER (6.5X20X1.2)

09160-06077

$1.89

22

SPACER (6.5X10X7)

09180-06283

$1.89

23

SPACER (6.5X10X7)

09180-06283

$1.89

24

CUSHION

09320-08018

$2.80

25

CUSHION

09320-08018

$2.80

26

SCREW

02142-0620A

$1.38

27

SCREW

02142-0620A

$1.38

28

SCREW

03541-0516A

$1.37

29

SCREW

03541-0516A

$1.37

30

SCREW

03541-0516A

$1.37

31

EMBLEM, FRAME COVER RH (SILVER/GRAY)

68131-48H50-AFT

$7.77

32

EMBLEM, FRAME COVER LH (SILVER/GRAY)

68141-48H50-AFT

$7.77
