1986 Suzuki GV1200GLF Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

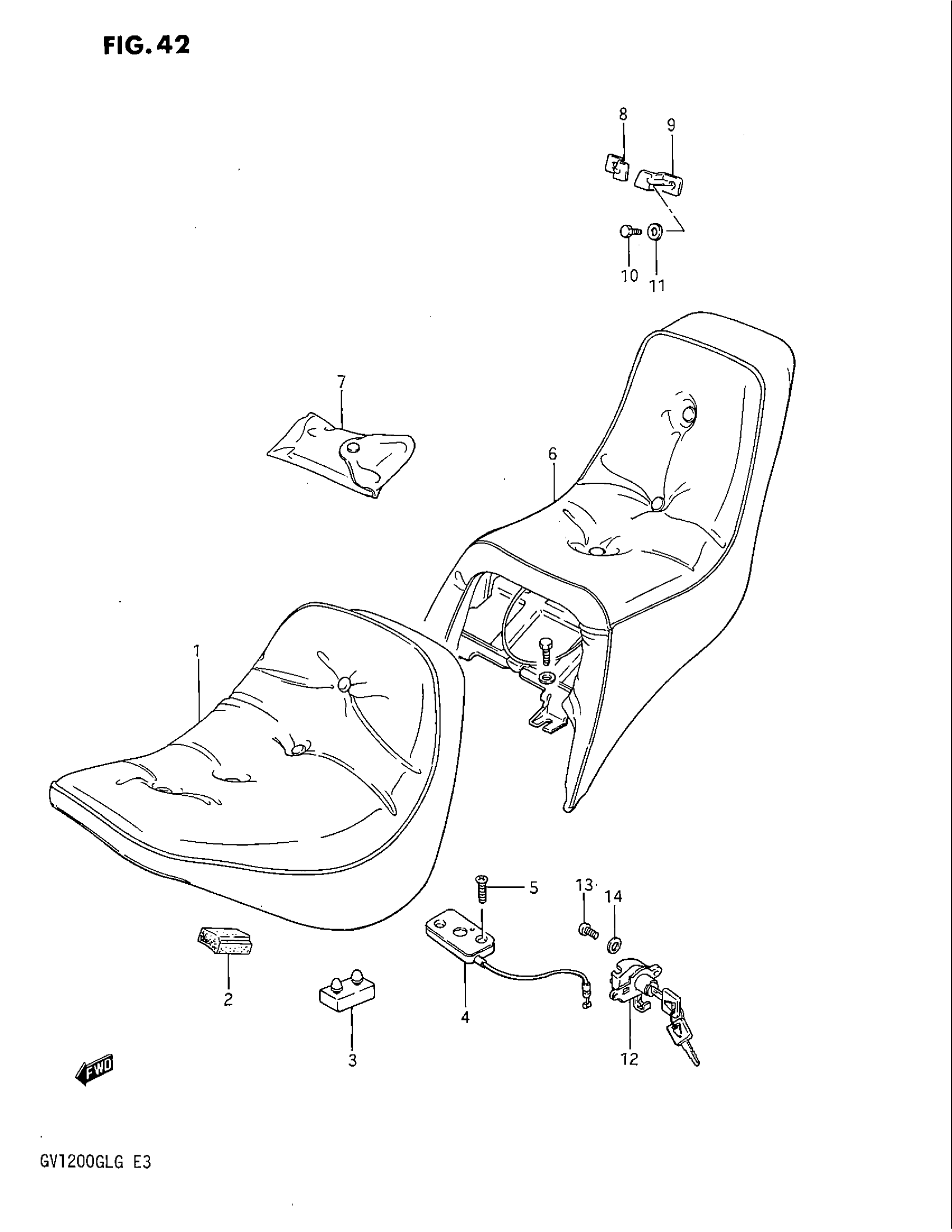

1986 Suzuki GV1200GLF Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET (BLACK) | MODEL F This part replaces 45100-05A00-59N.

45100-05A01-59N

1
Out of stock

1

SEAT SET (BLACK) | MODEL F2/G; Includes Item(s) 2 - 3

45100-05A01-59N

1
Out of stock

2

CUSHION

45562-01400

2
Out of stock

3

CUSHION

09321-08012

4
Out of stock

4

BRACKET, SEAT SUPPORT

45220-05A00

1
Out of stock

5

SCREW This part replaces 02122-06256.

02122-0625A

2
Out of stock

6

SEAT SET, PILLION (BLACK) | MODEL F This part replaces 45300-05A00-59N.

45300-05A10-59N

1
Out of stock

6

SEAT SET, PILLION (BLACK) | MODEL F2 This part replaces 45300-05A01-59N.

45300-05A10-59N

1
Out of stock

6

SEAT SET, PILLION (BLACK) | MODEL G

45300-05A10-59N

1
Out of stock

7

TOOL ASSY This part replaces 09800-00272.

09800-21068

1
Out of stock

8

PLATE, PILLION SEAT SUPPORT R

45270-05A00

1
Out of stock

9

PLATE, PILLION SEAT SUPPORT L

45280-05A00

1
Out of stock

10

BOLT This part replaces 01107-06166.

01500-0616A

2
Out of stock

11

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 45700-05A00-KEY.

45700-07850

1
Out of stock

13

SCREW This part replaces 02112-06126.

02112-0612A

2
Out of stock

14

.WASHER This part replaces 08322-21066.

08322-0106B

2
Out of stock
