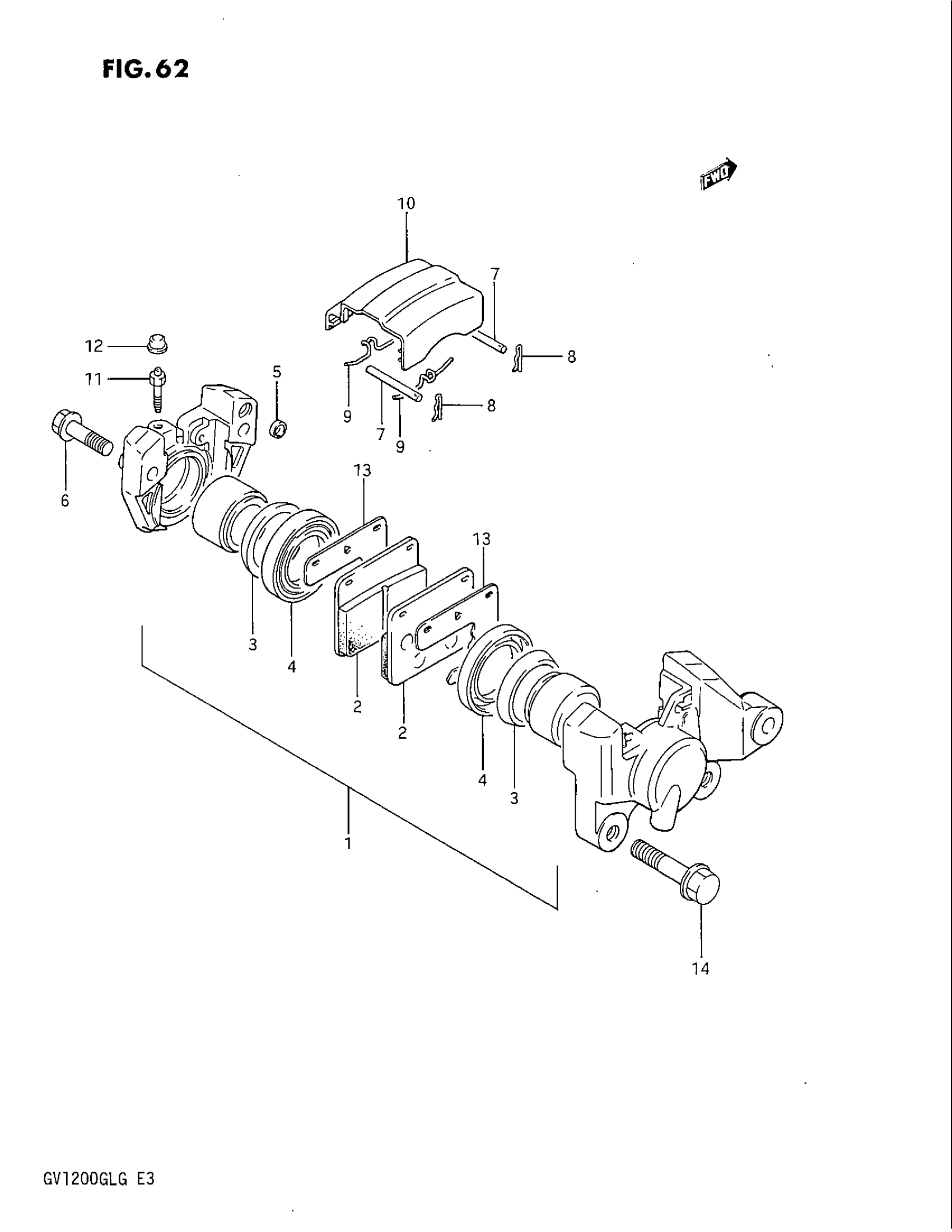

Suzuki GV1200GLF (1986) REAR CALIPER Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-05A02.

69100-05A03

Unavailable

1

PISTON & PAD SET

69100-05810

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 69130-05A00.

69130-05A01

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

4

BOOT, PISTON

69108-45000

$8.37

5

SEAL

69107-34200

$10.25

6

BOLT, HOUSING

59145-16700

$9.97

7

PIN

69141-45000

$5.09

8

.CLIP, PAD PIN

69142-45000

$4.15

9

SPRING

69143-45001

$6.62

10

DUST COVER

69151-45000

$14.09

11

BLEEDER

59121-18410

$8.35

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.94

13

SHIM

69152-45001

$10.00

14

BOLT This part replaces 01517-10305.

01550-1030A

$3.37
