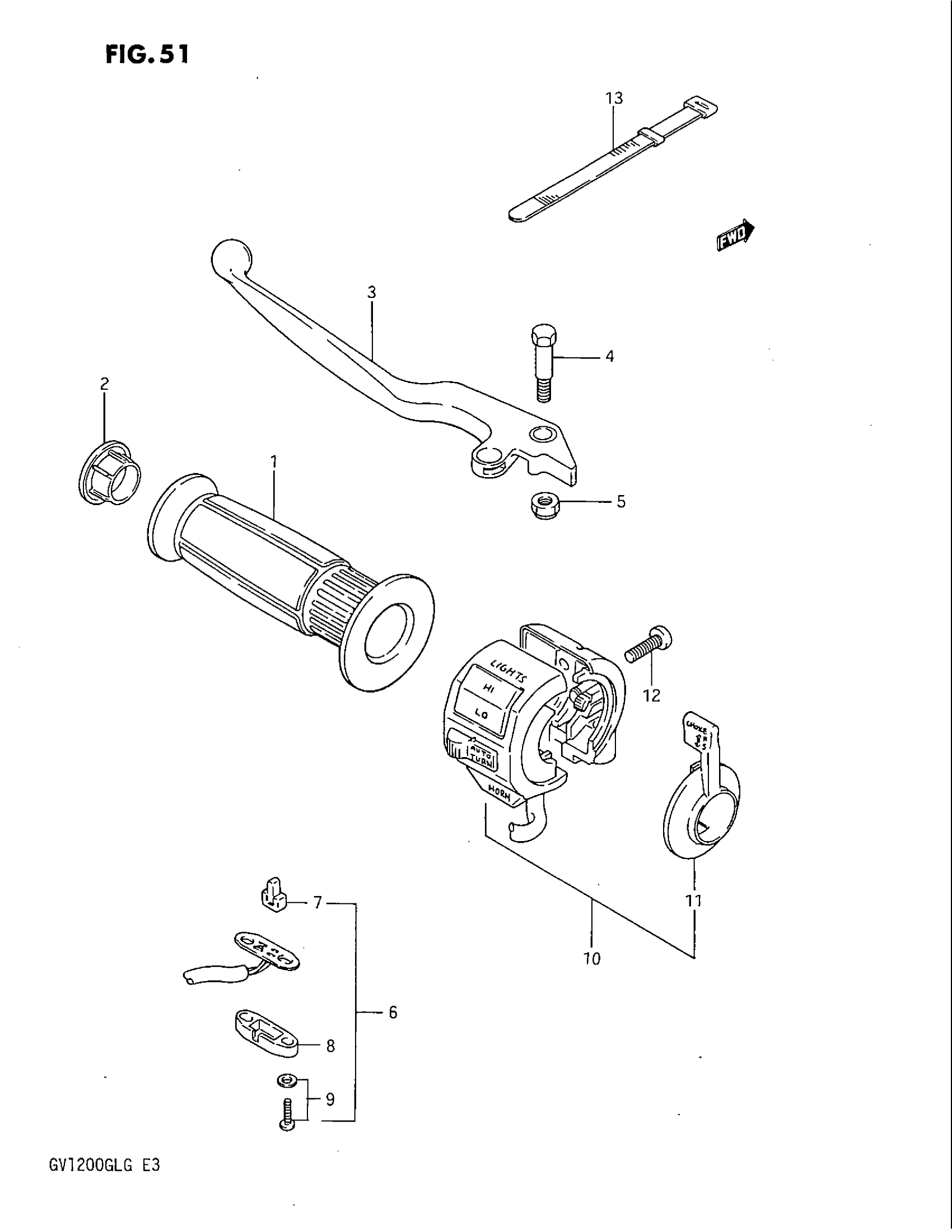

Find the part on the Left Handle Switch diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GV1200GLF Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH

57211-05A00

1
Out of stock

2

CAP

57216-05A00

1
Out of stock

3

LEVER, CLUTCH | Includes Item(s) 4 - 5 This part replaces 57500-08A00.

57621-38A02

1
Out of stock

4

BOLT

57431-05A00

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

SWITCH ASSY, CLUTCH | Includes Item(s) 7 - 9 This part replaces 57560-08A00.

57560-18D10

1
Out of stock

7

HOLDER

57465-18601

1
Out of stock

8

COVER

57481-33010

1
Out of stock

9

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

10

SWITCH ASSY, HANDLE, LH | MODEL F/F2 This part replaces 37400-05A71.

37400-05A72

1
Out of stock

10

SWITCH ASSY, HANDLE, LH | MODEL G; Includes Item(s) 11 - 12

37400-05A72

1
Out of stock

11

LEVER, CHOKE | MODEL F/F2 This part replaces 37571-05A00.

37571-05A71

1
Out of stock

11

LEVER, CHOKE | MODEL G

37571-05A71

1
Out of stock

12

SCREW This part replaces 02112-05205.

02112-0520B

2
Out of stock

13

BAND

09407-12402

2
Out of stock
